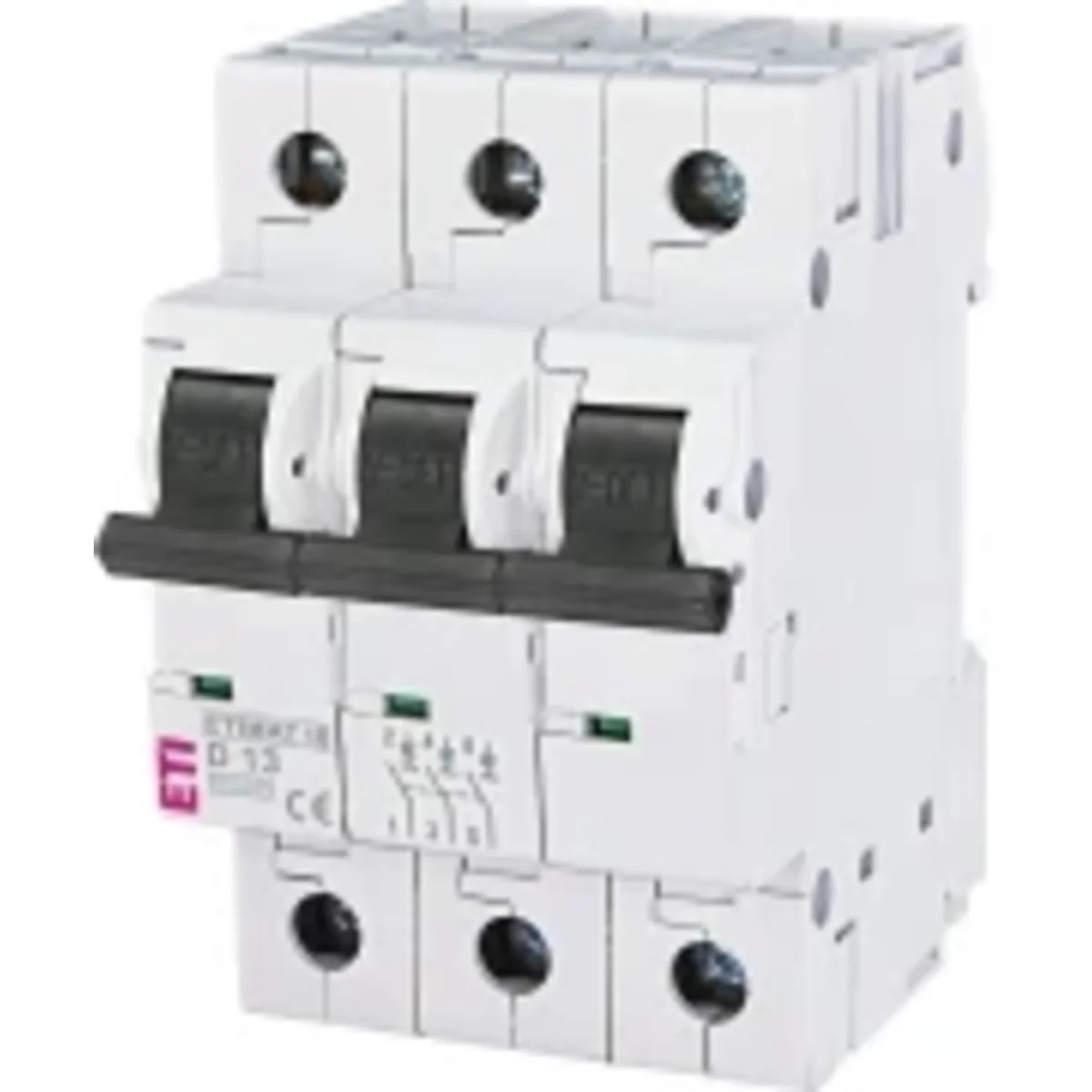

Circuit breaker ETIMAT10 3P 10kA D 13A 002155715

local index:
ABD003ETIP
Catalog No:
002155715
EAN code:
5902047600210
Manufacturer: ETI POLAM
Number of poles: 3
Rated current [A]: 13
Short-circuit current [kA]: 10
Price:
29,77 €
gross / pcs.
(including VAT 23%)
131,15 € gross/kg.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Current circuit breakers are used as protection of electrical installations in residential, public and industrial buildings.

Advantages:
→ high short-circuit capacity,
→ possibility to mount auxiliary contacts,
→ meet the requirements of the main circuit breakers.



Technical data

  • Number of poles
    3
  • Short-circuit current [kA]
    10
  • Weight [g]
    227
  • Rated current [A]
    13
  • Trigger type
    d
  • PKWIU
    27.12.22.0

Other technical data

  • Built-in depth
    68 mm
  • Number of poles (total)
    3
  • Rated current
    13 A
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Release characteristic
    D
  • Number of protected poles
    3
  • Rated insulation voltage Ui
    500 V
  • Voltage type
    Other
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    15 kA
  • Frequency
    50 ... 60 Hz
  • Pollution degree
    3
  • Width in number of modular spacings
    3
  • Ambient temperature during operating
    -25 ... 55 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
