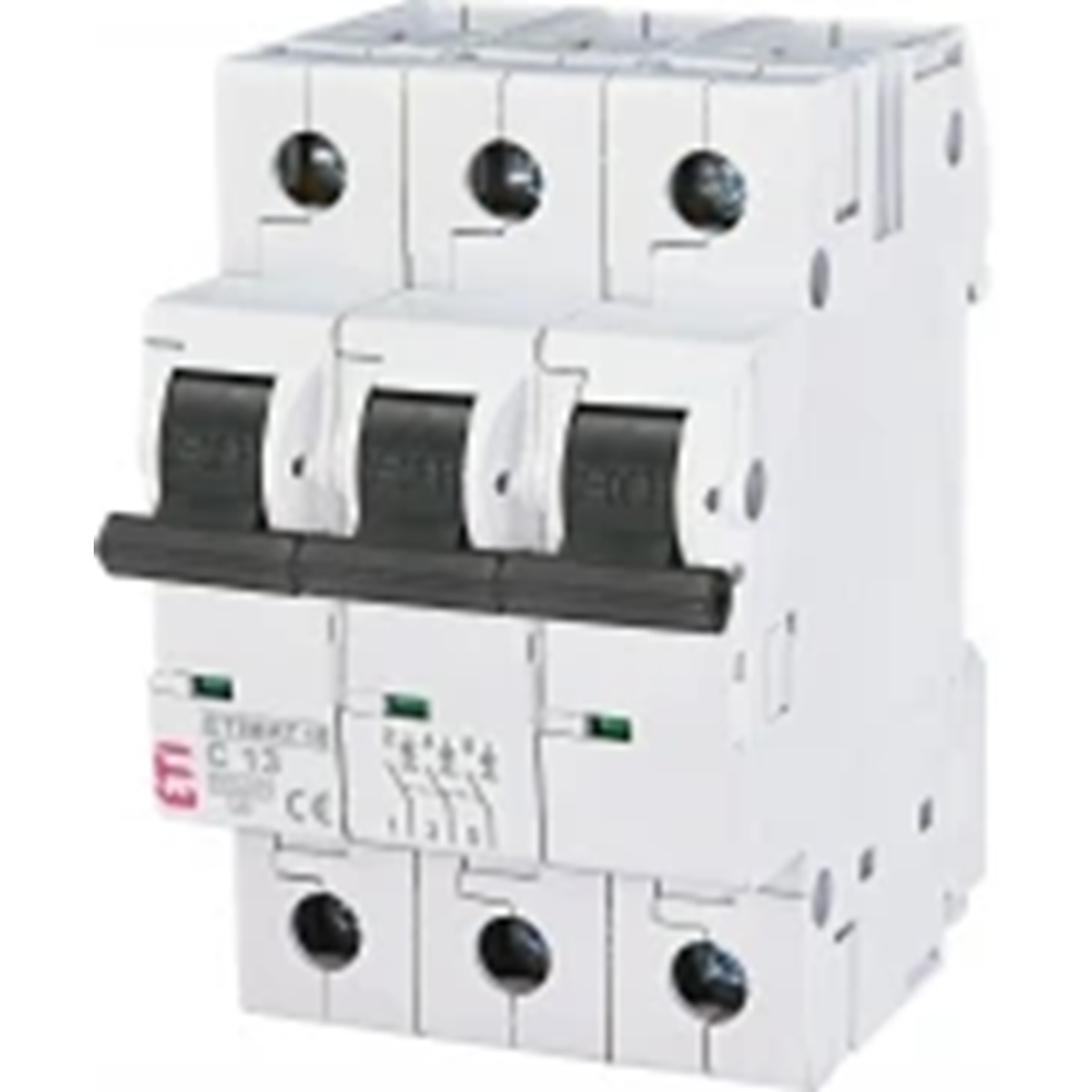

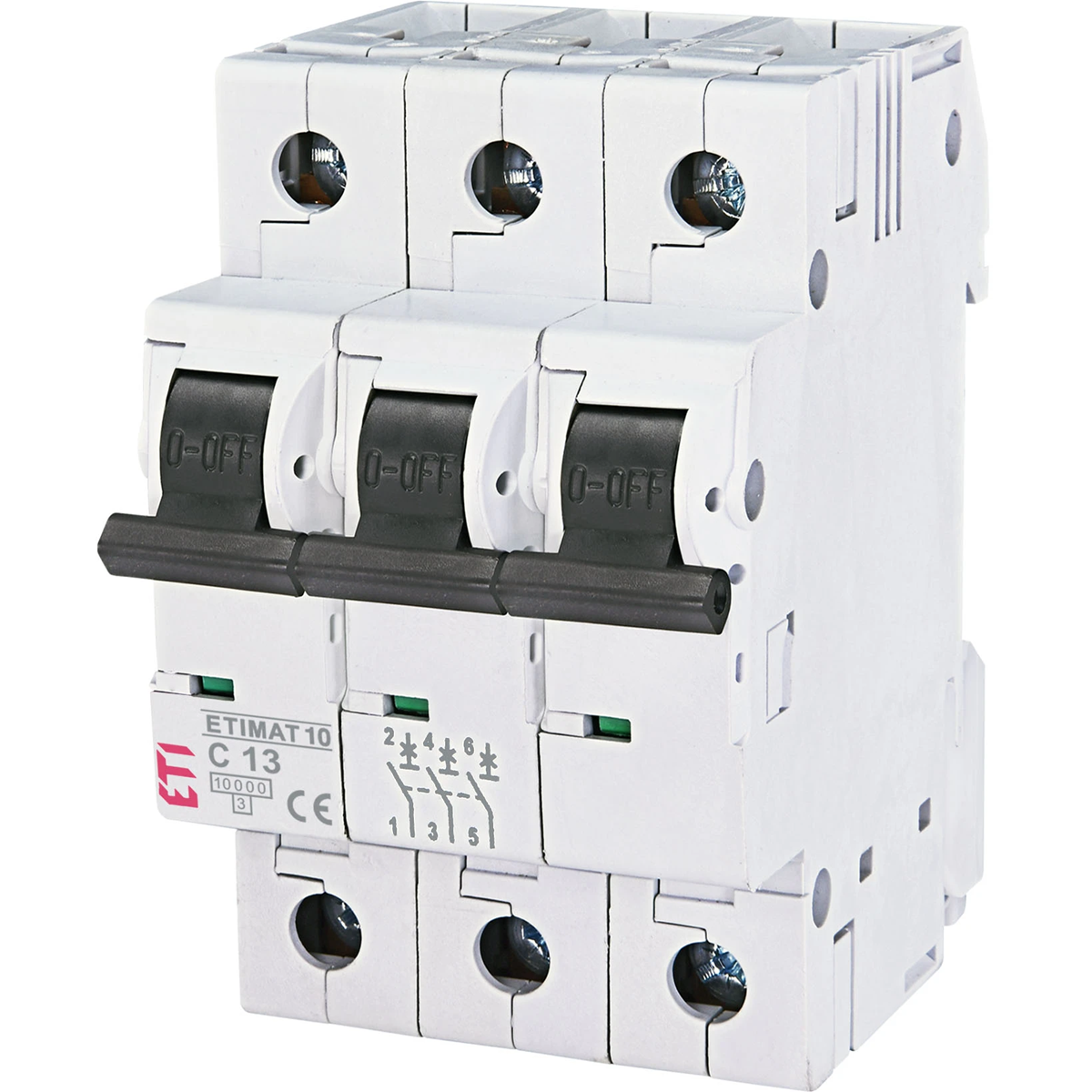

Name: Circuit breaker ETIMAT10 3P 10kA C 13A
Brand: ETI POLAM
SKU: ABC007ETIP
Price: 21.81 PLN

Current circuit breakers are used as protection of electrical installations in residential, public and industrial buildings.

Advantages:
→ high short-circuit capacity,
→ possibility to mount auxiliary contacts,
→ meet the requirements of the main circuit breakers.

Built-in depth

68 mm
Number of poles (total)

3
Rated current

13 A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Current limiting class

3
Pollution degree

3
Width in number of modular spacings

3
Ambient temperature during operating

-25 ... 55 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

C
Number of protected poles

3
Rated insulation voltage Ui

500 V
Voltage type

Other
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Frequency

50 ... 60 Hz
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
