ETI POLAM

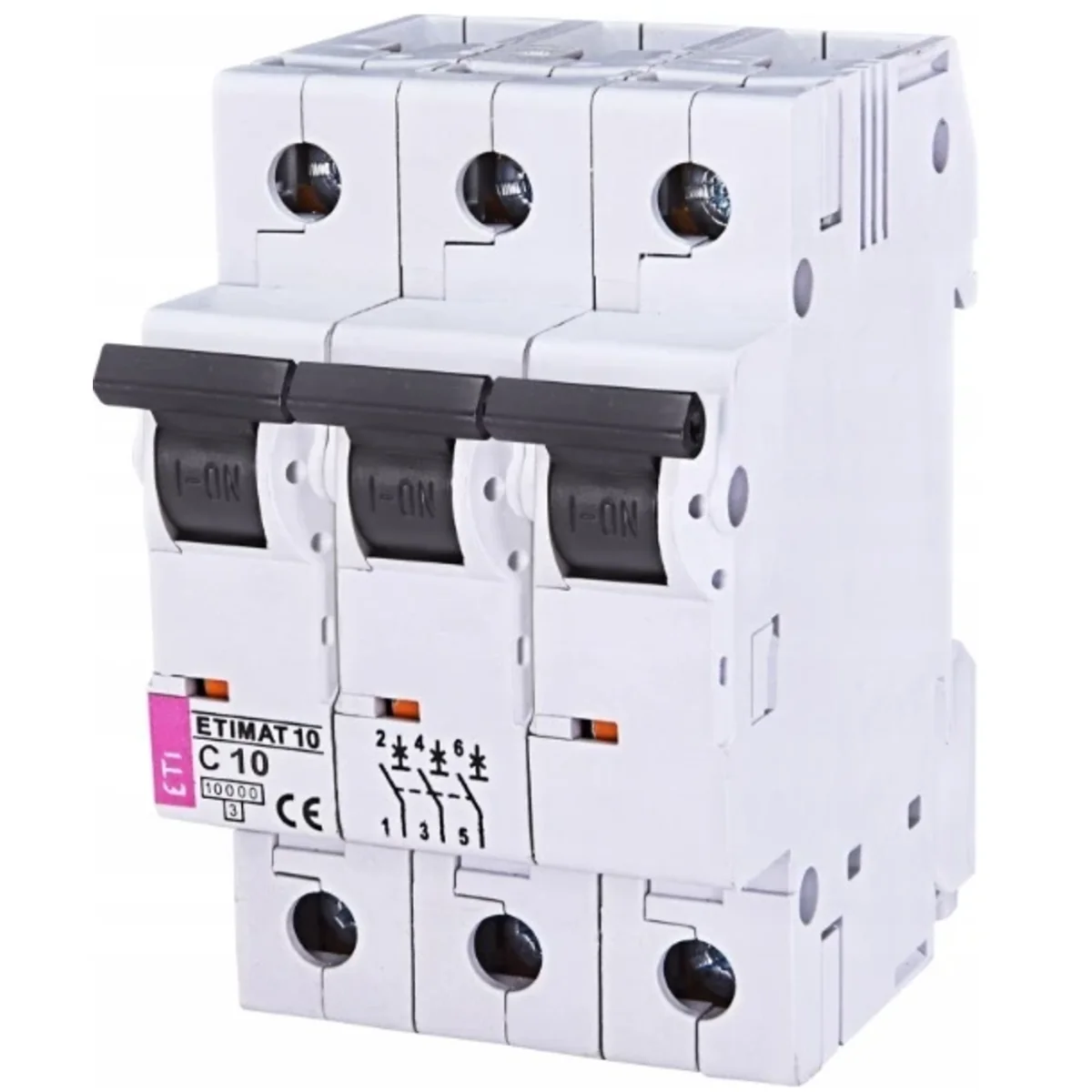

Circuit breaker ETIMAT10 3P 10kA C 10A 002135714

local index:
ABC221ETIP
Catalog No:
002135714
EAN code:
5904722938557
Price:
8,72 €
gross / pcs.
including VAT 23%
Last lowest price:
36,21 € gross
Base price:
35,93 € gross -76%
Availability:
Check availability in branches
In warehouses 6 pcs.
Delivery:
From 3,71 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

ETIMAT10 3P 10kA C 10A - Circuit breaker. Application - Overcurrent circuit breakers are used as protection of electrical installations in residential, public and industrial facilities.

Technical data

  • Characteristic
    c
  • Rated voltage [V]
    400
  • Rated current [A]
    10
  • Mechanical durability
    20 thousand shifts
  • Rated short-circuit capacity [kA]
    10
  • Number of poles
    3
  • Case
    Non-flammable, temperature-resistant material Gray color RAL 7035
  • Working temperature [°C]
    from -25 to +50
  • Weight [g]
    345
  • Insulation voltage [V]
    500

Other technical data

  • Built-in depth
    68 mm
  • Number of poles (total)
    3
  • Rated current
    10 A
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Current limiting class
    3
  • Pollution degree
    3
  • Width in number of modular spacings
    3
  • Ambient temperature during operating
    -25 ... 55 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Release characteristic
    C
  • Number of protected poles
    3
  • Rated insulation voltage Ui
    500 V
  • Voltage type
    Other
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    15 kA
  • Frequency
    50 ... 60 Hz
  • Over voltage category
    3
  • Additional equipment possible
    yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²

Catalog cards, diagrams, certificates

See other products in the category: Circuit breakers with "C" characteristic
