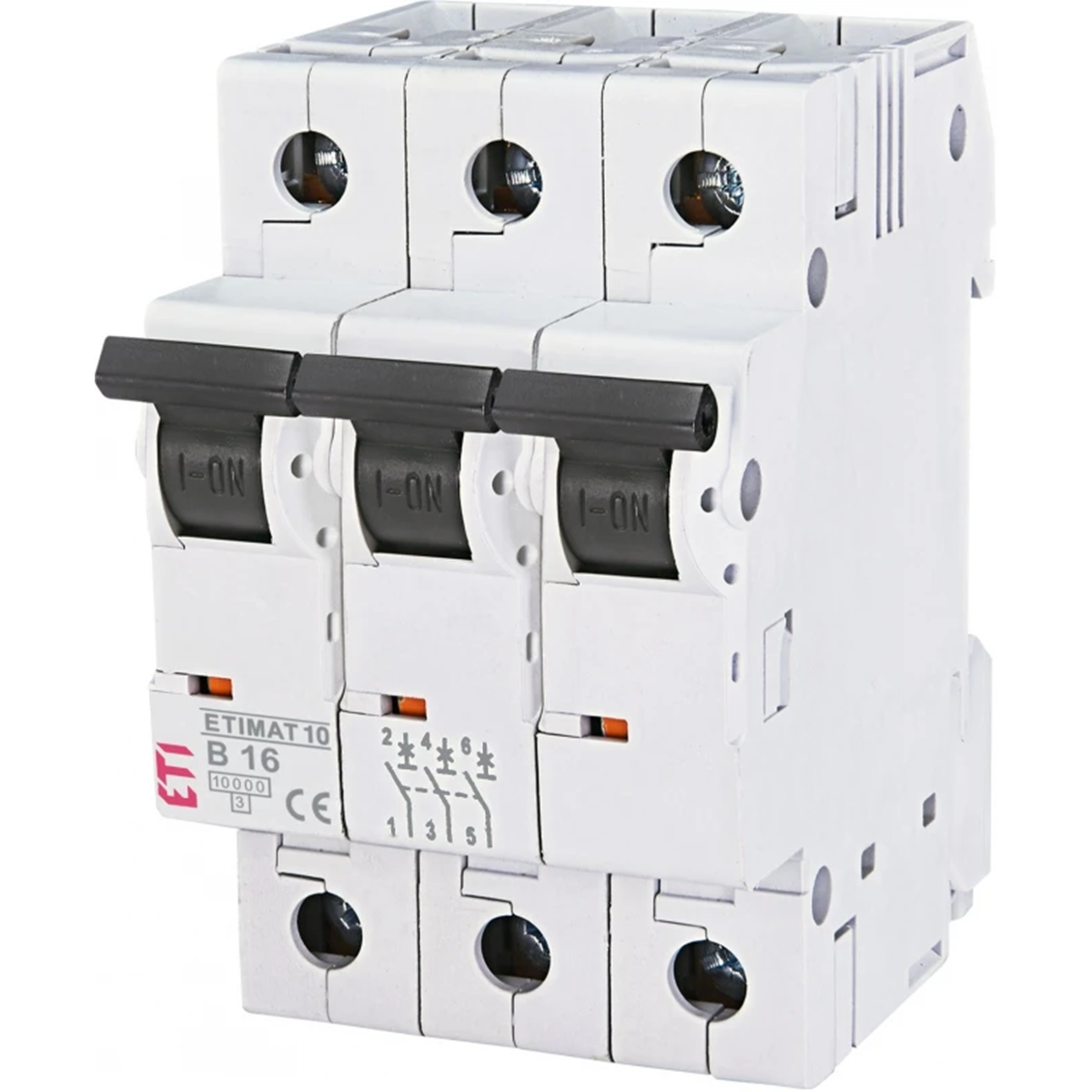

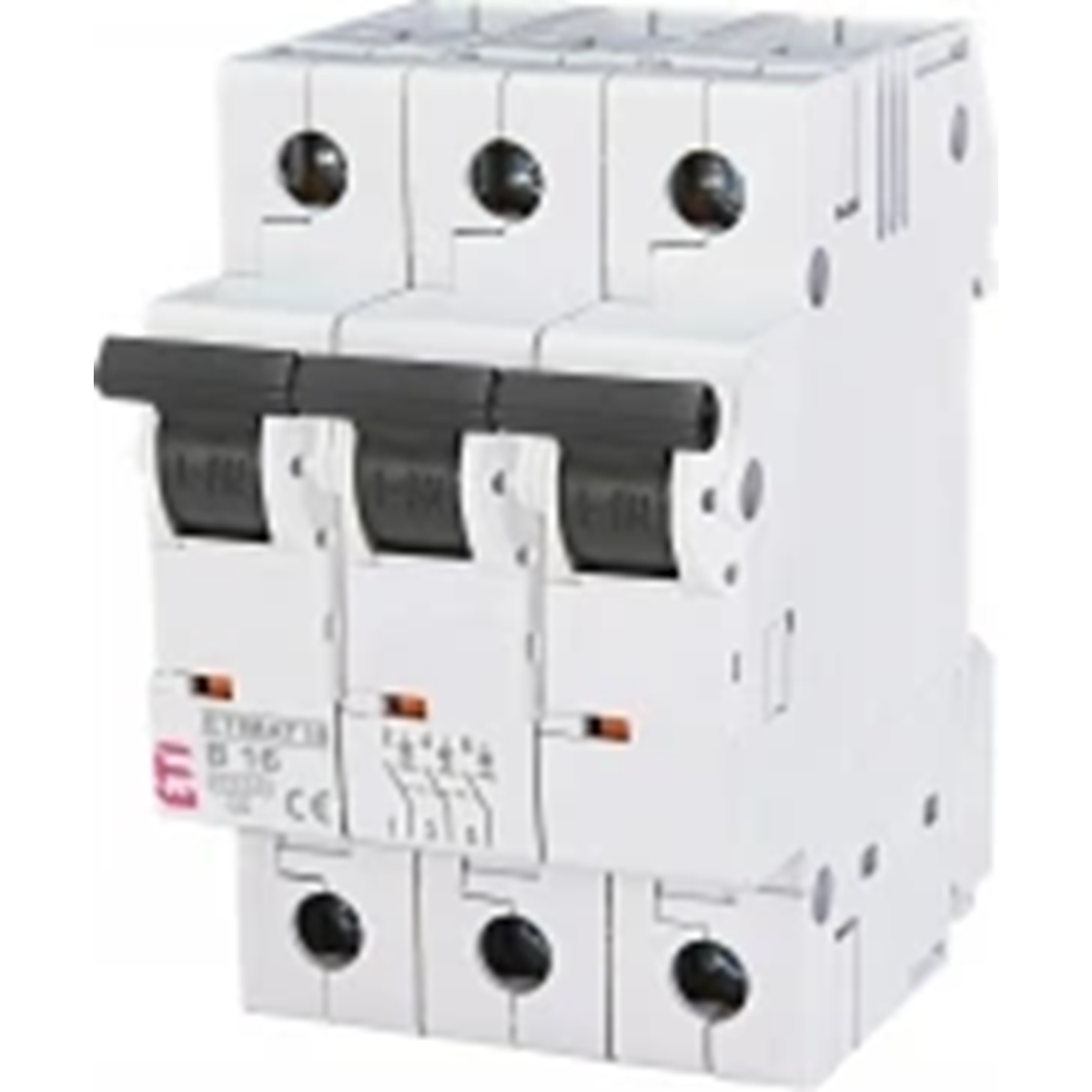

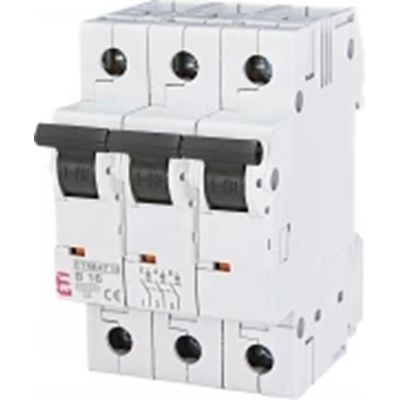

ETIMAT10 3P 10kA B 16A - Circuit breaker. Application - Overcurrent circuit breakers are used as protection of electrical installations in residential, public and industrial facilities
Technical data
Characteristic
b
Rated voltage [V]
400
Rated current [A]
16
Mechanical durability
20 thousand shifts
Rated short-circuit capacity [kA]
10
PKWIU
27.12.22.0
Number of poles
3
Case
Non-flammable, temperature-resistant material Gray color RAL 7035
Working temperature [°C]
from -25 to +50
Weight [g]
345
Insulation voltage [V]
500
Other technical data
Built-in depth
68 mm
Number of poles (total)
3
Rated current
16 A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15 kA
Current limiting class
3
Pollution degree
3
Width in number of modular spacings
3
Ambient temperature during operating
-25 ... 55 °C
Connectable conductor cross section solid-core
1 ... 25 mm²
Release characteristic
B
Number of protected poles
3
Rated insulation voltage Ui
500 V
Voltage type
Other
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
