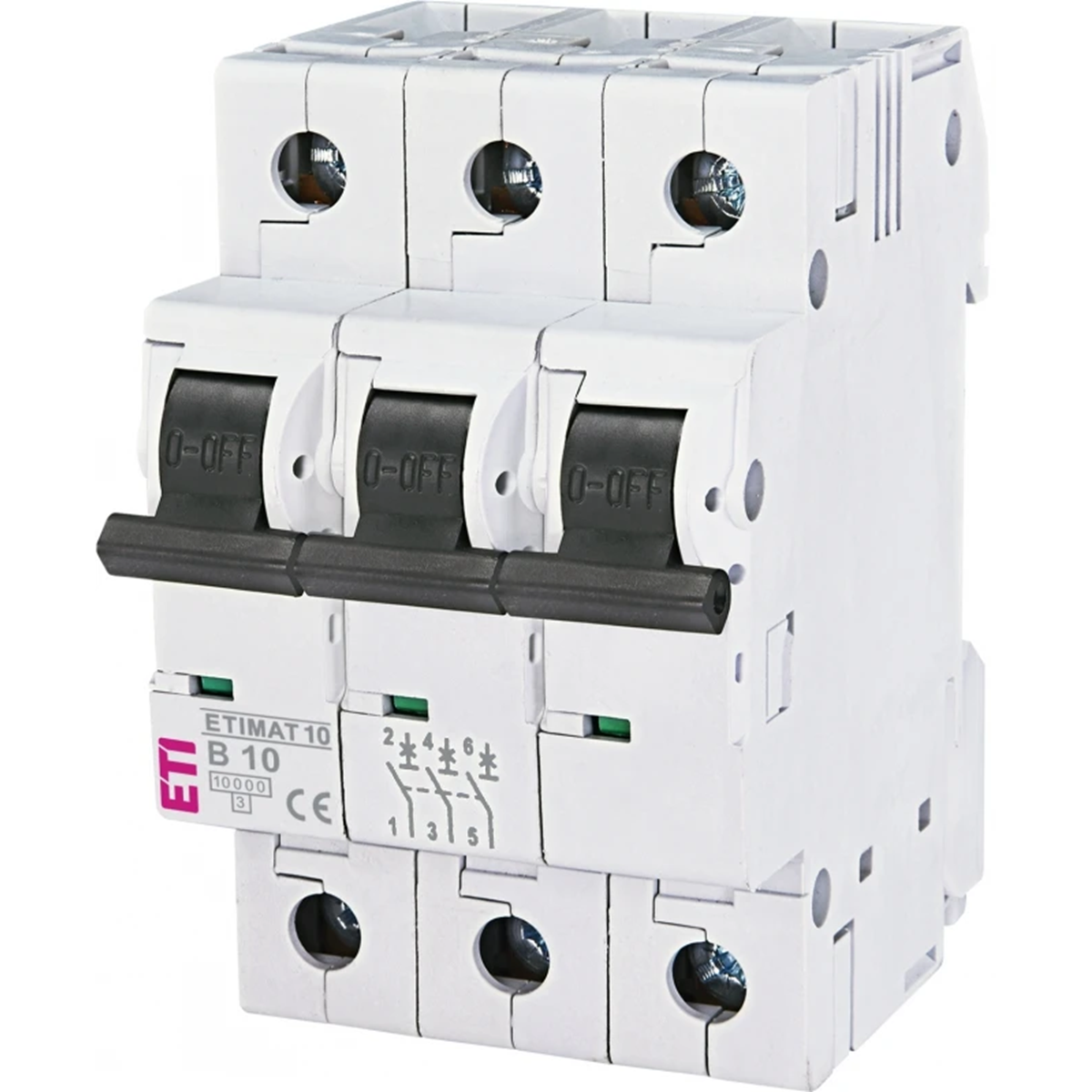

Circuit breaker ETIMAT10 3P 10kA B 10A 002125714
local index:
ABB248ETIP
Catalog No:
002125714
EAN code:
5904722938311
Price:
7,98 €
gross / pcs.
(including VAT 23%)
23,13 € gross/kg.
Last lowest price:
32,79 € gross
Price history for this product
1. 7,98 € gross / pcs.
2. Last lowest price:
32,79 €
3. Base price:
32,55 €
-75%
1. How much does this product cost today
2. Lowest price in the last 30 days
3. The base price of the product
Base price:
32,55 € gross
-75%
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Ask about the product
Product description
ETIMAT10 3P 10kA B 10A - Circuit breaker. Application - Overcurrent circuit breakers are used as protection of electrical installations in residential, public and industrial facilities.
Technical data
-
Characteristicb
-
Rated voltage [V]400
-
Rated current [A]10
-
Mechanical durability20 thousand shifts
-
Rated short-circuit capacity [kA]10
-
PKWIU27.12.22.0
-
Number of poles3
-
CaseNon-flammable, temperature-resistant material Gray color RAL 7035
-
Working temperature [°C]from -25 to +50
-
Weight [g]345
-
Insulation voltage [V]500
Other technical data
-
Built-in depth68 mm
-
Number of poles (total)3
-
Rated current10 A
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
-
Current limiting class3
-
Pollution degree3
-
Width in number of modular spacings3
-
Ambient temperature during operating-25 ... 55 °C
-
Connectable conductor cross section solid-core1 ... 25 mm²
-
Release characteristicB
-
Number of protected poles3
-
Rated insulation voltage Ui500 V
-
Voltage typeOther
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15 kA
-
Frequency50 ... 60 Hz
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
Bulk packaging
| A kind of package | Pudełko | Pudełko |
| Quantity | 4 pcs. | 36 pcs. |
| Weight (kg) | 1,430 | - |
| Volume (m3) | 0,002 | - |
| Width (m) | 0,092 | - |
| Length (m) | 0,220 | - |
| Depth (m) | 0,078 | - |
