Electrical apparatus
fuses
Circuit breakers with "D" characteristic

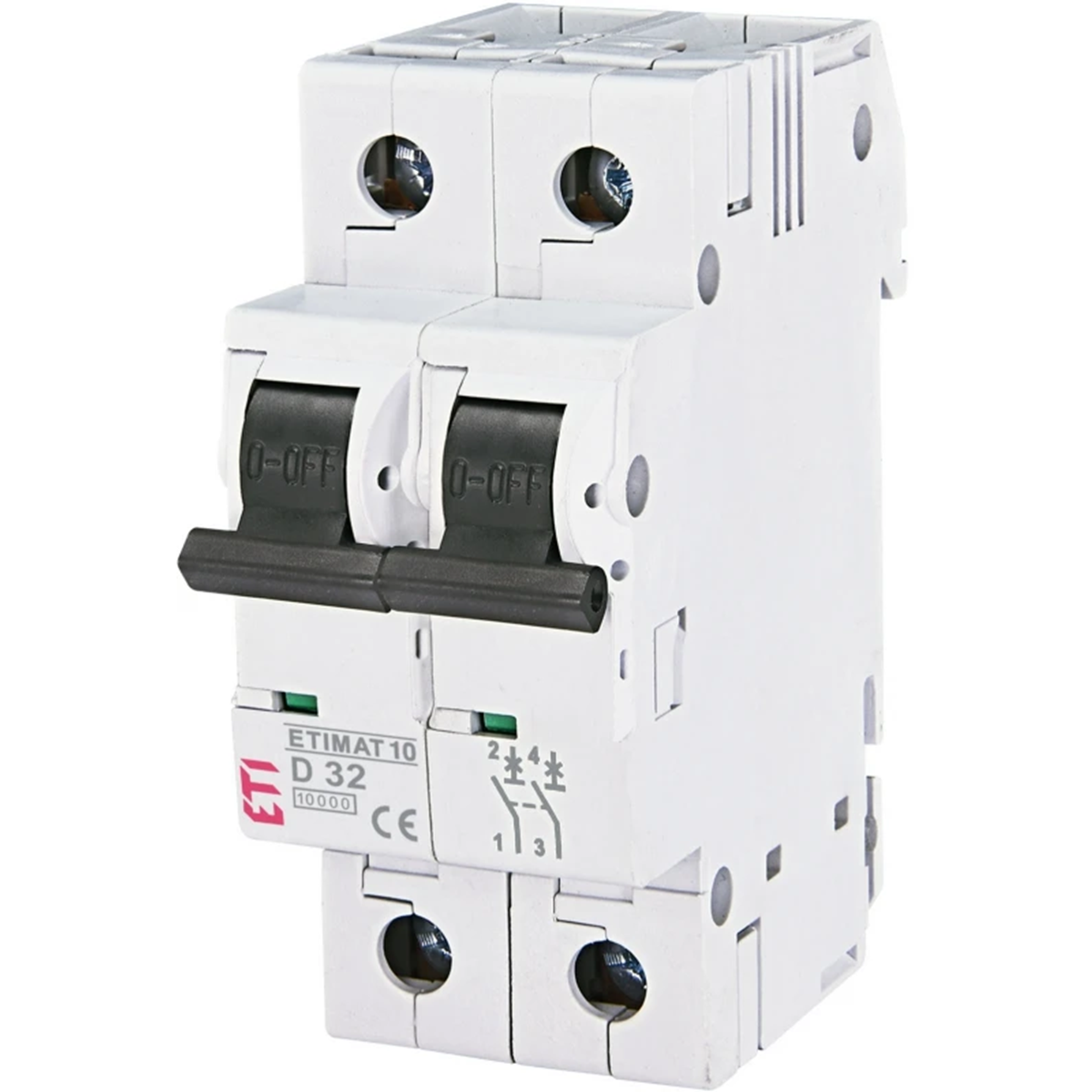

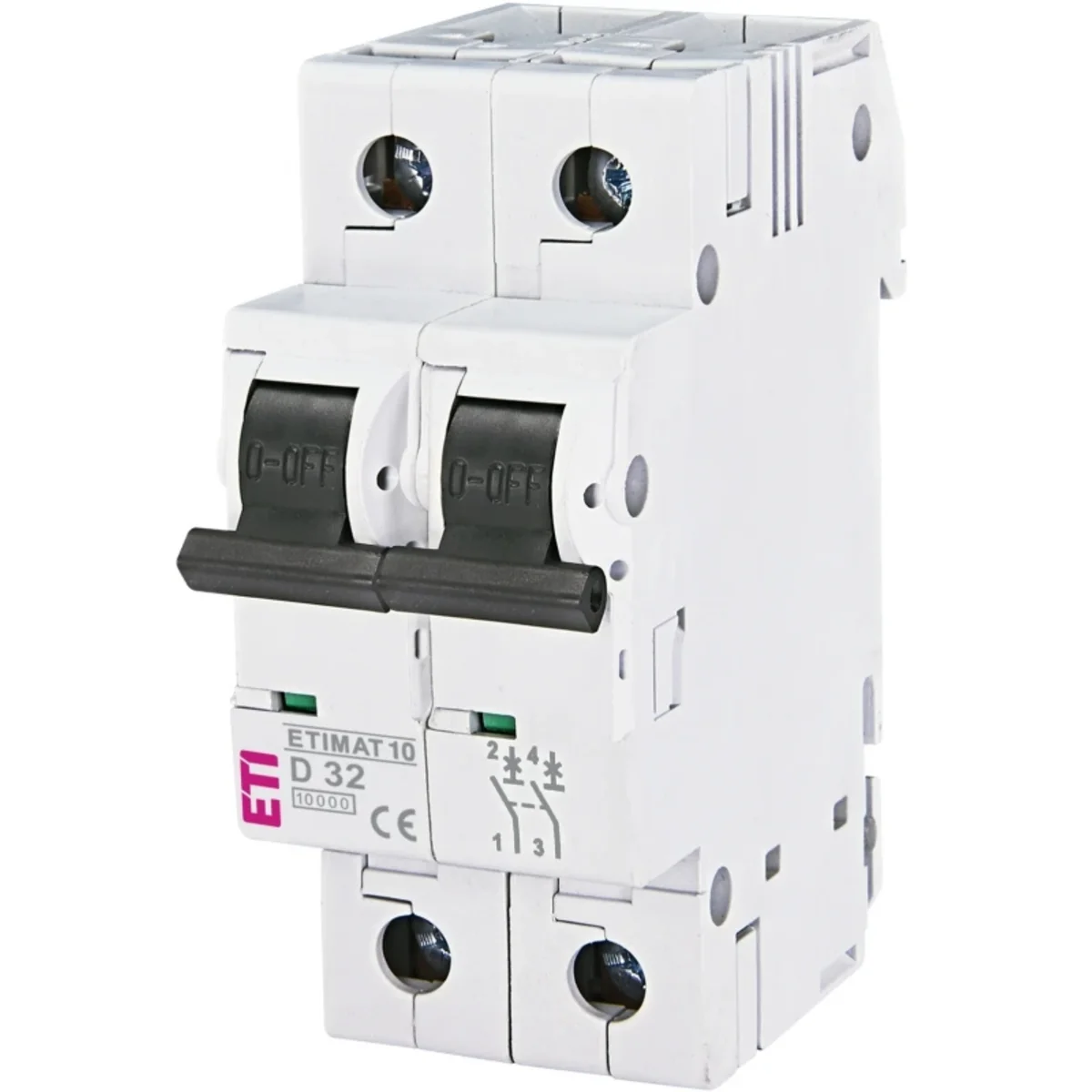

Circuit breaker ETIMAT10 2P 10kA D 32A 002153719
local index:
ABD010ETIP
Catalog No:
002153719
EAN code:
5902047600180
Click on the photo to enlarge
Manufacturer:
ETI POLAM
Characteristic:
d
Frequency [Hz]:
50/60
Number of poles:
2
See full description
Price:
17,18 €
gross / pcs.
(including VAT 23%)
75,68 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Circuit breaker ETIMAT10 2P 10kA D 32A
Technical data
Characteristic
d
Number of poles
2
Working temperature [°C]
from -25 to +50
Rated short-circuit capacity [kA]
10
PKWIU
27.12.22.0
Frequency [Hz]
50/60
Rated current [A]
32
Weight [g]
227
Insulation voltage [V]
440
Other technical data
Built-in depth
68 mm
Number of poles (total)
2
Rated current
32 A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15 kA
Over voltage category
3
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
1 ... 25 mm²
Release characteristic
D
Number of protected poles
2
Rated insulation voltage Ui
500 V
Voltage type
Other
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15 kA
Frequency
50 ... 60 Hz
Pollution degree
3
Width in number of modular spacings
2
Ambient temperature during operating
-25 ... 55 °C
Connectable conductor cross section solid-core
1 ... 25 mm²
Files to download
ETIMAT 10 (B).pdf
PL010421V5.pdf
ETIMAT 10 (B).pdf
PL010421V5.pdf
