ETI POLAM

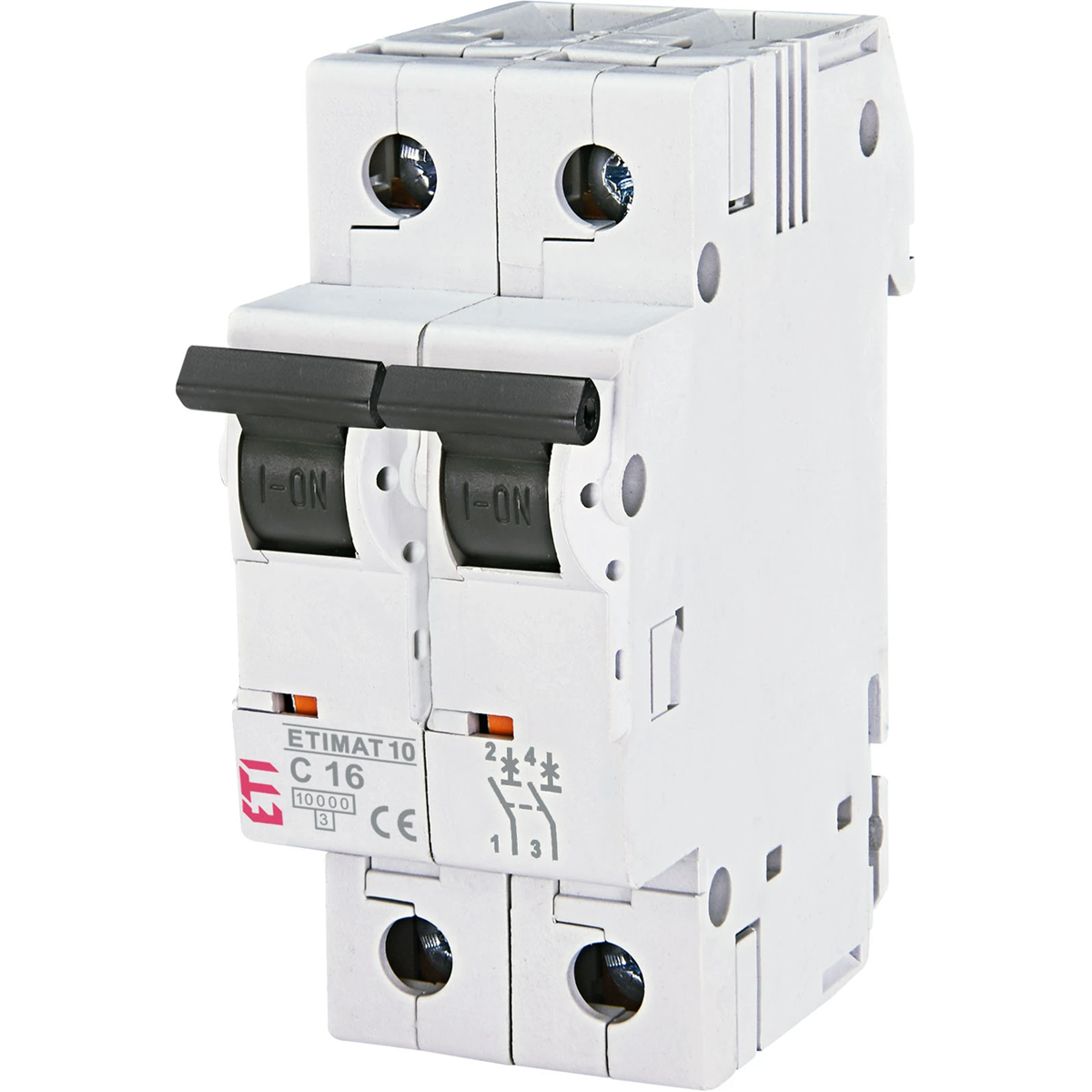

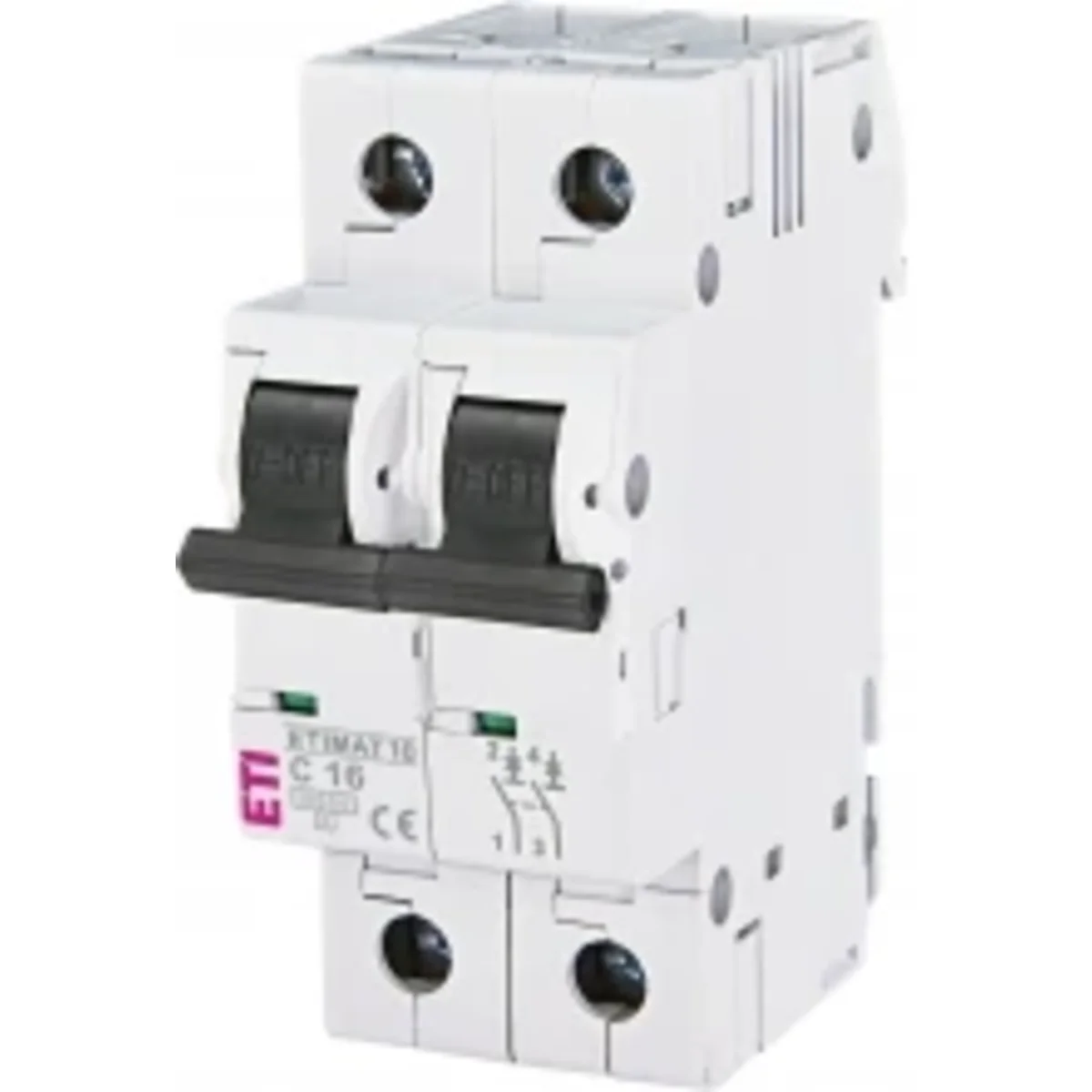

Circuit breaker ETIMAT10 2P 10kA C 16A 002133716

local index:
ABC004ETIP
Catalog No:
002133716
EAN code:
5904722942363
Price:
14,75 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Current circuit breakers are used as protection of electrical installations in residential, public and industrial buildings.

Advantages:
→ high short-circuit capacity,
→ possibility to mount auxiliary contacts,
→ meet the requirements of the main circuit breakers.



Technical data

  • Characteristic
    c
  • Rated current [A]
    16
  • Weight [g]
    227
  • Number of poles
    2
  • Working temperature [°C]
    from -25 to +50
  • Rated short-circuit capacity [kA]
    10

Other technical data

  • Built-in depth
    75 mm
  • Number of poles (total)
    2
  • Rated current
    16 A
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Current limiting class
    3
  • Pollution degree
    3
  • Width in number of modular spacings
    3
  • Ambient temperature during operating
    -25 ... 55 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Release characteristic
    C
  • Number of protected poles
    2
  • Rated insulation voltage Ui
    500 V
  • Voltage type
    Other
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    15 kA
  • Frequency
    50 ... 60 Hz
  • Over voltage category
    3
  • Additional equipment possible
    yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
