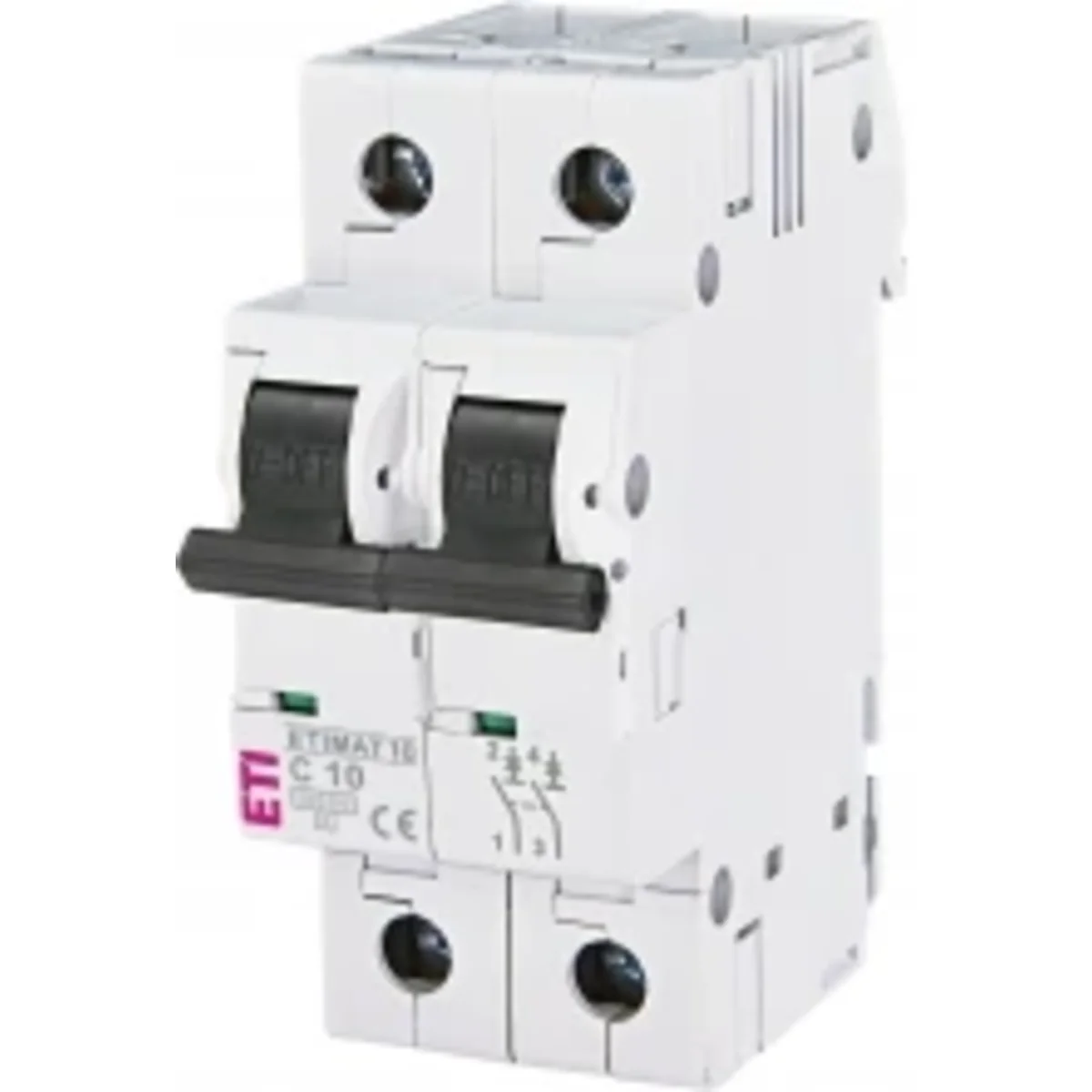

Circuit breaker ETIMAT10 2P 10kA C 10A 002133714

Name: Circuit breaker ETIMAT10 2P 10kA C 10A
Brand: ETI POLAM
SKU: ABC018ETIP
Price: 69.03 PLN
Availability: BackOrder

Místní index:

ABC018ETIP

Katalogové číslo.:

002133714

EAN kód:

5904722942356

Kliknutím na obrázek jej zvětšíte

Výrobce: ETI POLAM

Characteristic: c

Number of poles: 2

Rated current [A]: 10

Zobrazit celý popis

Cena:

69,03 zł

gross / kusů.

(včetně DPH 23%)

304,10 zł gross/kg.

do 2 týdnů

Na zakázku

Množství kusů.

(vícenásobné:

1

)

Přidat do žádosti o cenovou nabídku

Přidat do schránky

Vytisknout

Dotaz na výrobek

Popis produktu Technické údaje Podrobnosti o výrobci Soubory ke stažení

Popis produktu

Current circuit breakers are used as protection of electrical installations in residential, public and industrial facilities.

Advantages:
→ high short-circuit capacity,
→ possibility to mount auxiliary contacts,
→ meet the requirements of the main circuit breakers.

Built-in depth

75 mm
Number of poles (total)

2
Rated current

10 A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Current limiting class

3
Pollution degree

3
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 55 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

C
Number of protected poles

2
Rated insulation voltage Ui

500 V
Voltage type

Other
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Frequency

50 ... 60 Hz
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
