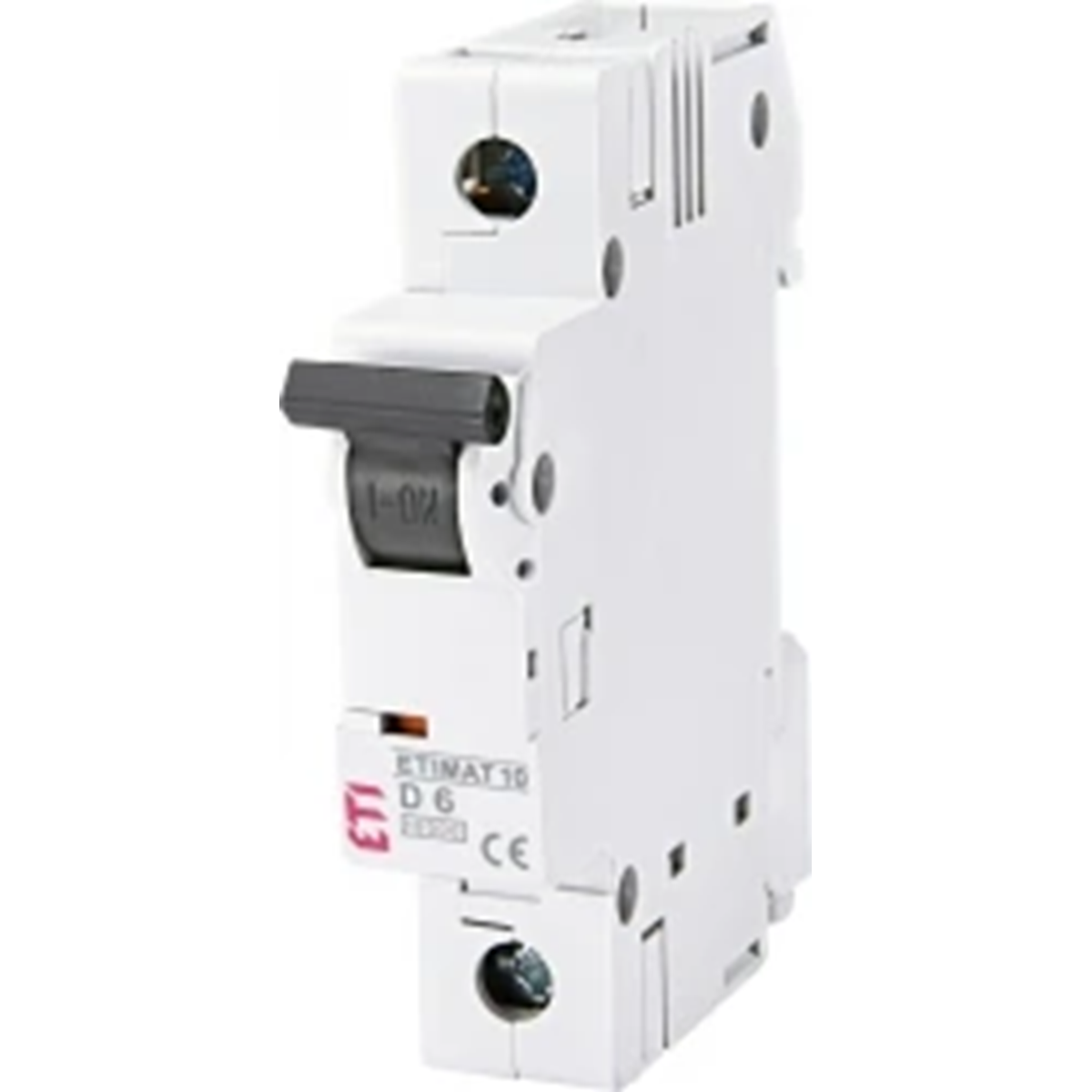

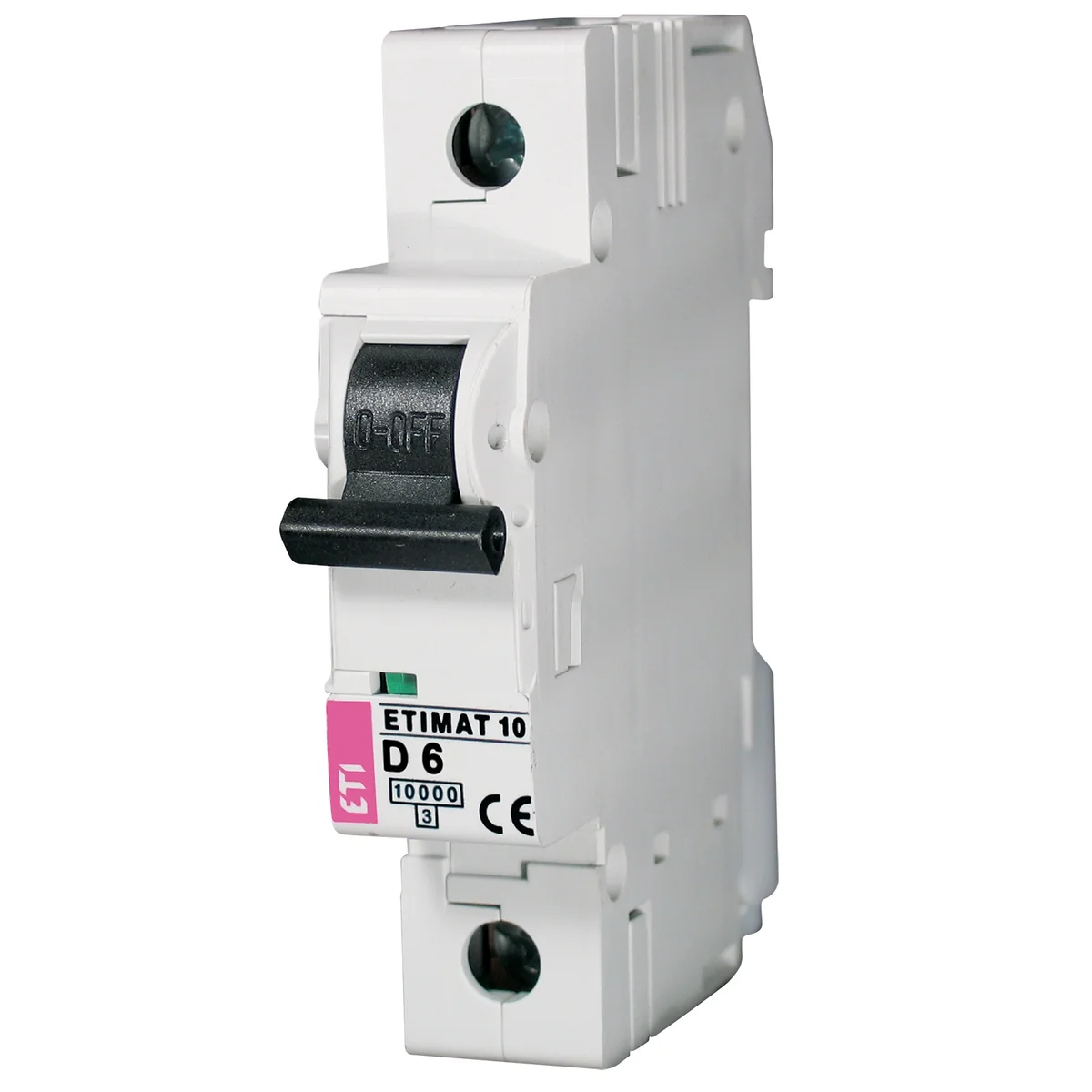

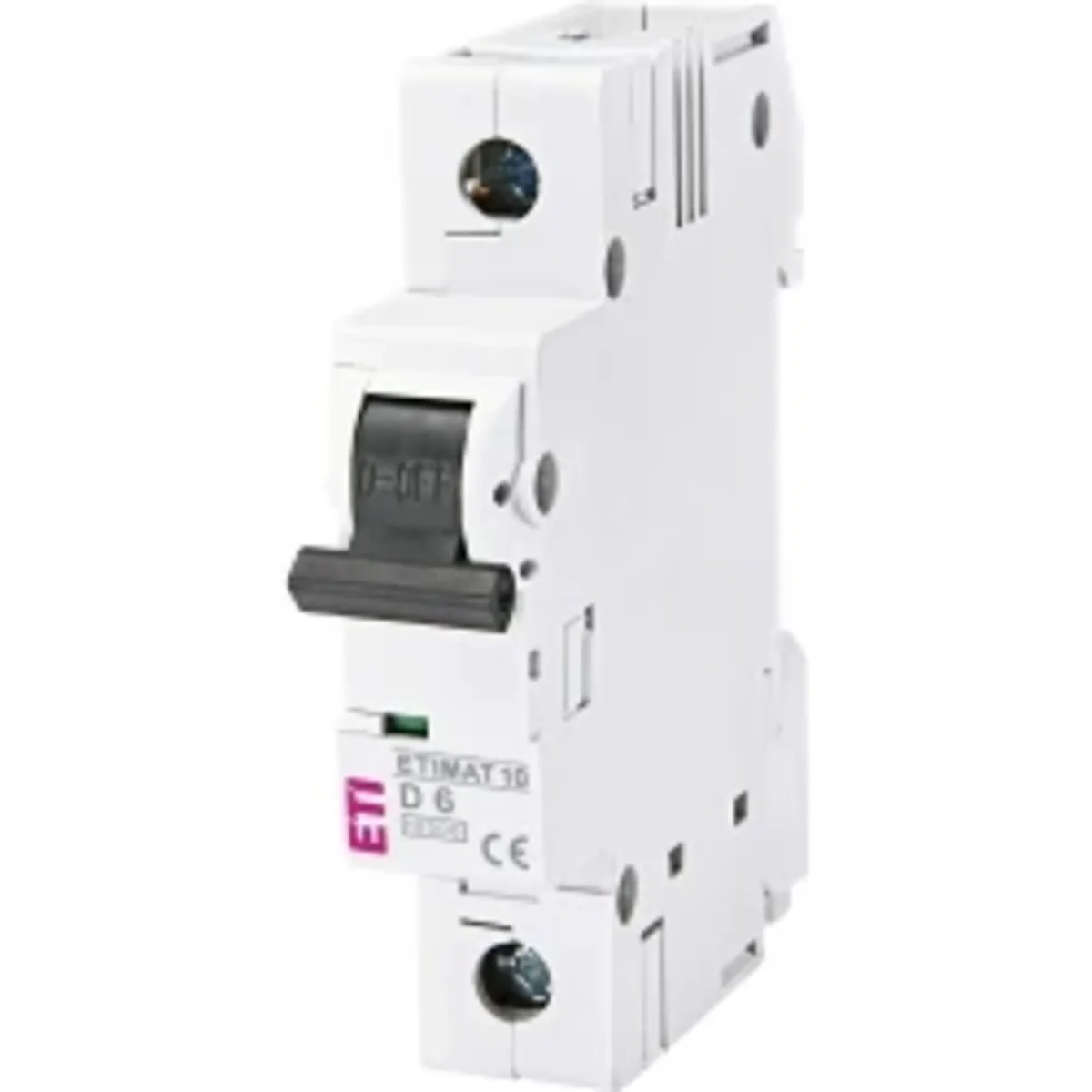

Circuit breaker ETIMAT10 1P 10kA D 6A 002151712

local index:
ABD012ETIP
Catalog No:
002151712
EAN code:
5902047600005
Manufacturer: ETI POLAM
Number of poles: 1
Rated current [A]: 6
Short-circuit current [kA]: 10
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
2,93 €
gross / pcs.
(including VAT 23%)
Last lowest price: 10,74 € gross
Base price: 10,65 € gross -72%
Delivery in 3h
Accessible 2 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Print

Product description

Specification

  • < em style="color: silver;">ETI Code002151712
  • DescriptionETIMAT 10 1p D6
  • Weight.142
  • LevelCurrent Circuit Breakers & Accessories
  • Catalog groupETIMAT 10 6kA and 10kA overcurrent circuit breakers
  • FunctionMCB
  • Number of poles1p
  • Rated Current6A
  • Short circuit current10kA
  • Trigger characteristicsD

Technical data

  • Number of poles
    1
  • Short-circuit current [kA]
    10
  • Rated current [A]
    6
  • PKWIU
    27.12.22.0

Other technical data

  • Built-in depth
    68 mm
  • Number of poles (total)
    1
  • Rated current
    6 A
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Over voltage category
    3
  • Additional equipment possible
    yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Release characteristic
    D
  • Number of protected poles
    1
  • Rated insulation voltage Ui
    500 V
  • Voltage type
    Other
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    15 kA
  • Frequency
    50 ... 60 Hz
  • Pollution degree
    3
  • Width in number of modular spacings
    1
  • Ambient temperature during operating
    -25 ... 55 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 1 pcs. 12 pcs.
Weight (kg) 0,140 -
Volume (m3) 0,000 -
Width (m) 0,021 -
Length (m) 0,078 -
Depth (m) 0,092 -
