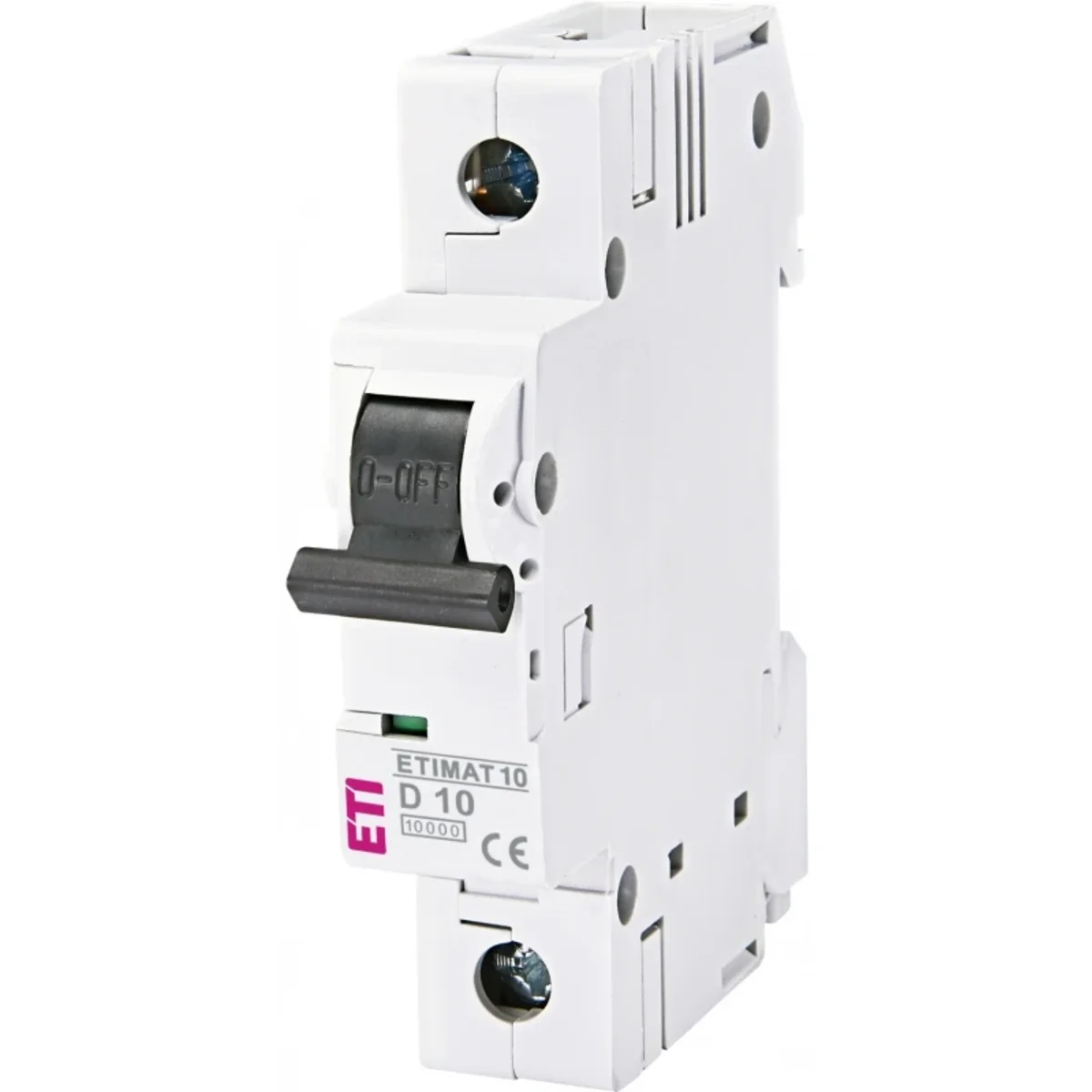

Circuit breaker ETIMAT10 1P 10kA D 10A 002151714
local index:
ABB257ETIP
Catalog No:
002151714
EAN code:
5902047600012
Price:
6,56 €
gross / pcs.
(including VAT 23%)
58,57 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Current circuit breakers are used as protection of electrical installations in residential, public and industrial facilities.
Advantages:
→ high short-circuit capacity,
→ possibility to mount auxiliary contacts,
→ meet the requirements of the main circuit breakers.
Technical data
-
Characteristicd
-
Rated current [A]10
-
Weight [g]112
-
PKWIU27.12.22.0
-
Number of poles1
-
Working temperature [°C]from -25 to +50
-
Rated short-circuit capacity [kA]10
Other technical data
-
Built-in depth68 mm
-
Number of poles (total)1
-
Rated current10 A
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Release characteristicD
-
Number of protected poles1
-
Rated insulation voltage Ui500 V
-
Voltage typeOther
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15 kA
-
Frequency50 ... 60 Hz
-
Pollution degree3
-
Width in number of modular spacings1
-
Ambient temperature during operating-25 ... 55 °C
-
Connectable conductor cross section solid-core1 ... 25 mm²
Bulk packaging
| A kind of package | Pudełko | Pudełko |
| Quantity | 1 pcs. | 12 pcs. |
| Weight (kg) | 0,140 | - |
| Volume (m3) | 0,000 | - |
| Width (m) | 0,021 | - |
| Length (m) | 0,078 | - |
| Depth (m) | 0,092 | - |
