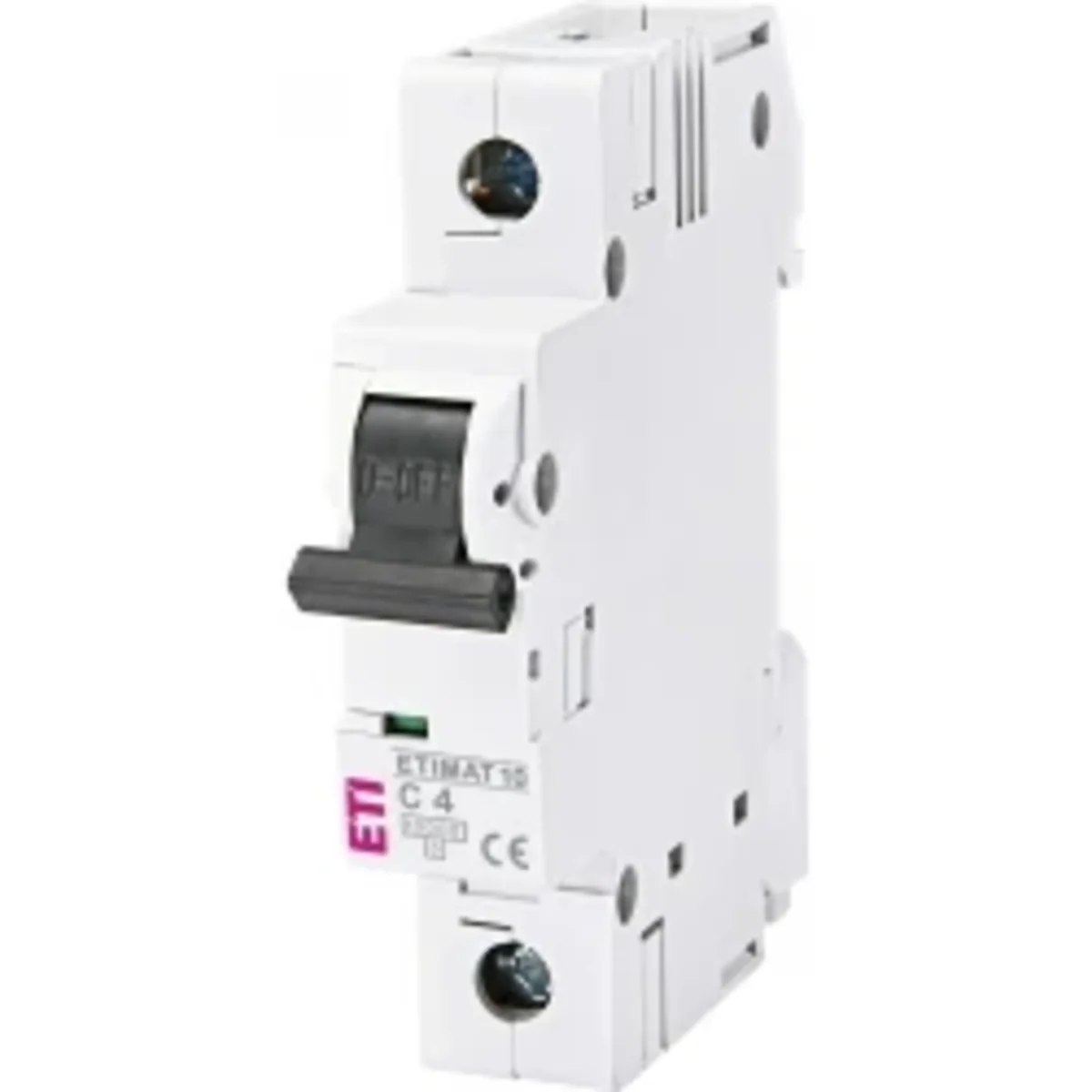

Circuit breaker ETIMAT10 1P 10kA C 4A 002131710

Name: Circuit breaker ETIMAT10 1P 10kA C 4A
Brand: ETI POLAM
SKU: ABC208ETIP
Price: 37.61 PLN
Availability: InStock

Índice local:

ABC208ETIP

Número de catálogo:

002131710

Código EAN:

3838895259428

Haga clic en la foto para ampliar

Fabricante: ETI POLAM

Characteristic: c

Number of poles: 1

Rated voltage [V]: 230

Ver descripción completa

Precio:

37,61 zł

gross / uds.

(IVA incluido 23%)

327,04 zł gross/kg.

Accesible 32 uds.

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

ETIMAT10 1P 10kA C 4A - Circuit breaker. Application - Overcurrent circuit breakers are used as protection of electrical installations in residential, public and industrial facilities. Pros:
→ high short-circuit capacity,
→ possibility to mount auxiliary contacts,
→ meet the requirements of the main circuit breaker.

Datos técnicos

Characteristic

c
Rated voltage [V]

230
Rated current [A]

4
Mechanical durability

20 thousand shifts
Rated short-circuit capacity [kA]

10
PKWIU

27.12.22.0

Number of poles

1
Case

Non-flammable, temperature-resistant material Gray color RAL 7035
Working temperature [°C]

from -25 to +50
Weight [g]

115
Insulation voltage [V]

500

Otros datos técnicos

Built-in depth

68 mm
Number of poles (total)

1
Rated current

4 A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Current limiting class

3
Pollution degree

3
Width in number of modular spacings

1
Ambient temperature during operating

-25 ... 55 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

C
Number of protected poles

1
Rated insulation voltage Ui

500 V
Voltage type

Other
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Frequency

50 ... 60 Hz
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Detalles del fabricante

Fabricante

ETI Polam Sp. z o.o.
Dirección

06-100 Pułtusk Jana Pawła II 18 Polska
Email

etipolam@etipolam.com.pl

Empaquetado a granel

una especie de paquete	Pudełko	Pudełko
Cantidad	12 uds.	108 uds.
Peso (kg)	1,430	-
Volumen (m3)	0,002	-
Ancho (m)	0,092	-
Longitud (m)	0,220	-
Profundidad (m)	0,078	-
