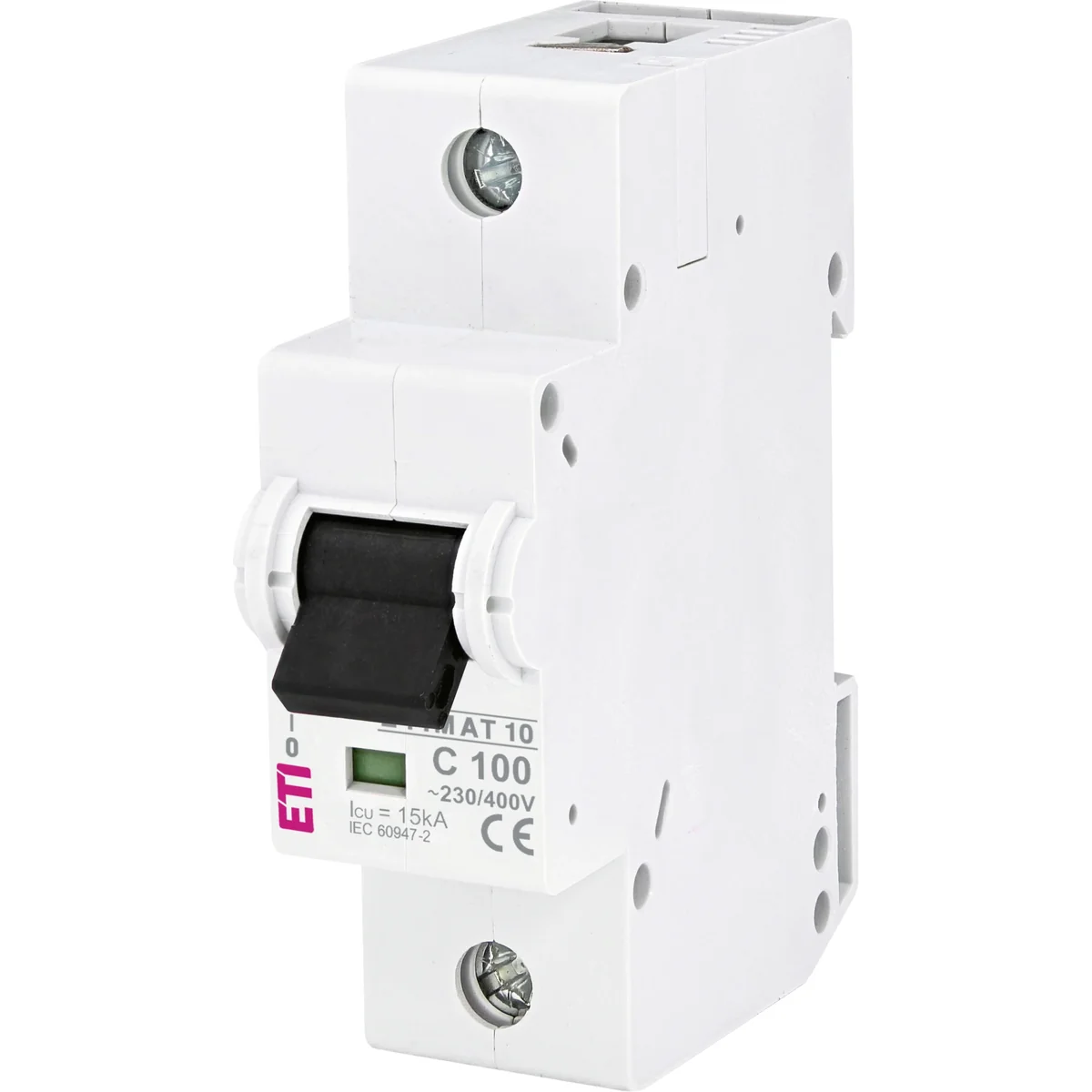

ETIMAT10 1P 10kA C 100A - Circuit breaker. Application - Overcurrent circuit breakers are used as protection of electrical installations in residential, public and industrial buildings. Pros: → high short-circuit capacity, → possibility of mounting auxiliary contacts, → meet the requirements of the main circuit breaker.
Technical data
Characteristic
c
Rated voltage [V]
230
Rated current [A]
100
Mechanical durability
20 thousand shifts
Rated short-circuit capacity [kA]
10
PKWIU
27.12.22.0
Number of poles
1
Case
Non-flammable, temperature-resistant material Gray color RAL 7035
Working temperature [°C]
from -25 to +50
Weight [g]
231
Insulation voltage [V]
500
Other technical data
Built-in depth
75 mm
Number of poles (total)
1
Rated current
100 A
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
20 kA
Frequency
50 ... 60 Hz
Over voltage category
3
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
2.5 ... 50 mm²
Release characteristic
C
Number of protected poles
1
Rated insulation voltage Ui
440 V
Voltage type
Other
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
