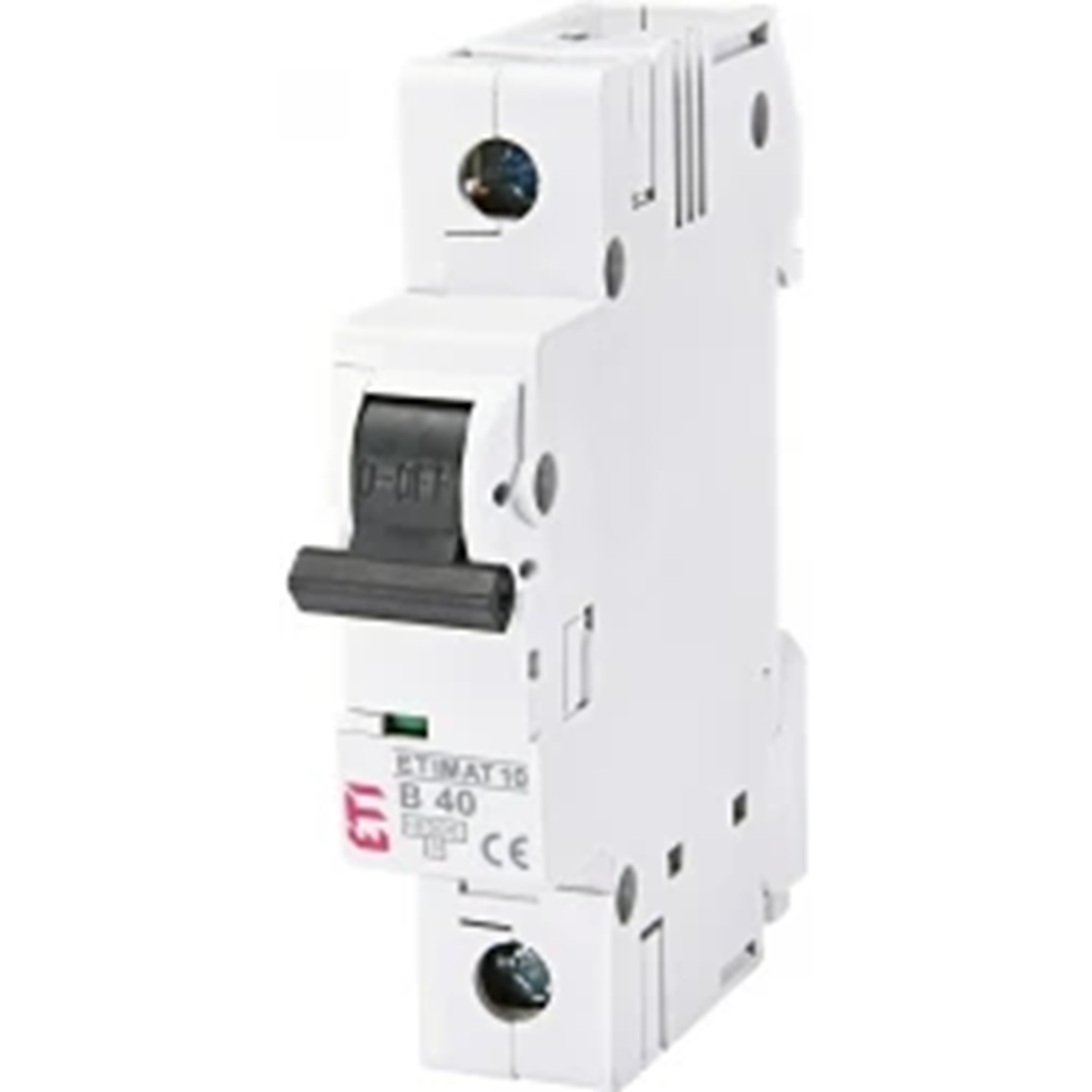

ETIMAT10 1P 10kA B 40A - Circuit breaker. Application - Overcurrent circuit breakers are used as protection of electrical installations in residential, public and industrial facilities. Pros: → high short-circuit capacity, → possibility to mount auxiliary contacts, → meet the requirements of the main circuit breaker.
Technical data
Characteristic
b
Rated voltage [V]
230
Rated current [A]
40
Mechanical durability
20 thousand shifts
Rated short-circuit capacity [kA]
10
PKWIU
27.12.22.0
Number of poles
1
Case
Non-flammable, temperature-resistant material Gray color RAL 7035
Working temperature [°C]
from -25 to +50
Weight [g]
114
Insulation voltage [V]
500
Other technical data
Built-in depth
68 mm
Number of poles (total)
1
Rated current
40 A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15 kA
Current limiting class
3
Pollution degree
3
Width in number of modular spacings
1.5
Ambient temperature during operating
-25 ... 55 °C
Connectable conductor cross section solid-core
1 ... 25 mm²
Release characteristic
B
Number of protected poles
1
Rated insulation voltage Ui
500 V
Voltage type
Other
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
