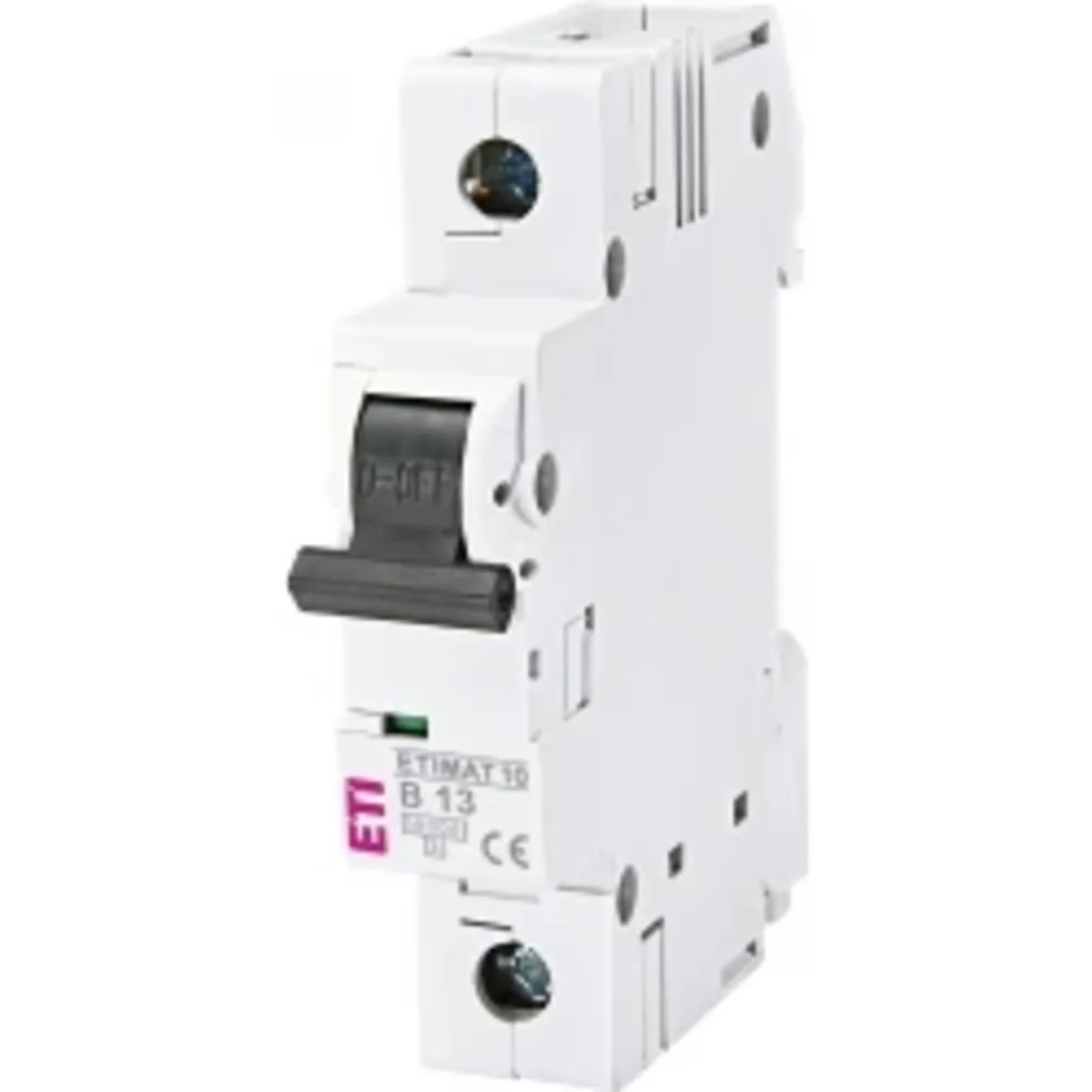

Name: Circuit breaker ETIMAT10 1P 10kA B 13A
Brand: ETI POLAM
SKU: ABB254ETIP
Price: 4.94 PLN

Built-in depth

68 mm
Number of poles (total)

1
Rated current

13 A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Current limiting class

3
Pollution degree

3
Width in number of modular spacings

1.5
Ambient temperature during operating

-25 ... 55 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

B
Number of protected poles

1
Rated insulation voltage Ui

500 V
Voltage type

Other
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Frequency

50 ... 60 Hz
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Circuit breaker ETIMAT10 1P 10kA B 13A 002121715

Product description
