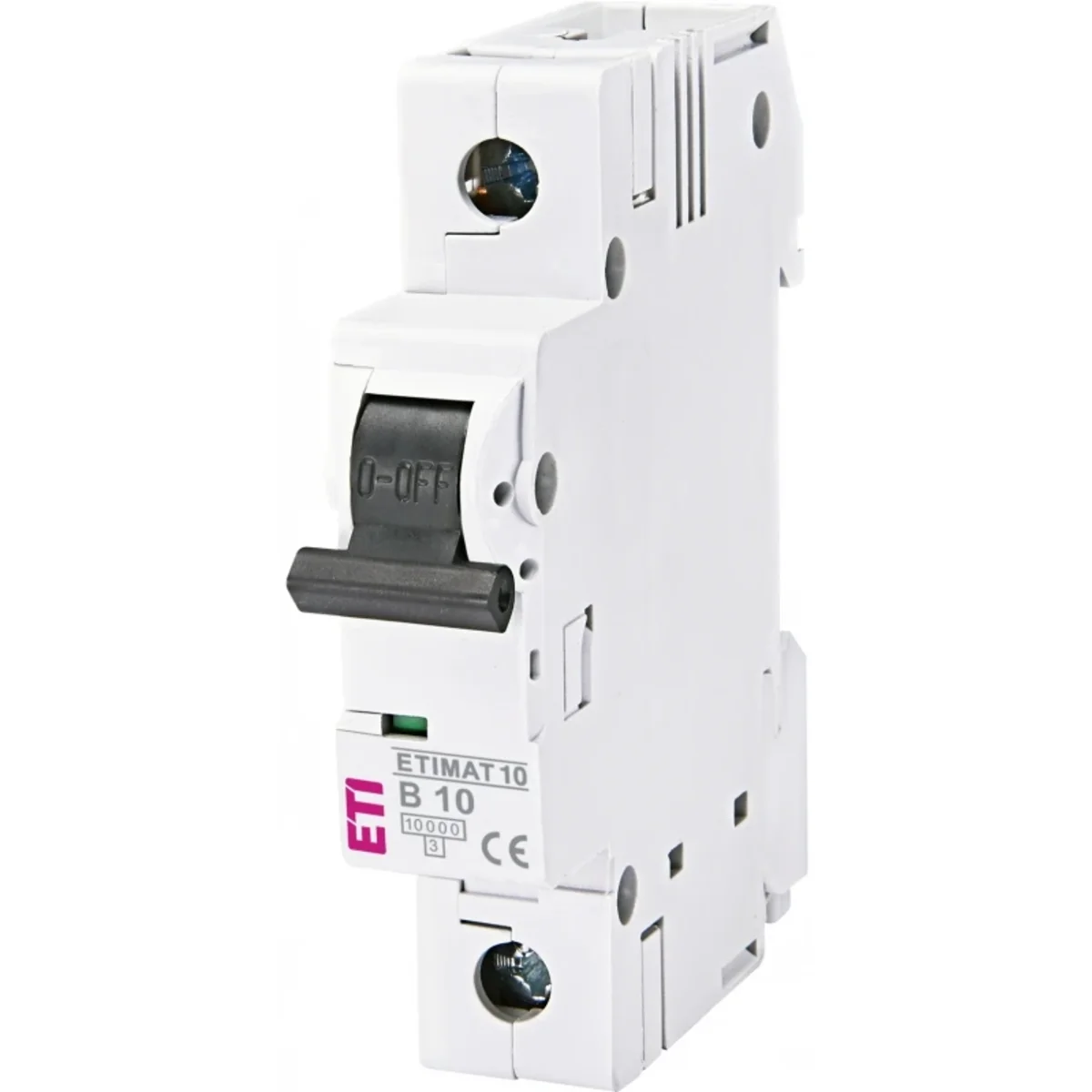

Circuit breaker ETIMAT10 1P 10kA B 10A 002121714

local index:
ABB210ETIP
Catalog No:
002121714
EAN code:
5904722937802
Manufacturer: ETI POLAM
Characteristic: b
Number of poles: 1
Rated voltage [V]: 230
Price:
4,27 €
gross / pcs.
(including VAT 23%)
38,13 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

ETIMAT10 1P 10kA B 10A - Overcurrent circuit breaker. Application - Overcurrent circuit breakers are used as protection of electrical installations in residential, public and industrial facilities


Technical data

  • Characteristic
    b
  • Rated voltage [V]
    230
  • Rated current [A]
    10
  • Mechanical durability
    20 thousand shifts
  • Rated short-circuit capacity [kA]
    10
  • PKWIU
    27.12.22.0
  • Number of poles
    1
  • Case
    Non-flammable, temperature-resistant material Gray color RAL 7035
  • Working temperature [°C]
    from -25 to +50
  • Weight [g]
    112
  • Insulation voltage [V]
    500

Other technical data

  • Built-in depth
    68 mm
  • Number of poles (total)
    1
  • Rated current
    10 A
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Current limiting class
    3
  • Pollution degree
    3
  • Width in number of modular spacings
    1.5
  • Ambient temperature during operating
    -25 ... 55 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Release characteristic
    B
  • Number of protected poles
    1
  • Rated insulation voltage Ui
    500 V
  • Voltage type
    Other
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    15 kA
  • Frequency
    50 ... 60 Hz
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 12 pcs. 108 pcs.
Weight (kg) 1,430 -
Volume (m3) 0,002 -
Width (m) 0,092 -
Length (m) 0,220 -
Depth (m) 0,078 -
