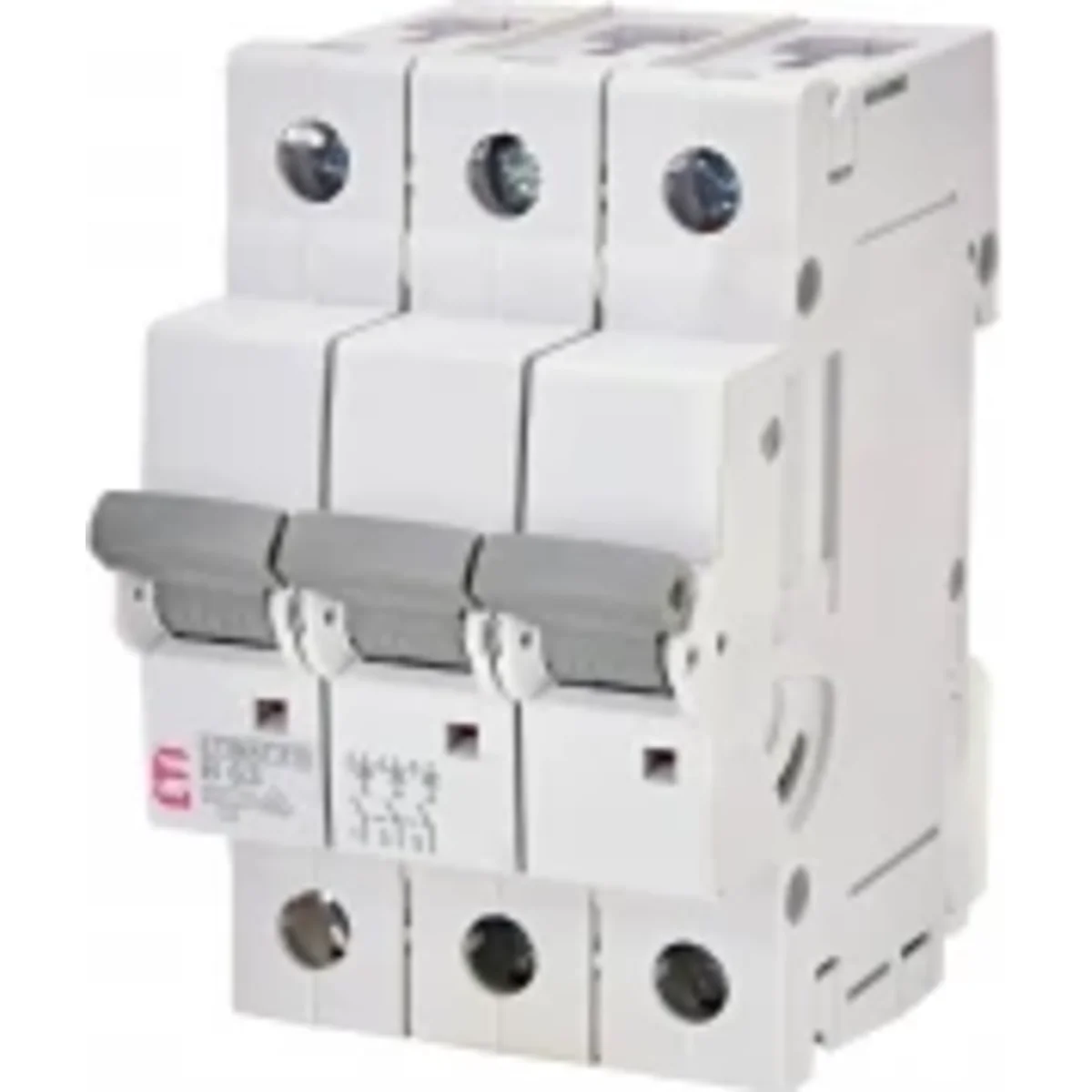

Circuit breaker ETIMAT P10 3p B 63A 276330104
local index:
ABB015ETIP
Catalog No:
276330104
EAN code:
3838895652625
Price:
47,69 €
gross / pcs.
(including VAT 23%)
132,47 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Circuit breaker ETIMAT P10 3p B 63A
Technical data
-
Characteristicb
-
Rated current [A]63
-
Weight [g]360
-
Number of poles3
-
Short-circuit current [kA]10
-
PKWIU27.12.22.0
Other technical data
-
Built-in depth69.5 mm
-
Number of poles (total)3
-
Rated current63 A
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
-
Current limiting class3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Release characteristicB
-
Number of protected poles3
-
Rated insulation voltage Ui500 V
-
Voltage typeOther
-
Frequency50 ... 60 Hz
-
Over voltage category3
-
Width in number of modular spacings3
-
Ambient temperature during operating-25 ... 55 °C
-
Connectable conductor cross section solid-core1 ... 25 mm²
Bulk packaging
| A kind of package | Pudełko | Pudełko |
| Quantity | 4 pcs. | 20 pcs. |
| Weight (kg) | 0,410 | - |
| Volume (m3) | 0,002 | - |
| Width (m) | 0,092 | - |
| Length (m) | 0,220 | - |
| Depth (m) | 0,078 | - |
