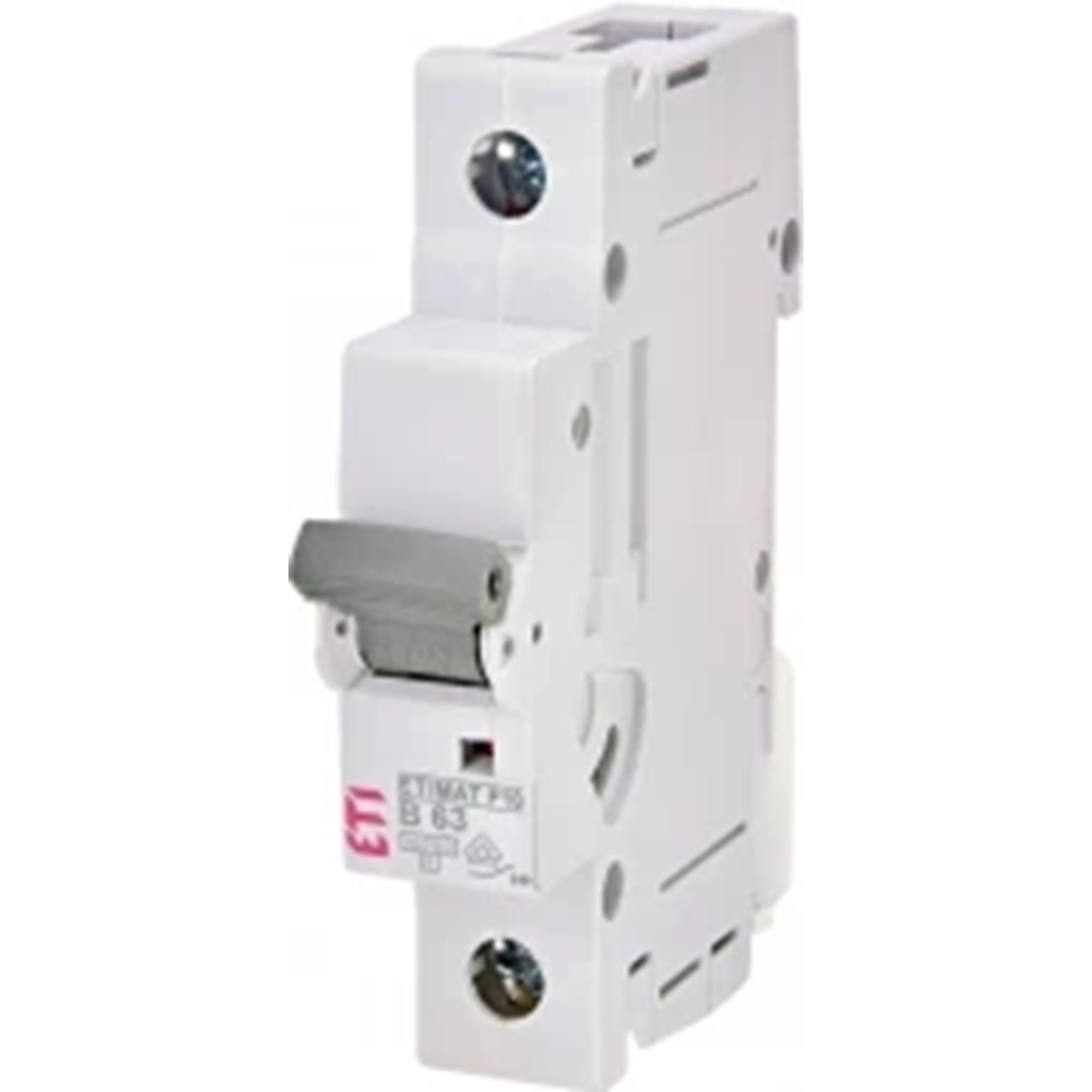

Circuit breaker ETIMAT P10 1p B 63A 276300103
local index:
ABB014ETIP
Catalog No:
276300103
EAN code:
3838895652533
Price:
9,42 €
gross / pcs.
(including VAT 23%)
Last lowest price:
15,72 € gross
Price history for this product
1. 9,42 € gross / pcs.
2. Last lowest price:
15,72 €
3. Base price:
23,27 €
-60%
1. How much does this product cost today
2. Lowest price in the last 30 days
3. The base price of the product
Base price:
23,27 € gross
-60%
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Ask about the product
Product description
Specification
- < li style="display: block; border-bottom-width: 1px; border-bottom-style: solid; border-bottom-color: rgb(225, 225, 225); min-width: 48%; padding: 2px 4px; overflow: hidden;">FunctionMCB
Technical data
-
Number of poles1
-
Short-circuit current [kA]10
-
Rated current [A]63
-
PKWIU27.12.22.0
Other technical data
-
Built-in depth69.5 mm
-
Number of poles (total)1
-
Rated current63 A
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
-
Current limiting class3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Release characteristicB
-
Number of protected poles1
-
Rated insulation voltage Ui500 V
-
Voltage typeOther
-
Frequency50 ... 60 Hz
-
Over voltage category3
-
Width in number of modular spacings1
-
Ambient temperature during operating-25 ... 55 °C
-
Connectable conductor cross section solid-core1 ... 25 mm²
Bulk packaging
| A kind of package | Pudełko | Pudełko |
| Quantity | 12 pcs. | 60 pcs. |
| Weight (kg) | 0,150 | - |
| Volume (m3) | 0,002 | - |
| Width (m) | 0,092 | - |
| Length (m) | 0,220 | - |
| Depth (m) | 0,078 | - |
