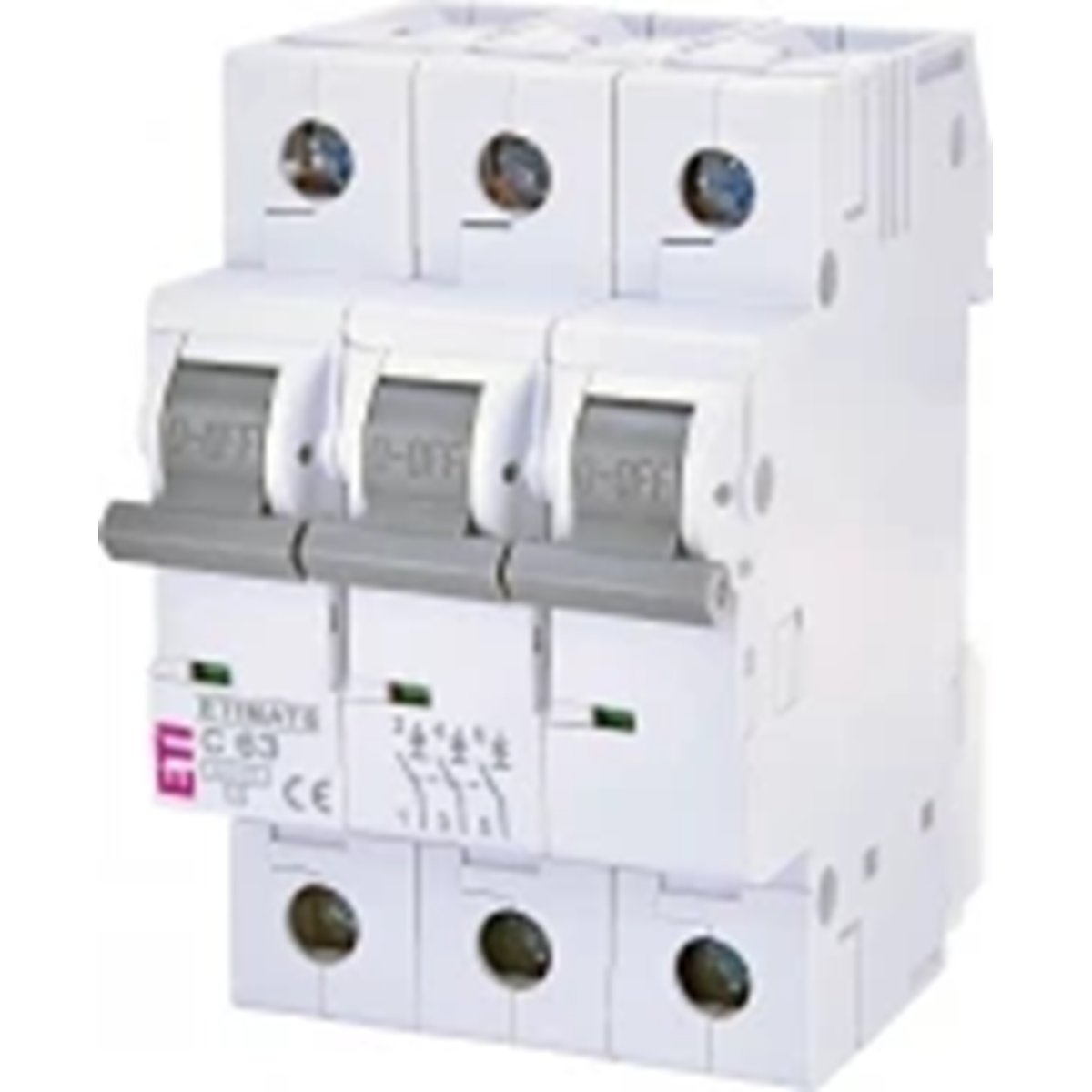

Circuit breaker ETIMAT 6 3p C63 002145522
local index:
ABC025ETIP
Catalog No:
002145522
EAN code:
3838895266020
Price:
35,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Three-pole circuit breaker for use in electrical installations in residential, public and industrial facilities to protect electrical circuits against the effects of overloads and short circuits.< /p>
Technical data
-
Frequency [Hz]50
-
InstallationOn the TH-35 rail
-
Rated current [A]63
-
Type of voltageAC
-
Level of securityIP20
-
Contact life10 thousand connections
-
Trigger typec
-
Number of poles3
-
Rated voltage [V]400
-
Short-circuit current [kA]6
-
FamilyETIMAT 6 6kA overcurrent circuit breakers
-
Width [number of modules]3
-
Mechanical durability20 thousand shifts
-
PKWIU27.12.22.0
Other technical data
-
Built-in depth68 mm
-
Number of poles (total)3
-
Rated current63 A
-
Rated impulse withstand voltage Uimp4 kV
-
Voltage typeOther
-
Frequency50 ... 60 Hz
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Release characteristicC
-
Number of protected poles3
-
Rated insulation voltage Ui500 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
-
Current limiting class3
-
Pollution degree3
-
Width in number of modular spacings3
-
Ambient temperature during operating-25 ... 55 °C
-
Connectable conductor cross section solid-core1 ... 25 mm²
Bulk packaging
| A kind of package | Pudełko | Pudełko |
| Quantity | 4 pcs. | 36 pcs. |
| Weight (kg) | 1,425 | - |
| Volume (m3) | 0,002 | - |
| Width (m) | 0,092 | - |
| Length (m) | 0,220 | - |
| Depth (m) | 0,078 | - |
