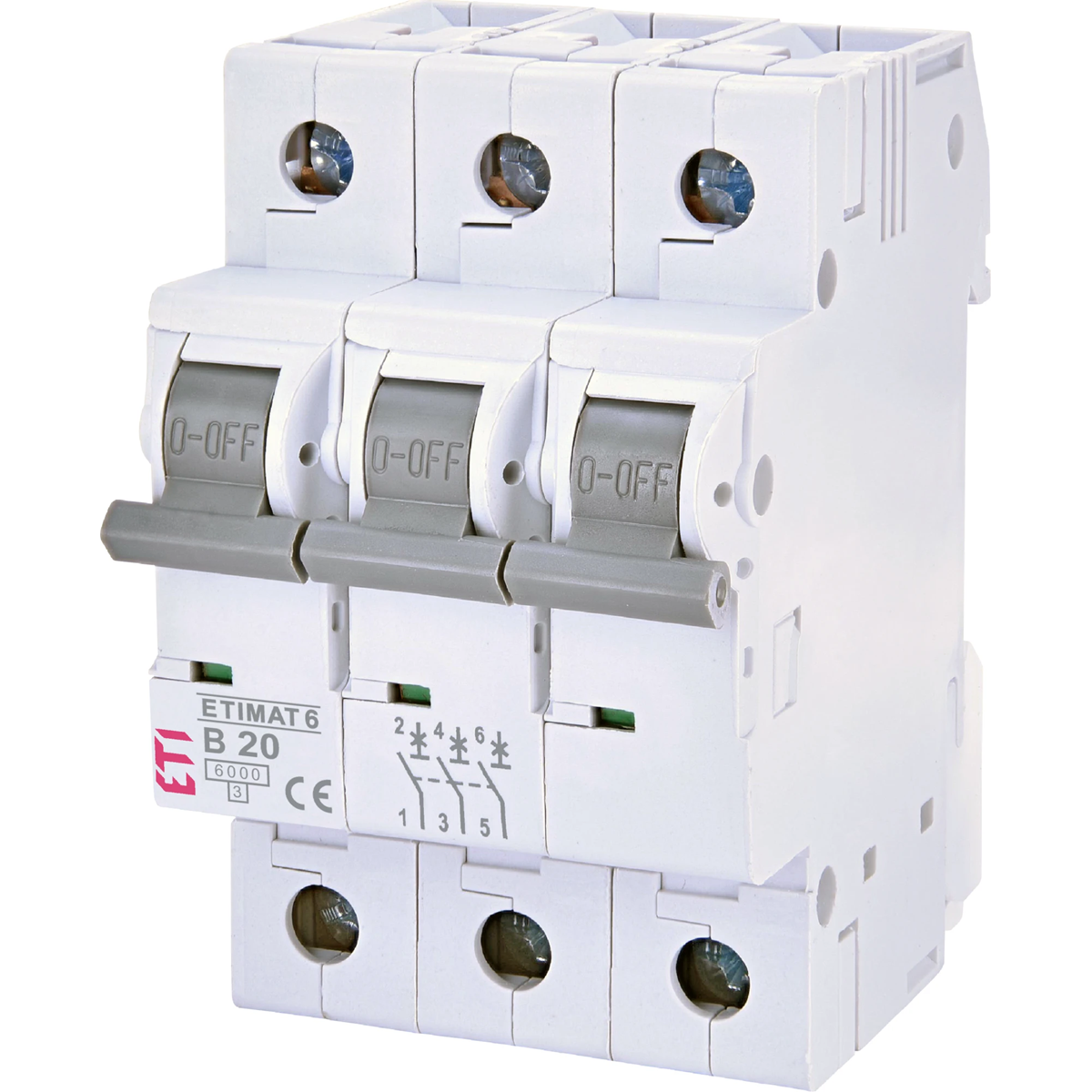

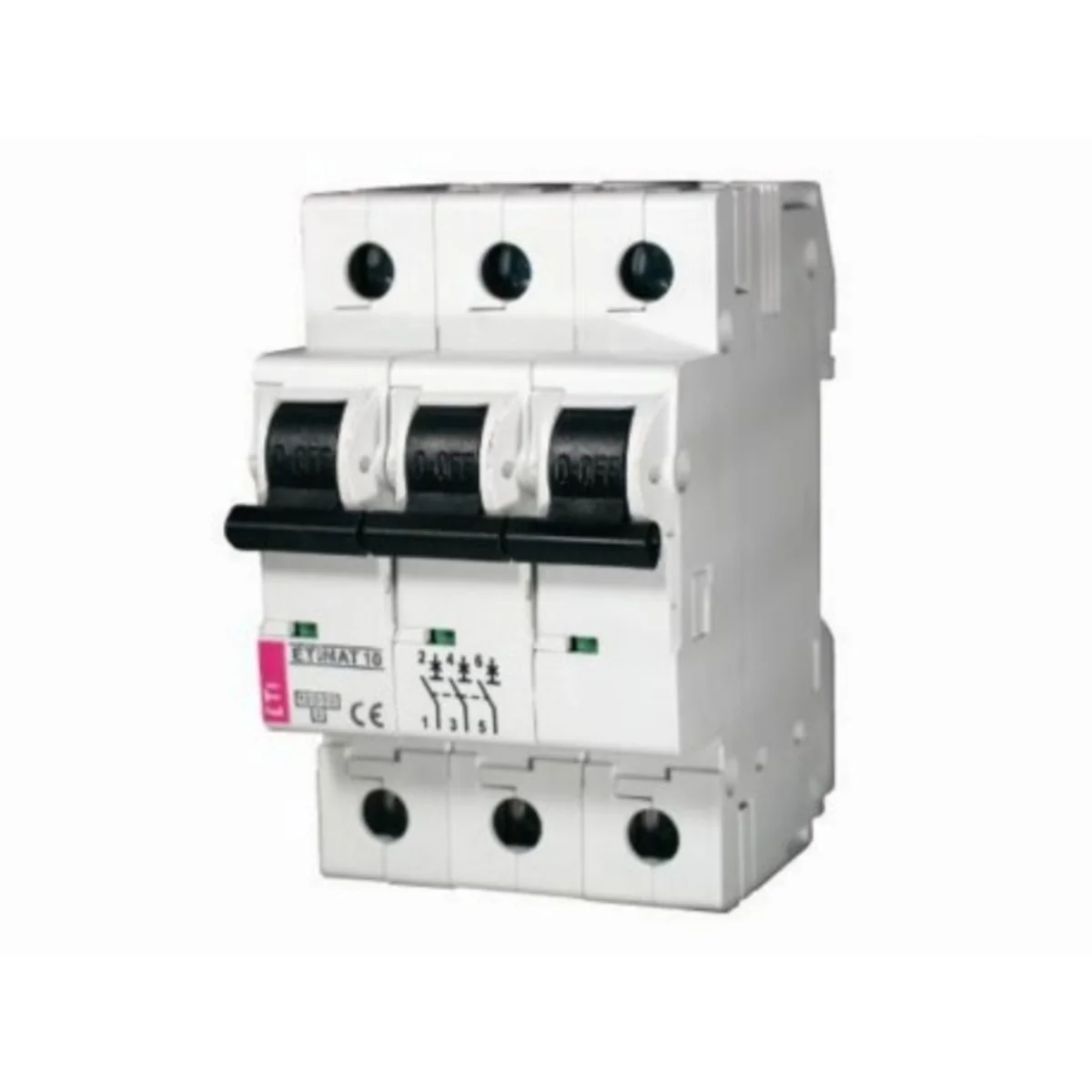

Circuit breaker ETIMAT 6 3p 6kA B20 002115517

local index:
ABB022ETIP
Catalog No:
002115517
EAN code:
3838895258926
Manufacturer: ETI POLAM
Number of poles: 3
Rated current [A]: 20
Short-circuit current [kA]: 6
Price:
13,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 3 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Specification

  • < em style="color: silver;">ETI Code001102104
  • DescriptionGT 30-30-25
  • Weight7.39
  • LevelGT metal cases and accessories
  • Depth25cm
  • Height30cm
  • Width30cm

Technical data

  • Number of poles
    3
  • Short-circuit current [kA]
    6
  • Rated current [A]
    20
  • PKWIU
    27.12.22.0

Other technical data

  • Built-in depth
    68 mm
  • Number of poles (total)
    3
  • Rated current
    20 A
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    Other
  • Frequency
    50 ... 60 Hz
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Release characteristic
    B
  • Number of protected poles
    3
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    6 kA
  • Current limiting class
    3
  • Pollution degree
    3
  • Width in number of modular spacings
    3
  • Ambient temperature during operating
    -25 ... 55 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
