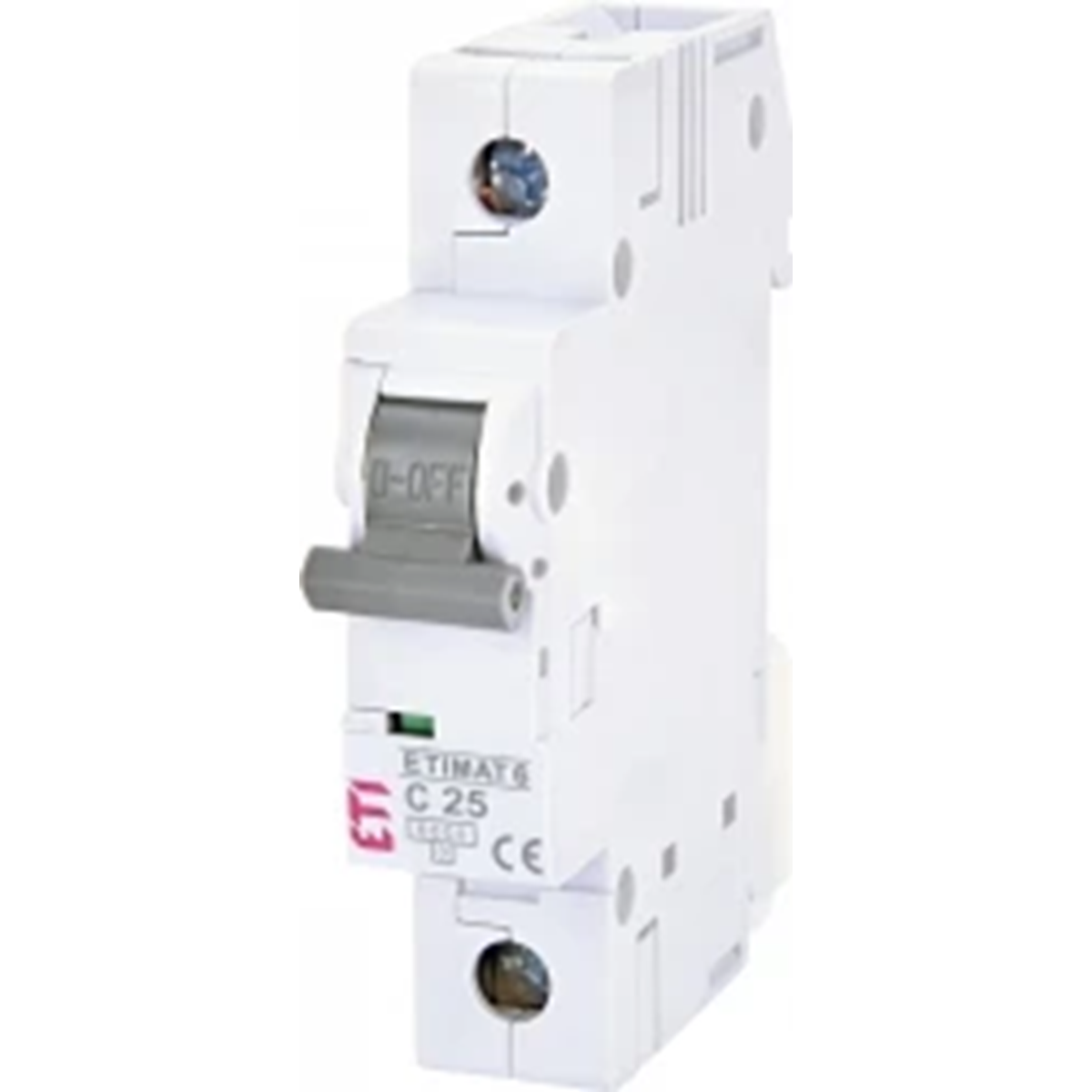

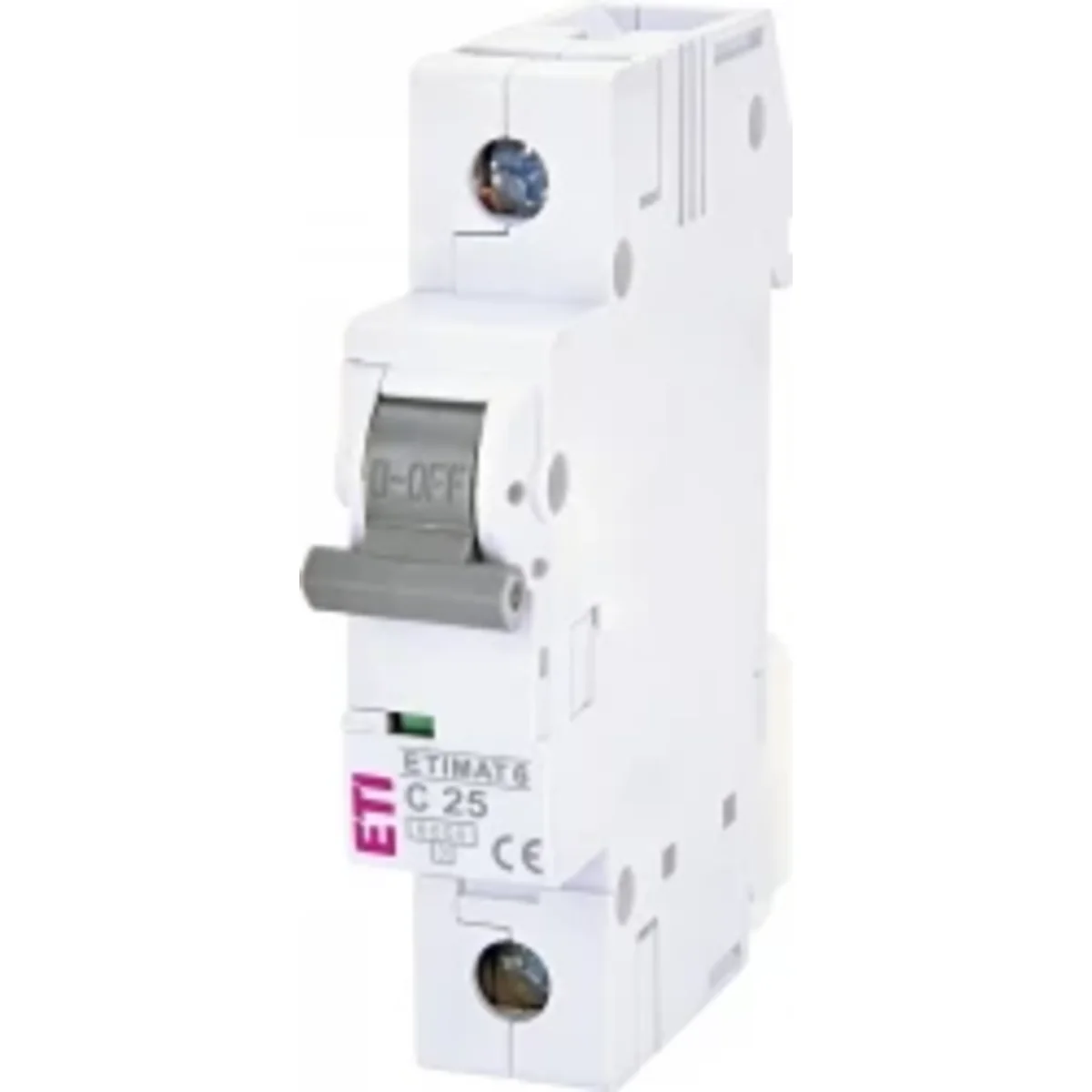

Circuit breaker ETIMAT 6 1p 6kA C25 002141518
local index:
ABC014ETIP
Catalog No:
002141518
EAN code:
3838895260981
Click on the photo to enlarge
Manufacturer:
ETI POLAM
Number of poles:
1
Rated current [A]:
25
Short-circuit current [kA]:
6
See full description
Price:
4,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 21 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Files to download
Product description
Specification
< em style="color: silver;">ETI Code
002141518
Description
ETIMAT 6 1p C25
Weight
.105
Level
Current Circuit Breakers & Accessories
Catalog group
ETIMAT 6 6kA overcurrent circuit breakers
< li style="display: block; border-bottom-width: 1px; border-bottom-style: solid; border-bottom-color: rgb(225, 225, 225); min-width: 48%; padding: 2px 4px; overflow: hidden;">
Function
MCB
Number of poles
1p
Rated Current
25A
Short circuit current
6kA
Trigger characteristics
C
Technical data
Number of poles
1
Short-circuit current [kA]
6
Rated current [A]
25
PKWIU
27.12.22.0
Other technical data
Built-in depth
68 mm
Number of poles (total)
1
Rated current
25 A
Rated impulse withstand voltage Uimp
4 kV
Voltage type
Other
Frequency
50 ... 60 Hz
Over voltage category
3
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
1 ... 25 mm²
Release characteristic
C
Number of protected poles
1
Rated insulation voltage Ui
500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6 kA
Current limiting class
3
Pollution degree
3
Width in number of modular spacings
1
Ambient temperature during operating
-25 ... 55 °C
Connectable conductor cross section solid-core
1 ... 25 mm²
Bulk packaging
A kind of package
Pudełko
Pudełko
Quantity
12 pcs.
108 pcs.
Weight (kg)
1,425
-
Volume (m3)
0,002
-
Width (m)
0,092
-
Length (m)
0,220
-
Depth (m)
0,078
-
Files to download
ETIMAT 6.pdf
PL010318V4.pdf
ETIMAT 6.pdf
PL010318V4.pdf
