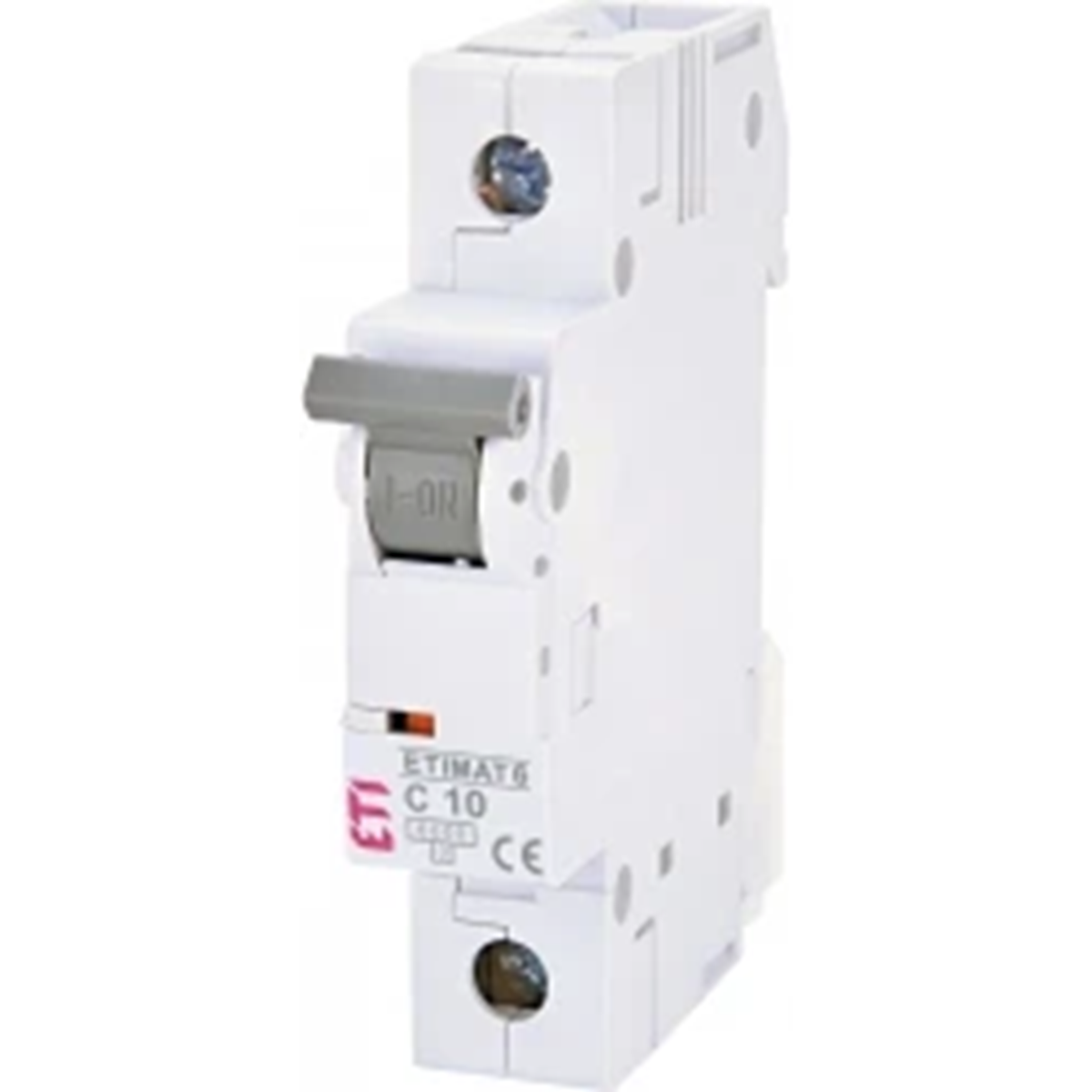

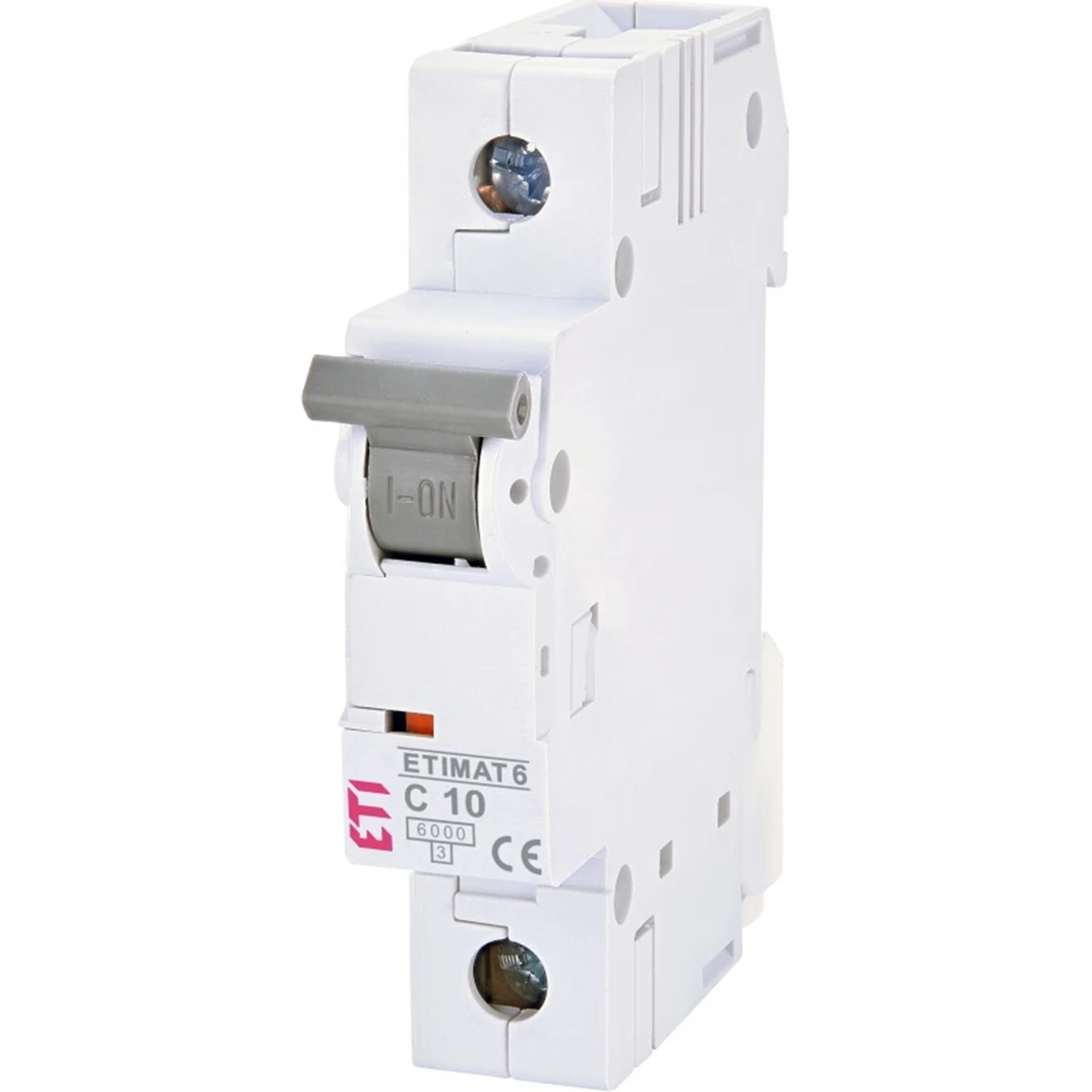

Circuit breaker ETIMAT 6 1p 6kA C10 002141514

local index:
ABC008ETIP
Catalog No:
002141514
EAN code:
3838895260745
Manufacturer: ETI POLAM
Number of poles: 1
Rated current [A]: 10
Short-circuit current [kA]: 6
Price:
3,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Specification

  • < em style="color: silver;">ETI Code002141514
  • DescriptionETIMAT 6 1p C10
  • Weight.105
  • LevelCurrent Circuit Breakers & Accessories
  • Catalog groupETIMAT 6 6kA overcurrent circuit breakers
  • < li style="display: block; border-bottom-width: 1px; border-bottom-style: solid; border-bottom-color: rgb(225, 225, 225); min-width: 48%; padding: 2px 4px; overflow: hidden;">FunctionMCB
  • Number of poles1p
  • Rated current10A
  • Short circuit current6kA
  • Trigger characteristicsC

Technical data

  • Number of poles
    1
  • Short-circuit current [kA]
    6
  • Rated current [A]
    10
  • PKWIU
    27.12.22.0

Other technical data

  • Built-in depth
    68 mm
  • Number of poles (total)
    1
  • Rated current
    10 A
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    Other
  • Frequency
    50 ... 60 Hz
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Release characteristic
    C
  • Number of protected poles
    1
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    6 kA
  • Current limiting class
    3
  • Pollution degree
    3
  • Width in number of modular spacings
    1
  • Ambient temperature during operating
    -25 ... 55 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 12 pcs. 108 pcs.
Weight (kg) 1,425 -
Volume (m3) 0,002 -
Width (m) 0,092 -
Length (m) 0,220 -
Depth (m) 0,078 -
