Electrical apparatus
fuses
Circuit breakers with "D" characteristic

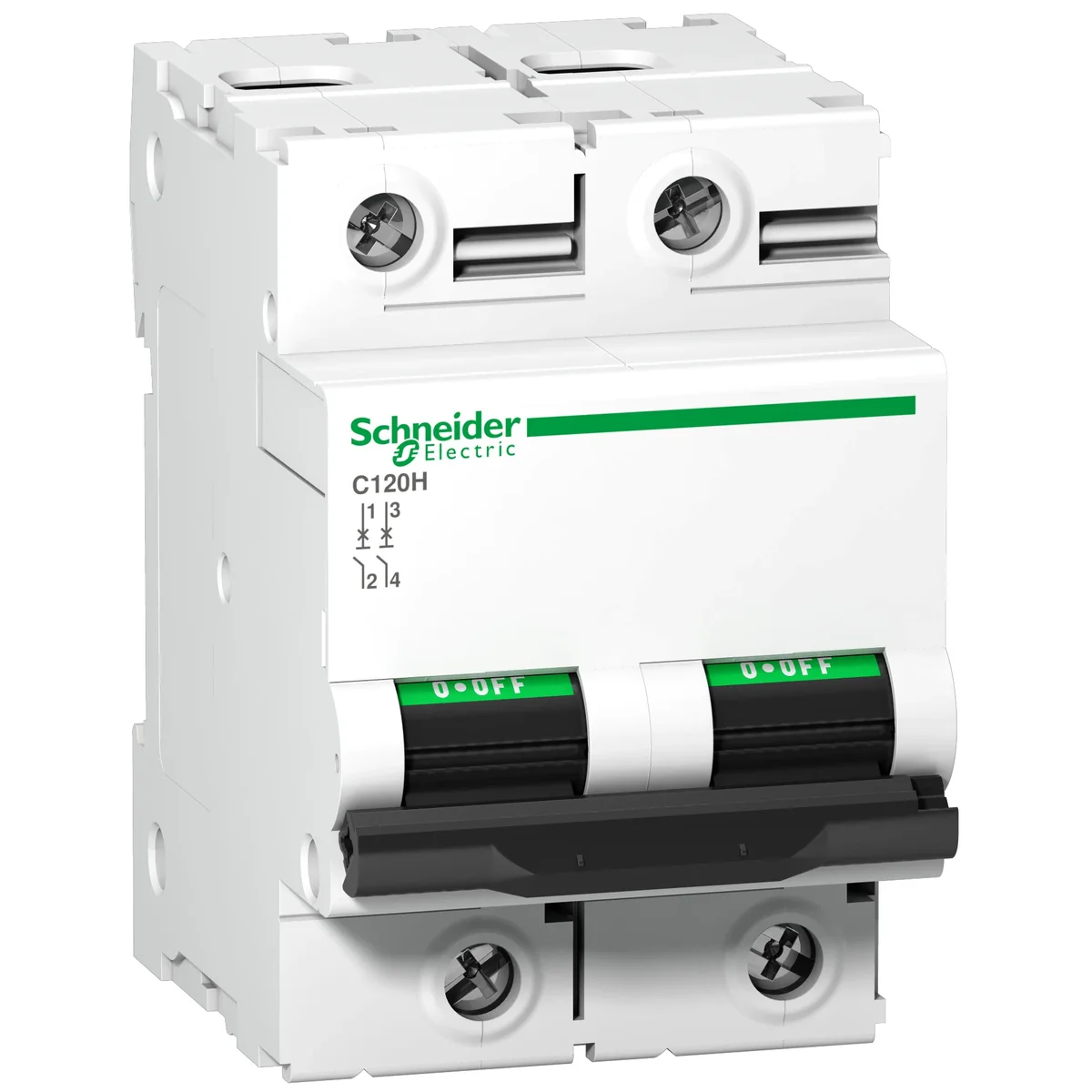

Circuit breaker D 100A 2-pole A9N18502
local index:
ABD036SCHN
Catalog No:
A9N18502
EAN code:
3606480380730
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Characteristic:
d
See full description
Price:
166,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Circuit breaker D 100A 2-pole
Technical data
Characteristic
d
PKWIU
27.12.22.0
Other technical data
Release characteristic
D
Number of protected poles
2
Rated voltage
415 V
Rated impulse withstand voltage Uimp
6 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15 kA
Frequency
50 ... 60 Hz
Concurrently switching neutral conductor
Yes
Pollution degree
3
Width in number of modular spacings
3
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
1 ... 35 mm²
Number of poles (total)
2
Rated current
100 A
Rated insulation voltage Ui
500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
30 kA
Voltage type
AC
Current limiting class
3
Over voltage category
4
Additional equipment possible
Yes
Built-in depth
44 mm
Ambient temperature during operating
-30 ... 60 °C
Connectable conductor cross section solid-core
1.5 ... 50 mm²
Files to download
FD16032903D_C120_iKQ.pdf
