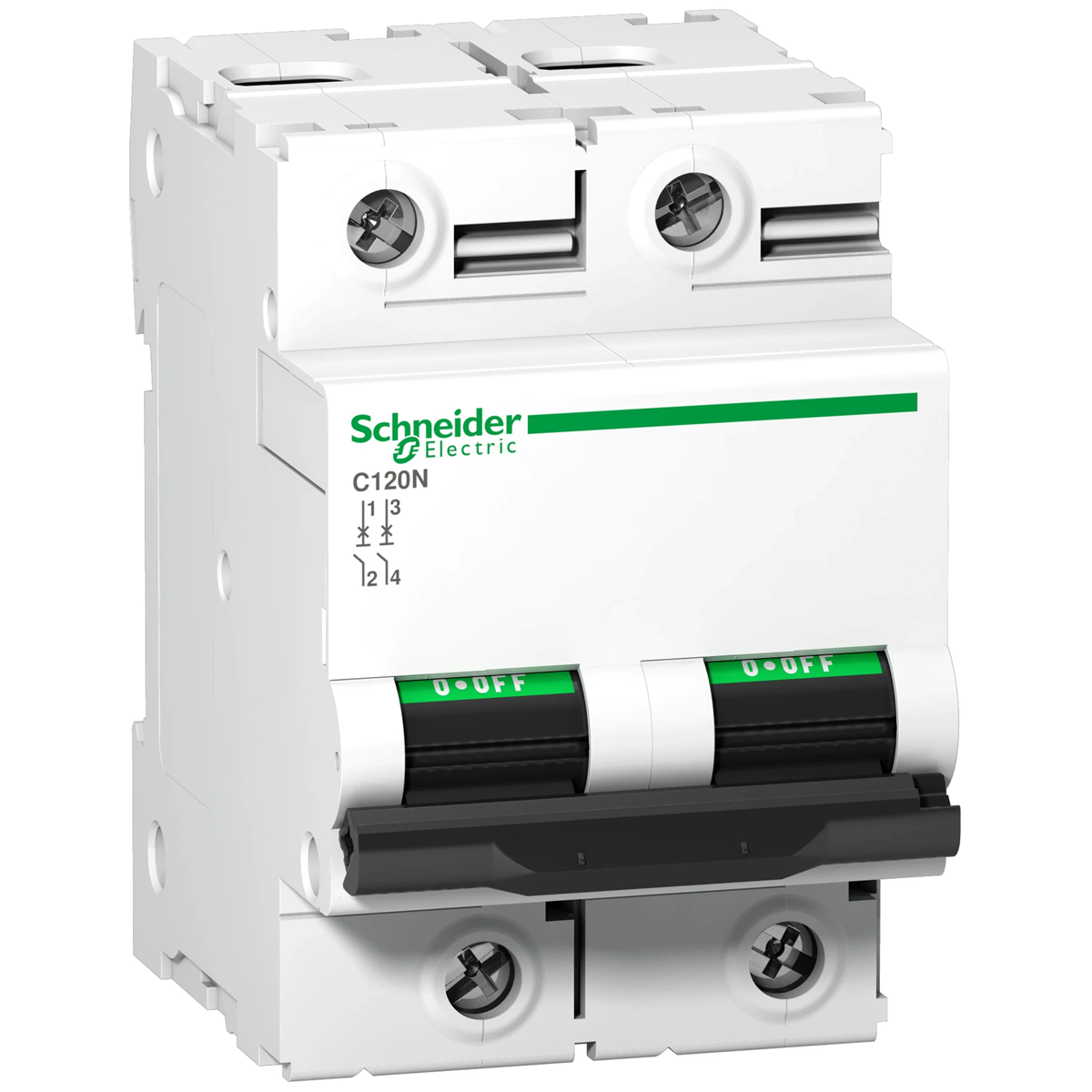

Circuit breaker D 100A 2-pole A9N18384

local index:
ABD050SCHN
Catalog No:
A9N18384
EAN code:
3606480379550
Manufacturer: SCHNEIDER ELECTRIC
Characteristic: d
Price:
136,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Circuit breaker D 100A 2-pole

Technical data

  • Characteristic
    d
  • PKWIU
    27.12.22.0

Other technical data

  • Release characteristic
    D
  • Number of protected poles
    2
  • Rated voltage
    415 V
  • Rated impulse withstand voltage Uimp
    6 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    10 kA
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    Yes
  • Pollution degree
    3
  • Width in number of modular spacings
    3
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 35 mm²
  • Number of poles (total)
    2
  • Rated current
    100 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    20 kA
  • Voltage type
    AC
  • Current limiting class
    3
  • Over voltage category
    4
  • Additional equipment possible
    Yes
  • Built-in depth
    44 mm
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1.5 ... 50 mm²
