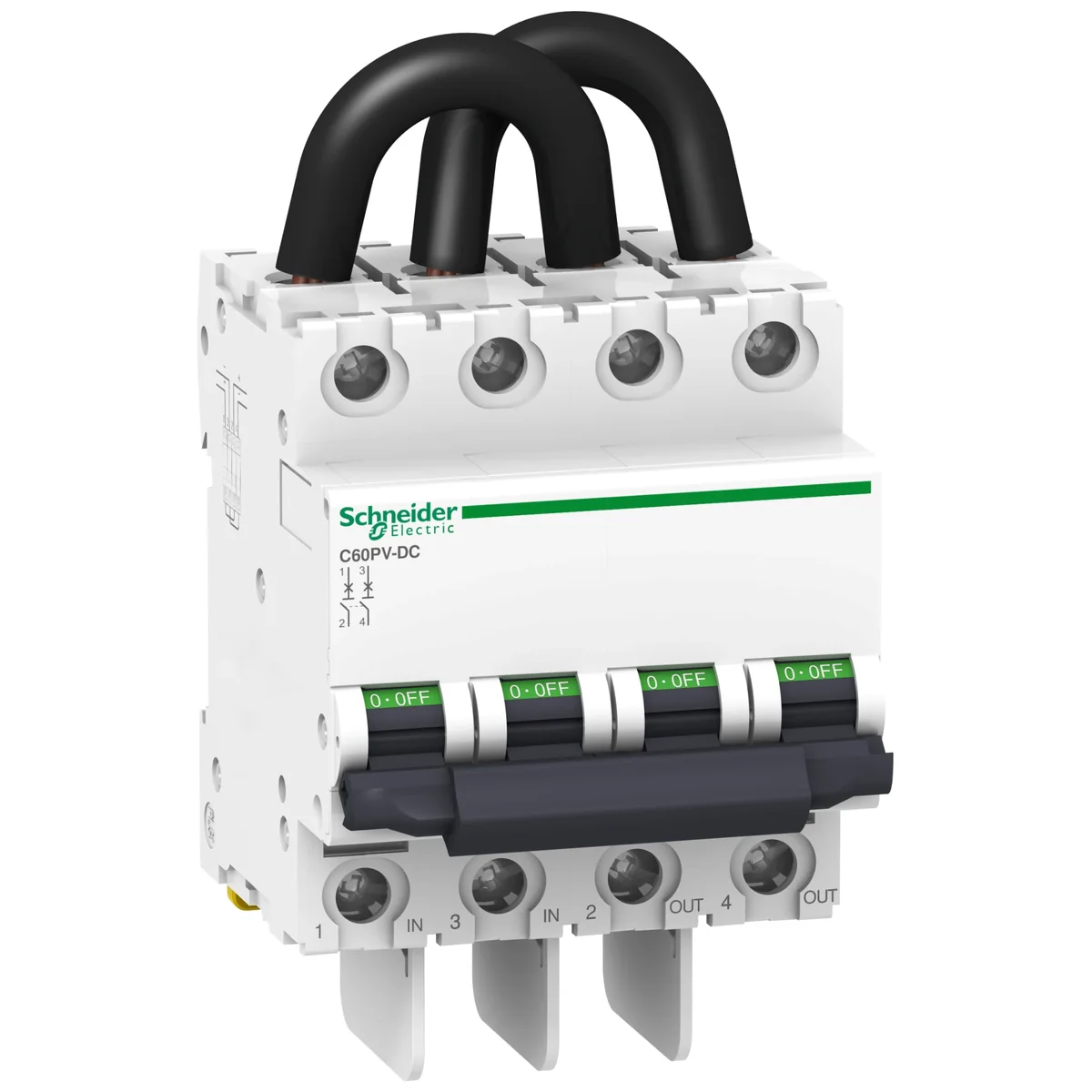

Circuit breaker C60PV-DC-10 10A 2-pole A9N61650

local index:
ABC012SCHN
Catalog No:
A9N61650
EAN code:
3606480504068
Manufacturer: SCHNEIDER ELECTRIC
Characteristic: b
Price:
52,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Circuit breaker C60PV-DC-10 10A 2-pole

Technical data

  • Characteristic
    b
  • PKWIU
    27.12.22.0

Other technical data

  • Release characteristic
    B
  • Number of protected poles
    2
  • Rated voltage
    800 V
  • Rated impulse withstand voltage Uimp
    6 kV
  • Frequency
    50 ... 50 Hz
  • Over voltage category
    4
  • Additional equipment possible
    Yes
  • Built-in depth
    44 mm
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Number of poles (total)
    2
  • Rated current
    10 A
  • Rated insulation voltage Ui
    1000 V
  • Voltage type
    DC
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    4
  • Degree of protection (IP)
    IP40
  • Connectable conductor cross section multi-wired
    1 ... 16 mm²
