Circuit breakers with "D" characteristic

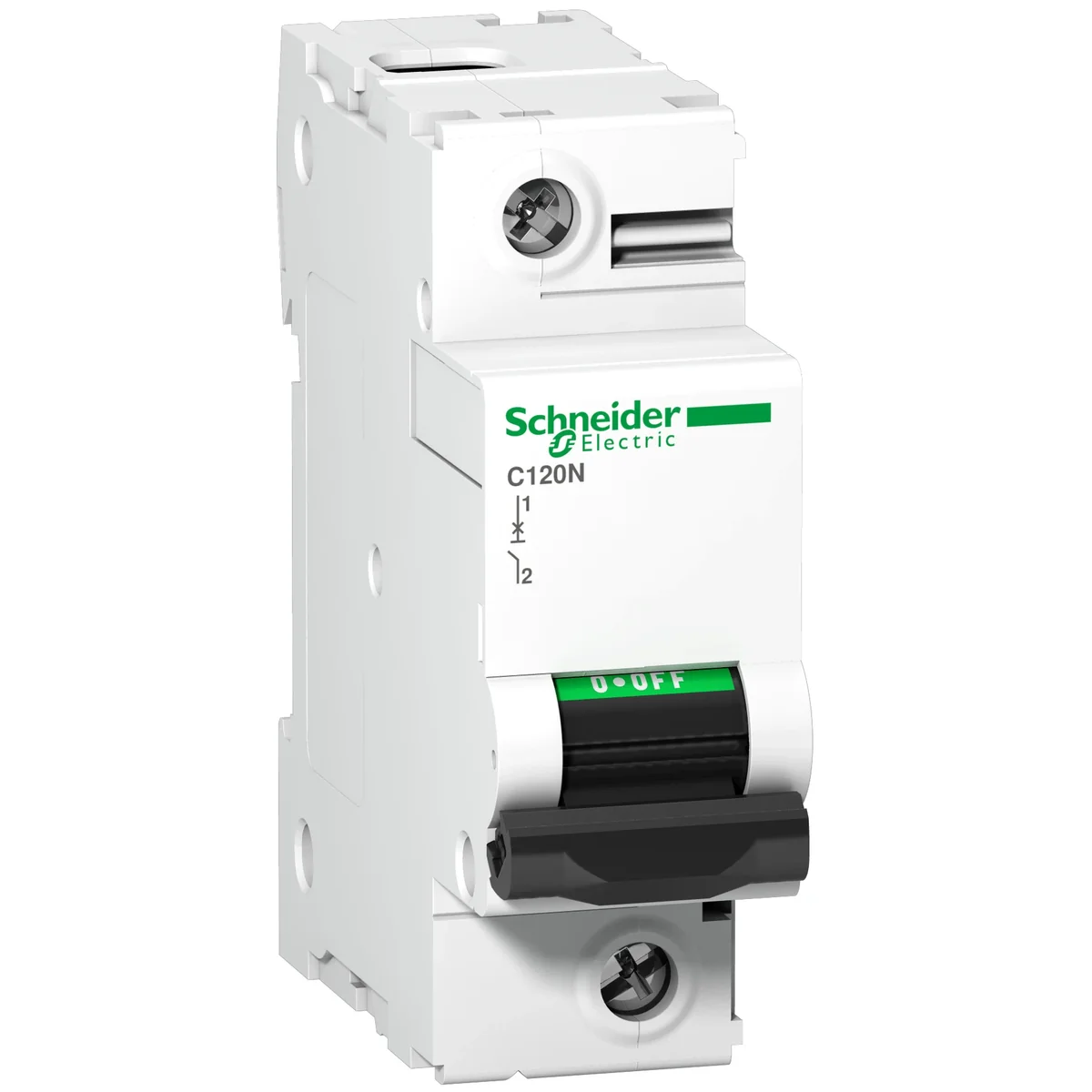

Circuit breaker C120N-D125-1 D 125A 1-pole A9N18381
local index:
ABD001SCHN
Catalog No:
A9N18381
EAN code:
3606480379529
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Characteristic:
d
See full description
Price:
40,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Manufacturer details
Files to download
Product description
Circuit breaker C120N-D125-1 D 125A 1-pole
Technical data
Characteristic
d
PKWIU
27.12.22.0
Other technical data
Release characteristic
D
Number of protected poles
2
Rated voltage
415 V
Rated impulse withstand voltage Uimp
6 kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10 kA
Voltage type
AC
Current limiting class
3
Over voltage category
4
Additional equipment possible
Yes
Built-in depth
44 mm
Ambient temperature during operating
-25 ... 70 °C
Connectable conductor cross section solid-core
1.5 ... 50 mm²
Number of poles (total)
1
Rated current
125 A
Rated insulation voltage Ui
500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
3 kA
Frequency
50 ... 60 Hz
Concurrently switching neutral conductor
No
Pollution degree
3
Width in number of modular spacings
1.5
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
1 ... 35 mm²
Manufacturer details
Manufacturer
Schneider Electric Polska Sp. z o.o.
Address
02-673 Warszawa ul. Konstruktorska 12
Phone number
225844377
E-mail
pawel.wichur@pl.schneider-electric.com
WWW
https://www.schneiderelectric.com
Tax identification number
5220011965
GLN
5900009931556
Files to download
FD16032903D_C120_iKQ.pdf
