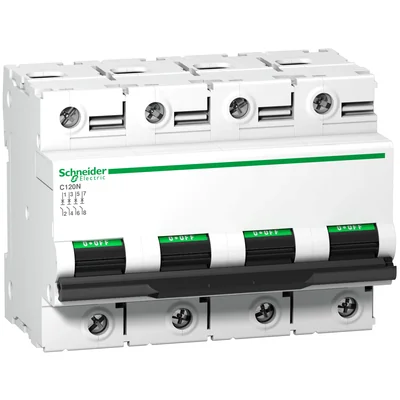

Circuit breaker C120N-C80-4 C 80A 4-pole A9N18372

Name: Circuit breaker C120N-C80-4 C 80A 4-pole
Brand: SCHNEIDER ELECTRIC
SKU: ABC004SCHN
Price: 211.13 PLN

Indice locale:

ABC004SCHN

Numero di catalogo:

A9N18372

Codice EAN:

3606480379437

Clicca sulla foto per ingrandire

Produttore: SCHNEIDER ELECTRIC

Characteristic: c

Vedi la descrizione completa

Prezzo:

211,13 €

gross / pezzi

(inclusa IVA 23%)

Consegna in 3 ore

2 settimane

Raccolta in 1h

Quantità pezzi

(multiplo:

1

)

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore File da scaricare

Descrizione del prodotto

Circuit breaker C120N-C80-4 C 80A 4-pole

Release characteristic

C
Number of protected poles

4
Rated voltage

400 V
Rated impulse withstand voltage Uimp

6 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

Yes
Pollution degree

3
Width in number of modular spacings

6
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 35 mm²

Number of poles (total)

4
Rated current

80 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

20 kA
Voltage type

AC
Current limiting class

3
Over voltage category

4
Additional equipment possible

Yes
Built-in depth

44 mm
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1.5 ... 50 mm²
