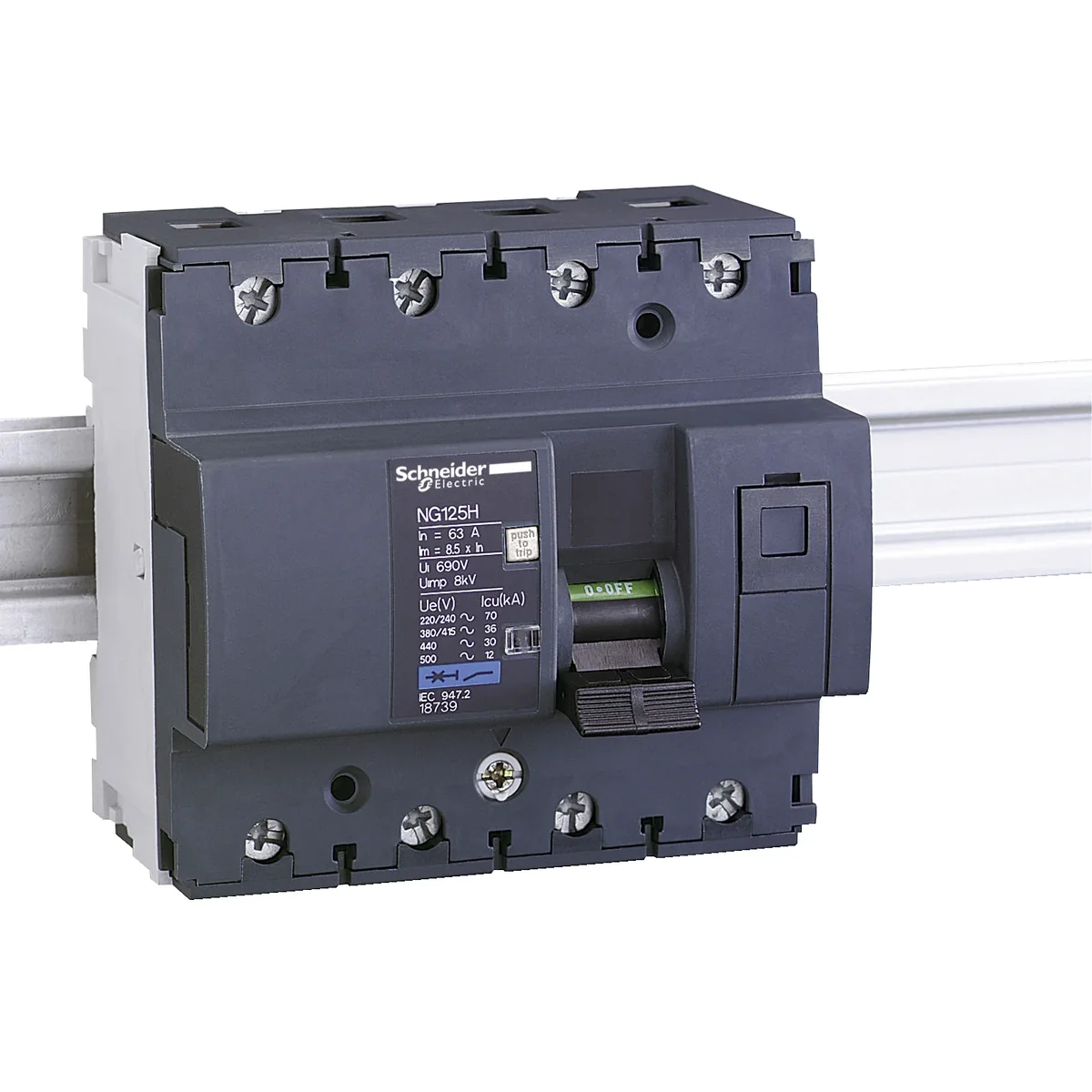

Circuit breaker C 63A 4-pole 18739

local index:
ABC376SCHN
Catalog No:
18739
EAN code:
3303430187394
Manufacturer: SCHNEIDER ELECTRIC
Characteristic: c
Price:
319,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Circuit breaker C 63A 4-pole

Technical data

  • Characteristic
    c
  • PKWIU
    27.12.22.0

Other technical data

  • Release characteristic
    C
  • Number of protected poles
    4
  • Rated voltage
    415 V
  • Rated impulse withstand voltage Uimp
    8 kV
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    36 kA
  • Frequency
    50 ... 60 Hz
  • Over voltage category
    4
  • Additional equipment possible
    Yes
  • Built-in depth
    47 mm
  • Ambient temperature during operating
    -30 ... 70 °C
  • Connectable conductor cross section solid-core
    1.5 ... 50 mm²
  • Number of poles (total)
    4
  • Rated current
    63 A
  • Rated insulation voltage Ui
    690 V
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    70 kA
  • Voltage type
    AC/DC
  • Concurrently switching neutral conductor
    Yes
  • Pollution degree
    3
  • Width in number of modular spacings
    6
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 35 mm²
