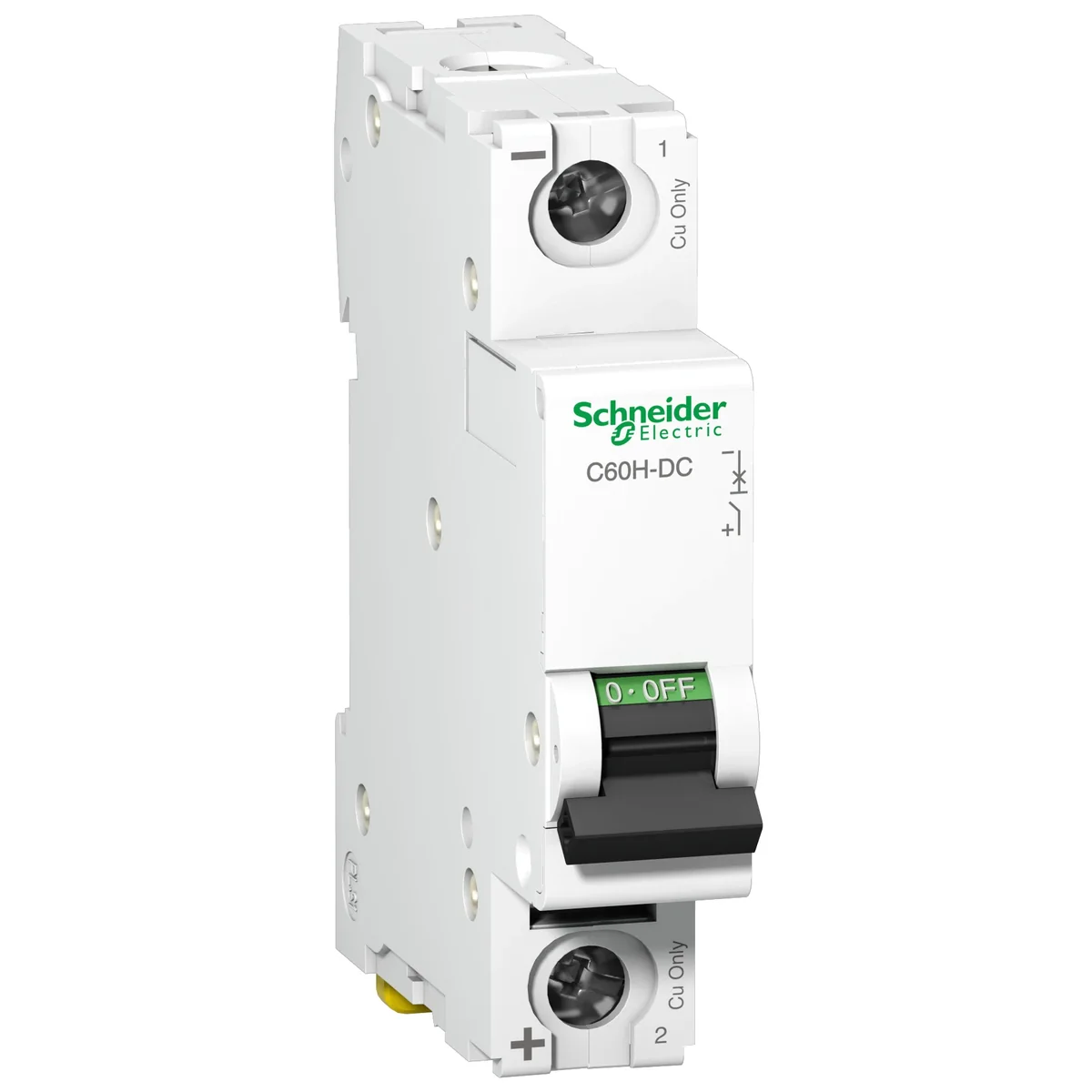

Circuit breaker C 50A 1-pole A9N61518
local index:
ABC167SCHN
Catalog No:
A9N61518
EAN code:
3606480424182
Manufacturer:
SCHNEIDER ELECTRIC
Characteristic: c
Price:
19,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Circuit breaker C 50A 1-pole
Technical data
-
Characteristicc
-
PKWIU27.12.22.0
Other technical data
-
Release characteristicC
-
Number of protected poles1
-
Rated voltage220 V
-
Rated impulse withstand voltage Uimp6 kV
-
Concurrently switching neutral conductorNo
-
Pollution degree3
-
Width in number of modular spacings2
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Number of poles (total)1
-
Rated current50 A
-
Rated insulation voltage Ui500 V
-
Voltage typeDC
-
Over voltage category4
-
Additional equipment possibleYes
-
Built-in depth44 mm
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section solid-core1 ... 35 mm²
