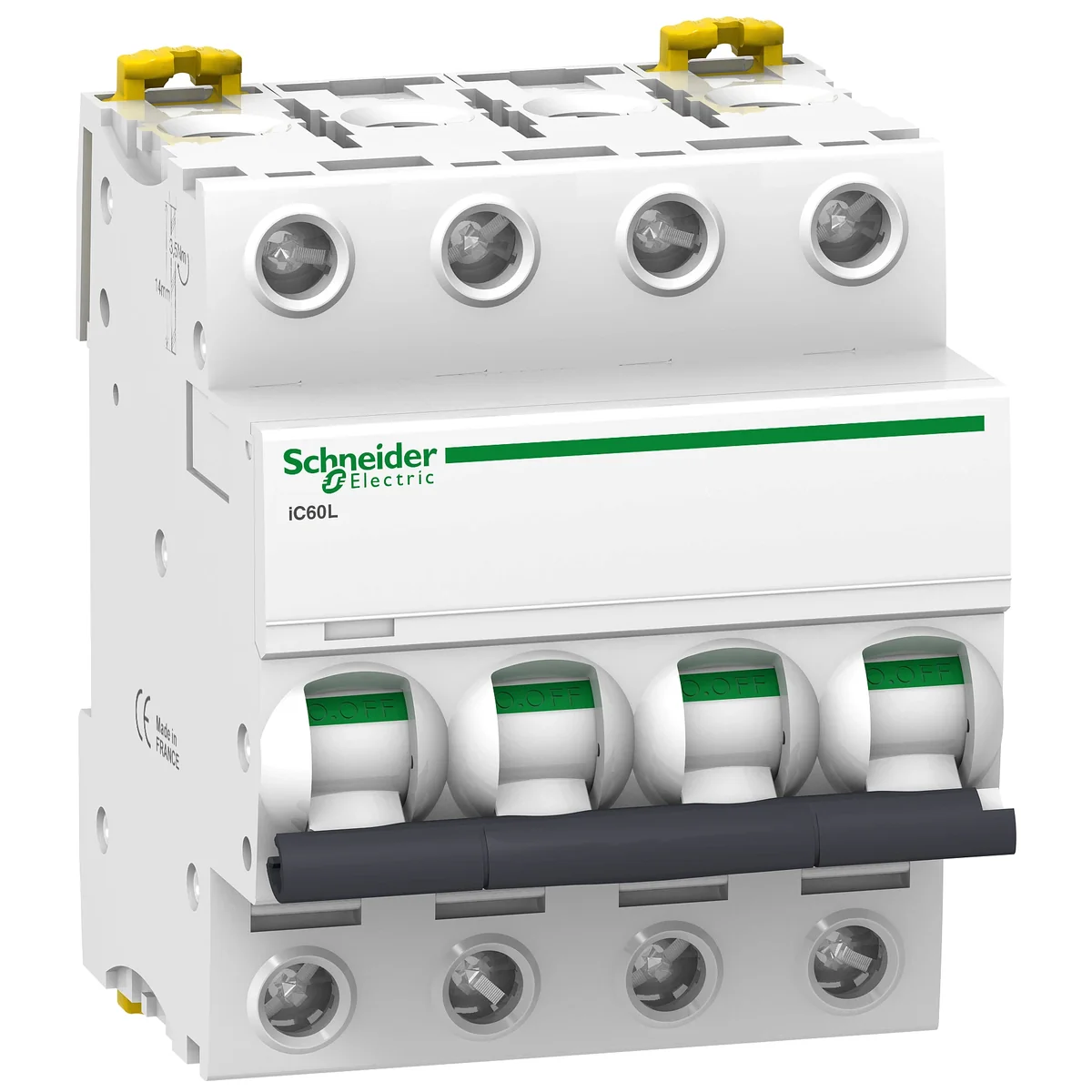

Circuit breaker C 40A 4-pole A9F95440

Índice local:
ABC283SCHN
Número de catálogo:
A9F95440
Código EAN:
3606480085154
Precio:
274,30 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
2 semanas
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir al portapapeles
Imprimir

Descripción del producto

Circuit breaker C 40A 4-pole

Datos técnicos

  • Characteristic
    c
  • PKWIU
    27.12.22.0

Otros datos técnicos

  • Release characteristic
    K
  • Number of protected poles
    4
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    6 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    15 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    20 kA
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    3
  • Width in number of modular spacings
    4
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Number of poles (total)
    4
  • Rated current
    40 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    15 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    36 kA
  • Voltage type
    AC/DC
  • Current limiting class
    3
  • Over voltage category
    4
  • Additional equipment possible
    Yes
  • Built-in depth
    44.5 mm
  • Ambient temperature during operating
    -35 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 35 mm²

Detalles del fabricante

  • Fabricante
    Schneider Electric Polska Sp. z o.o.
  • Dirección
    02-673 Warszawa ul. Konstruktorska 12
  • NIF
    5220011965
