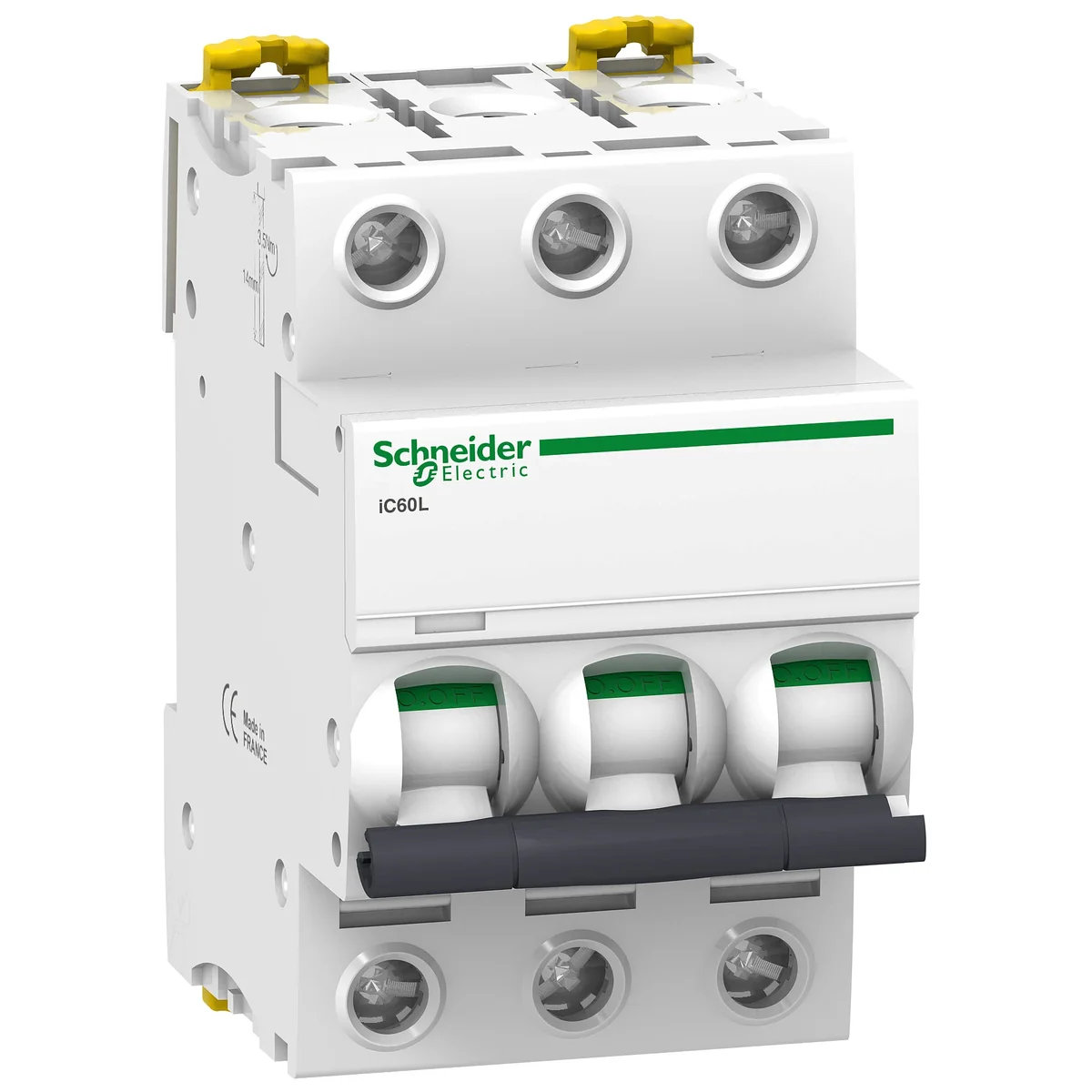

Circuit breaker C 40A 3-pole A9F95340

Name: Circuit breaker C 40A 3-pole
Brand: SCHNEIDER ELECTRIC
SKU: ABC282SCHN
Price: 213.11 PLN

local index:

ABC282SCHN

Catalog No:

A9F95340

EAN code:

3606480085048

Click on the photo to enlarge

Manufacturer: SCHNEIDER ELECTRIC

Characteristic: c

See full description

Price:

213,11 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

2 weeks

Pickup in 1h

Quantity pcs.

(multiplicity:

1

)

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Files to download

Product description

Circuit breaker C 40A 3-pole

Release characteristic

K
Number of protected poles

3
Rated voltage

400 V
Rated impulse withstand voltage Uimp

6 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

20 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

3
Width in number of modular spacings

3
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Number of poles (total)

3
Rated current

40 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

36 kA
Voltage type

AC/DC
Current limiting class

3
Over voltage category

4
Additional equipment possible

Yes
Built-in depth

44.5 mm
Ambient temperature during operating

-35 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²
