Circuit breaker C 16A 1-pole 18778
local index:
ABC386SCHN
Catalog No:
18778
EAN code:
3303430187783
Manufacturer:
SCHNEIDER ELECTRIC
Characteristic: c
Price:
91,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

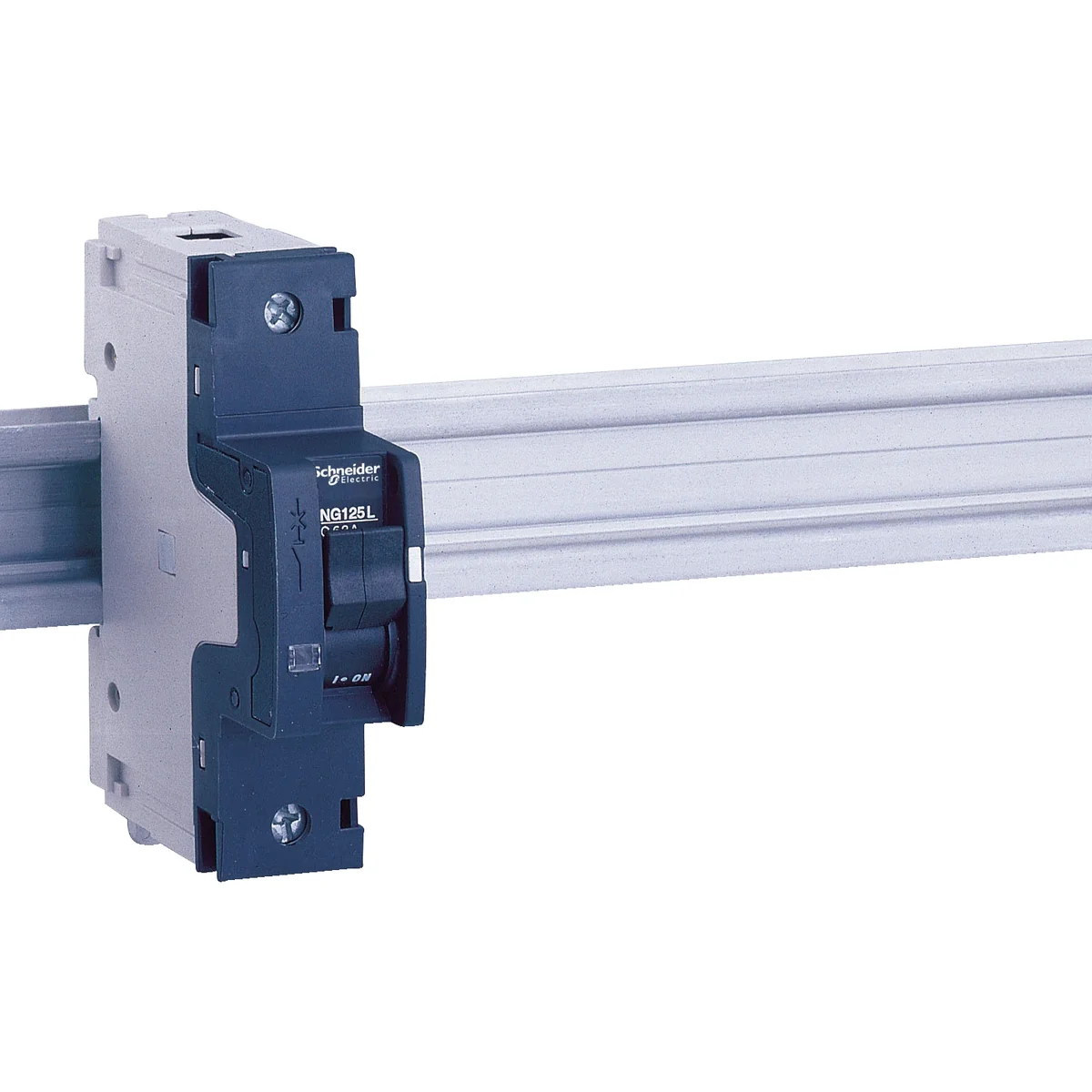

Circuit breaker C 16A 1-pole
Technical data
-
Characteristicc
-
PKWIU27.12.22.0
Other technical data
-
Release characteristicC
-
Number of protected poles1
-
Rated voltage400 V
-
Rated impulse withstand voltage Uimp8 kV
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V12.5 kA
-
Frequency50 ... 60 Hz
-
Over voltage category4
-
Additional equipment possibleYes
-
Built-in depth47 mm
-
Ambient temperature during operating-30 ... 70 °C
-
Connectable conductor cross section solid-core1.5 ... 50 mm²
-
Number of poles (total)1
-
Rated current16 A
-
Rated insulation voltage Ui690 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50 kA
-
Voltage typeAC/DC
-
Concurrently switching neutral conductorNo
-
Pollution degree3
-
Width in number of modular spacings1.5
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 35 mm²
