Electrical apparatus
fuses
Circuit breakers with "C" characteristic
Circuit breaker C 125A 4-pole 18662
local index:
ABC409SCHN
Catalog No:
18662
EAN code:
3303430186625
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Characteristic:
c
See full description
Price:
290,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description

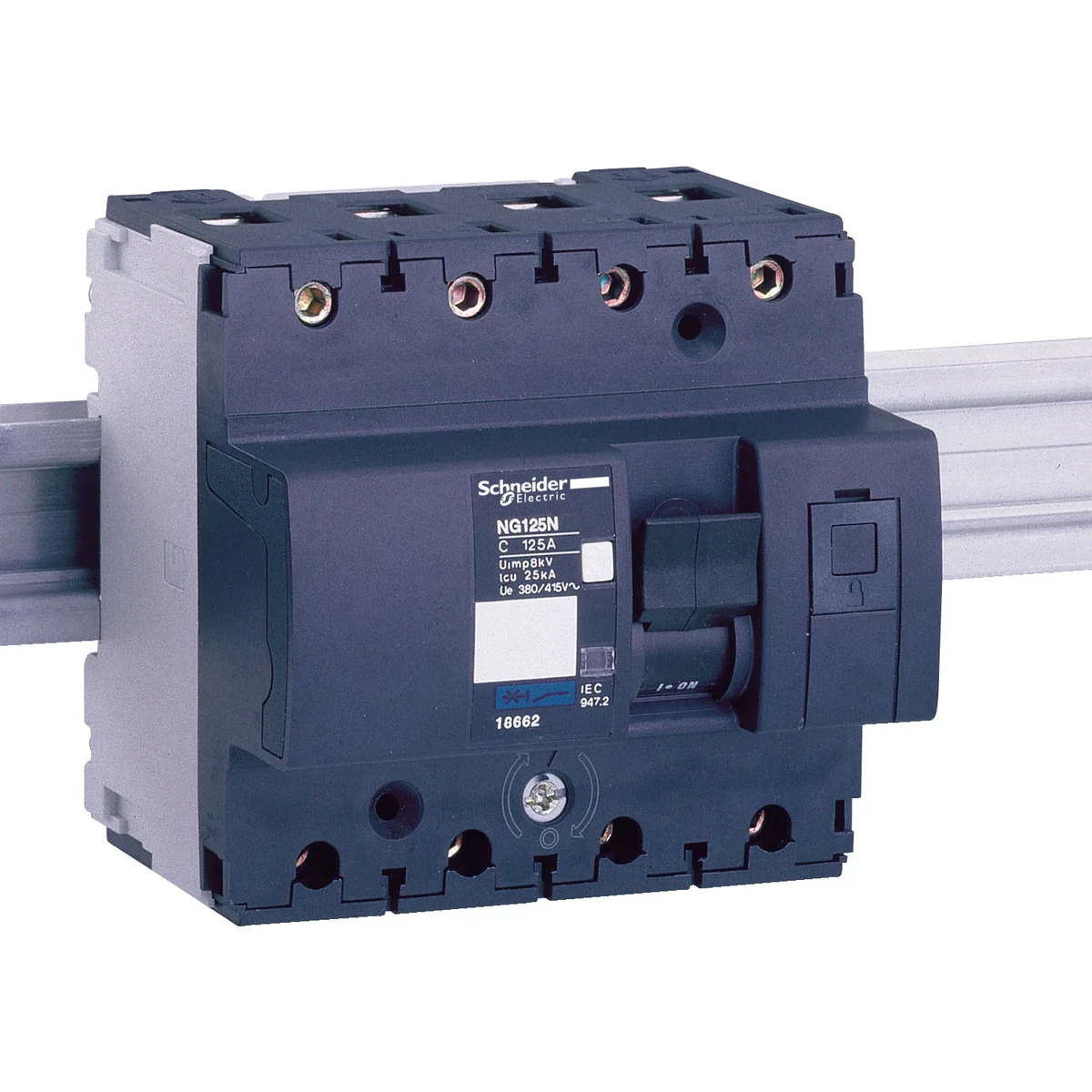

Circuit breaker C 125A 4-pole
Technical data
Characteristic
c
PKWIU
27.12.22.0
Other technical data
Release characteristic
C
Number of protected poles
4
Rated voltage
400 V
Rated impulse withstand voltage Uimp
8 kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25 kA
Frequency
50 ... 60 Hz
Over voltage category
4
Additional equipment possible
Yes
Built-in depth
47 mm
Ambient temperature during operating
-30 ... 70 °C
Connectable conductor cross section solid-core
16 ... 70 mm²
Number of poles (total)
4
Rated current
125 A
Rated insulation voltage Ui
690 V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50 kA
Voltage type
AC/DC
Concurrently switching neutral conductor
Yes
Pollution degree
3
Width in number of modular spacings
6
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
10 ... 50 mm²
Files to download
PEP ecopassport SCHN-00599-V01.01-EN.pdf
EoLI_ENVEOLI1406008_V2_1.pdf
4297094AF.pdf
