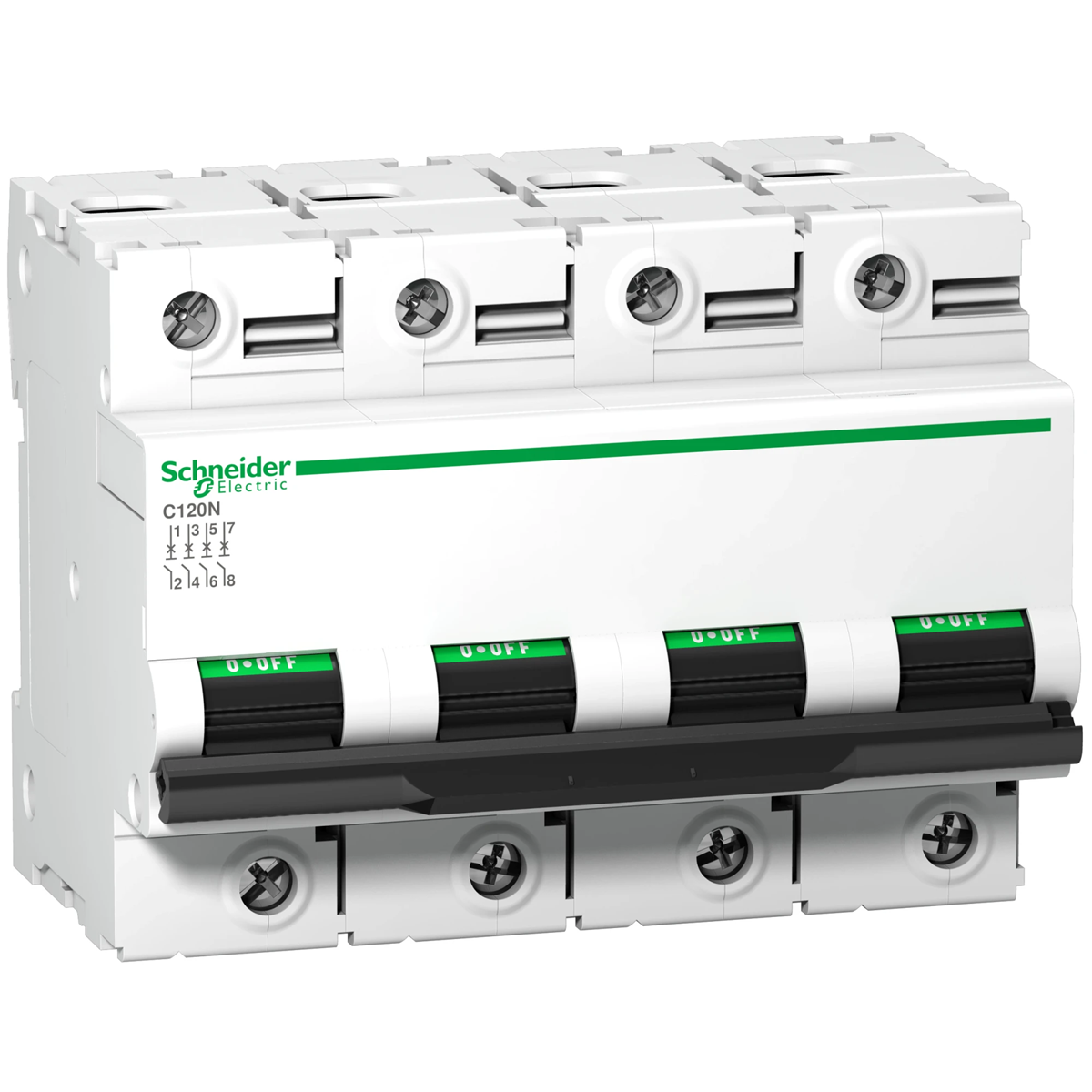

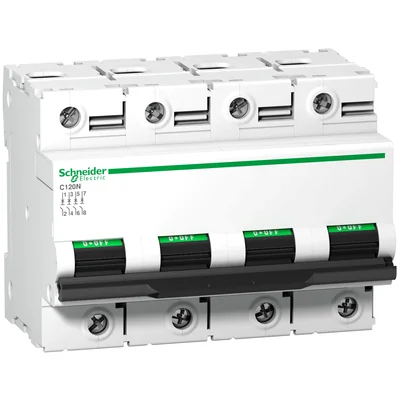

Circuit breaker B 80A 4-pole A9N18353

local index:
ABB116SCHN
Catalog No:
A9N18353
EAN code:
3606480379277
Manufacturer: SCHNEIDER ELECTRIC
Rated current [A]: 80
Price:
205,41 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Circuit breaker B 80A 4-pole

Technical data

  • Rated current [A]
    80
  • PKWIU
    27.12.22.0

Other technical data

  • Release characteristic
    B
  • Number of protected poles
    4
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    6 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    10 kA
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    yes
  • Pollution degree
    3
  • Width in number of modular spacings
    6
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 35 mm²
  • Number of poles (total)
    4
  • Rated current
    80 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    20 kA
  • Voltage type
    AC
  • Current limiting class
    3
  • Over voltage category
    4
  • Additional equipment possible
    yes
  • Built-in depth
    44 mm
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1.5 ... 50 mm²
