Circuit breaker B 63A 3-pole A9F93363
local index:
ABB178SCHN
Catalog No:
A9F93363
EAN code:
3606480083921
Manufacturer:
SCHNEIDER ELECTRIC
Rated current [A]: 63
Price:
214,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

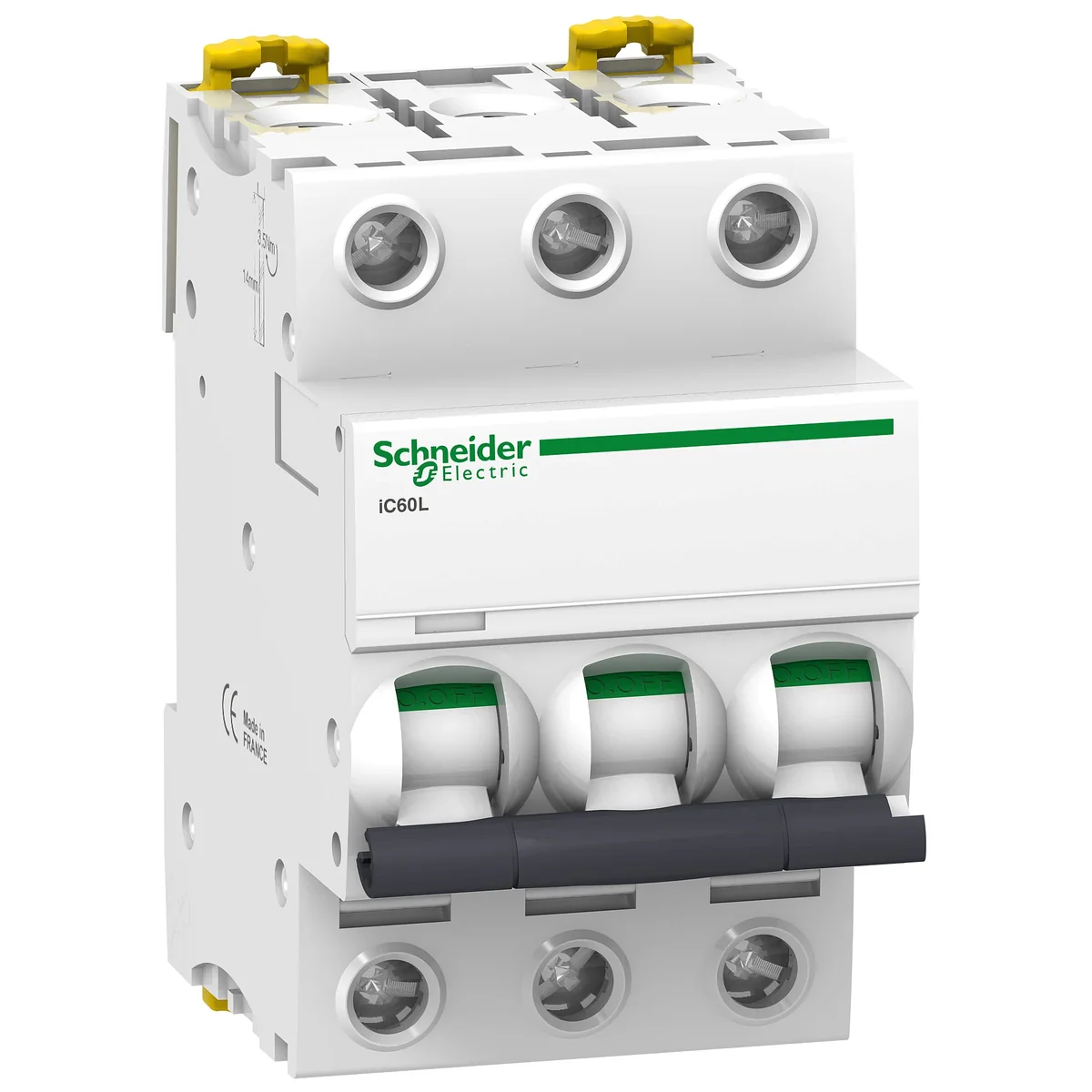

Circuit breaker B 63A 3-pole
Technical data
-
Rated current [A]63
-
PKWIU27.12.22.0
Other technical data
-
Release characteristicB
-
Number of protected poles3
-
Rated voltage400 V
-
Rated impulse withstand voltage Uimp6 kV
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
-
Frequency50 ... 60 Hz
-
Concurrently switching neutral conductorNo
-
Pollution degree3
-
Width in number of modular spacings3
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Number of poles (total)3
-
Rated current63 A
-
Rated insulation voltage Ui500 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V30 kA
-
Voltage typeAC/DC
-
Current limiting class3
-
Over voltage category4
-
Additional equipment possibleYes
-
Built-in depth44.5 mm
-
Ambient temperature during operating-35 ... 70 °C
-
Connectable conductor cross section solid-core1 ... 35 mm²
