Circuit breaker B 50A 4-pole A9F93450

Indice locale:
ABB175SCHN
Numero di catalogo:
A9F93450
Codice EAN:
3606480084058
Rated current [A]: 50
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Prezzo:
151,29 €
gross / pezzi
(inclusa IVA 23%)
Prezzo più basso da 30 giorni prima dello sconto: 533,91 € gross -382,62 €
Prezzo base: 502,43 € gross
Consegna in 3 ore
Accessibile 1 pezzi
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

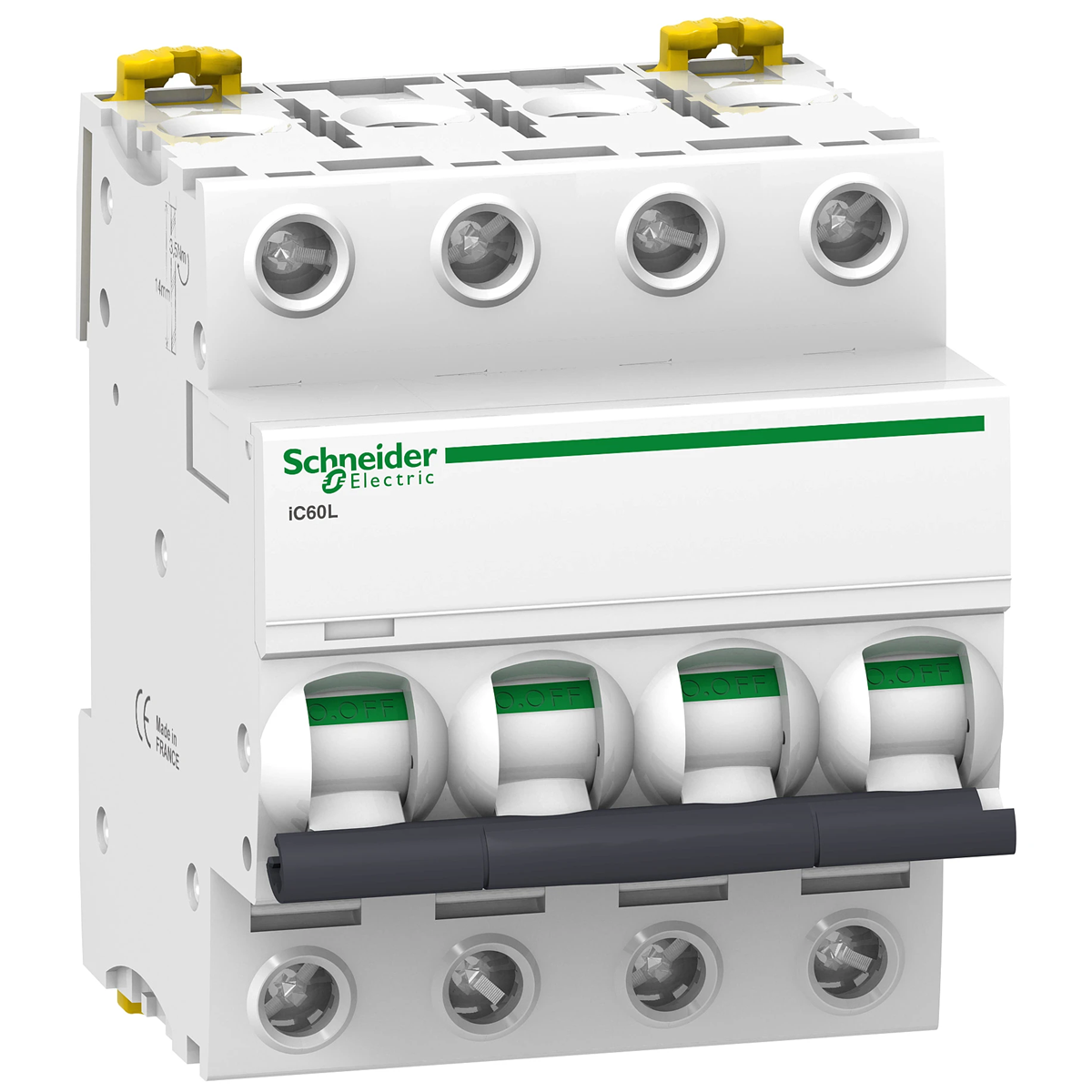

Circuit breaker B 50A 4-pole

Dati tecnici

  • Rated current [A]
    50
  • PKWIU
    27.12.22.0

Altri dati tecnici

  • Release characteristic
    B
  • Number of protected poles
    4
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    6 kV
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    3
  • Width in number of modular spacings
    4
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Number of poles (total)
    4
  • Rated current
    50 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    30 kA
  • Voltage type
    AC/DC
  • Current limiting class
    3
  • Over voltage category
    4
  • Additional equipment possible
    Yes
  • Built-in depth
    44.5 mm
  • Ambient temperature during operating
    -35 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 35 mm²

Dettagli del produttore

  • Produttore
    Schneider Electric Polska Sp. z o.o.
  • Indirizzo
    02-673 Warszawa ul. Konstruktorska 12
  • NIP
    5220011965
