el12
Electrical apparatus
fuses
Circuit breakers with "B" characteristic

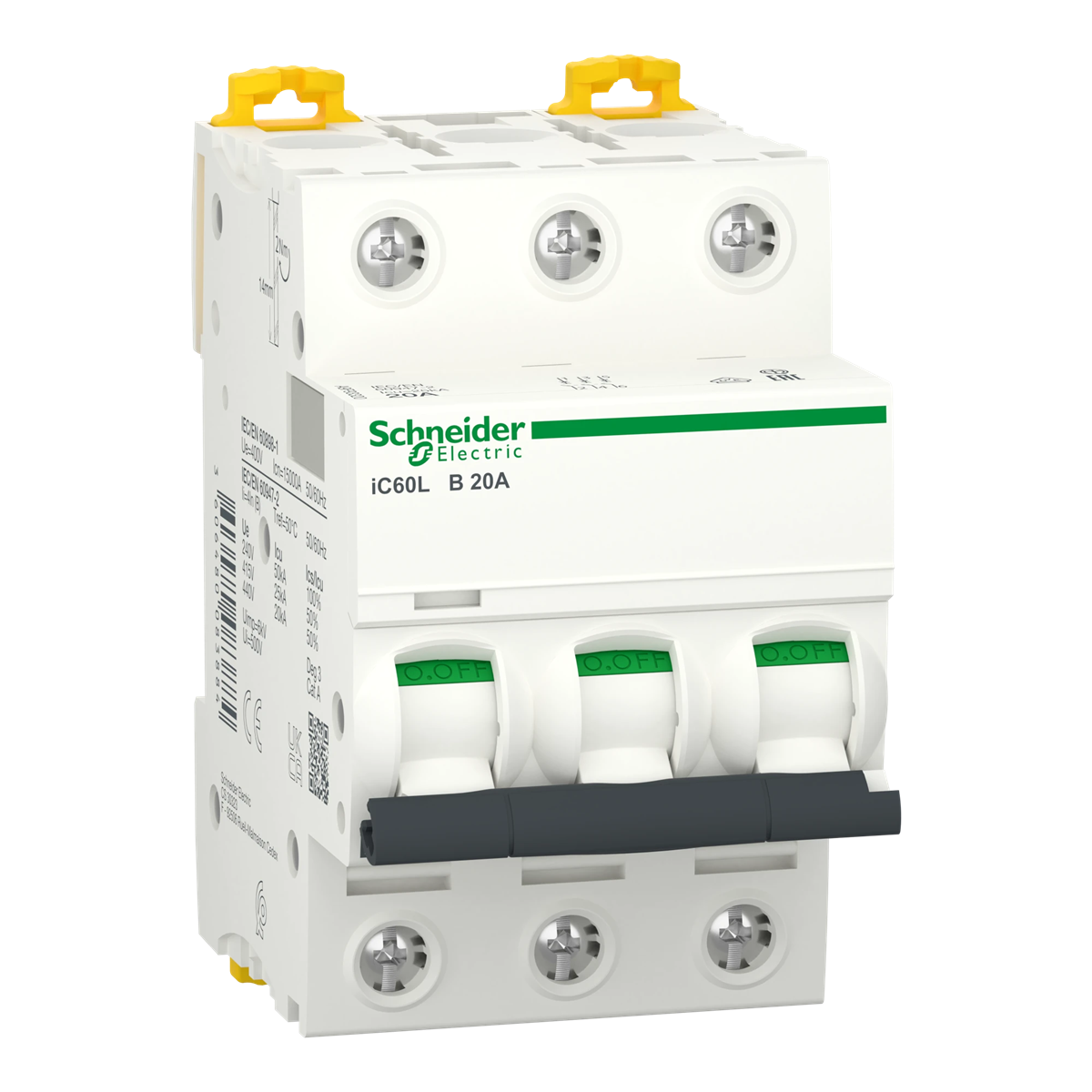

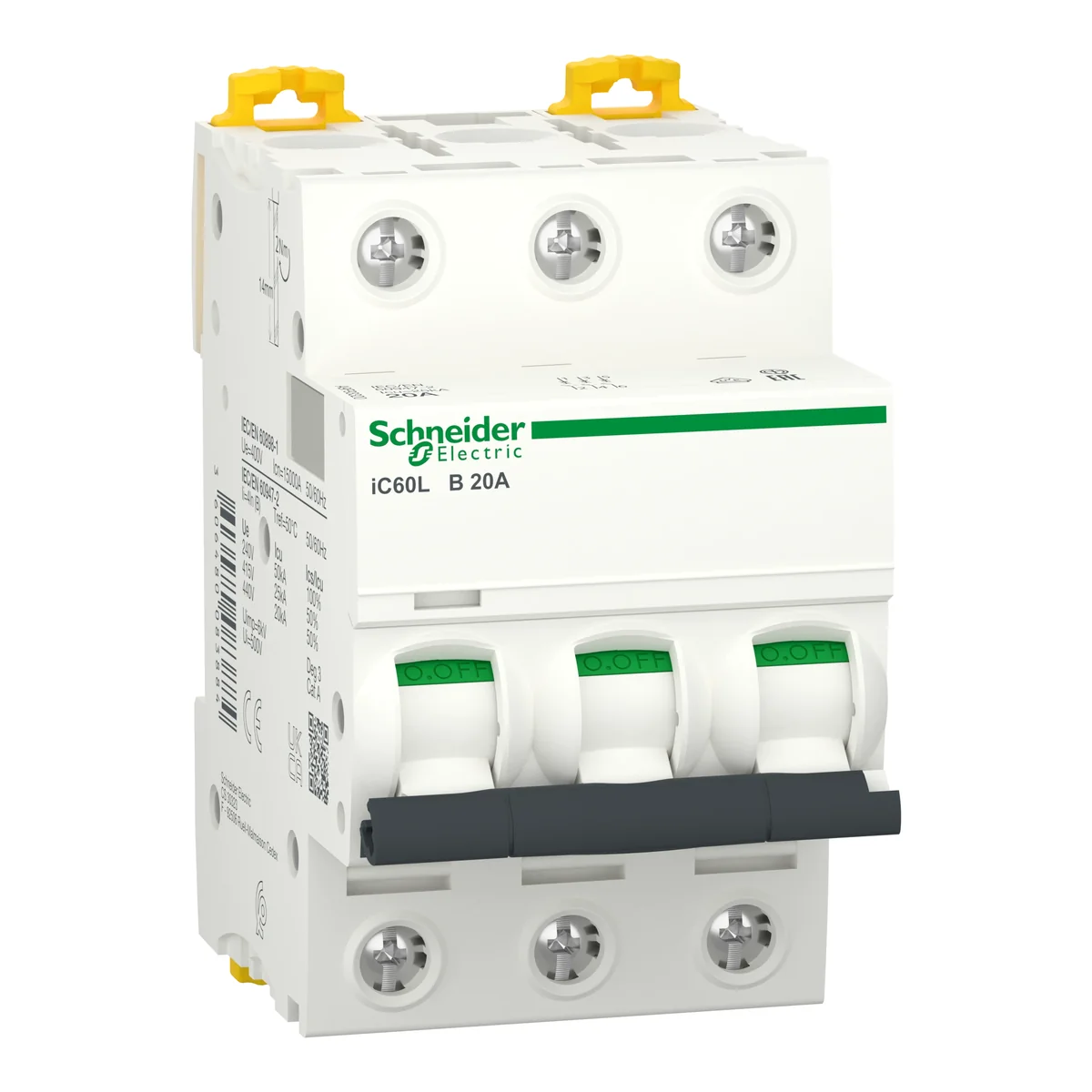

Circuit breaker B 20A 3-pole A9F93320
local index:
ABB158SCHN
Catalog No:
A9F93320
EAN code:
3606480083884
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Rated current [A]:
20
See full description
Price:
131,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Circuit breaker B 20A 3-pole
Technical data
Rated current [A]
20
PKWIU
27.12.22.0
Other technical data
Release characteristic
B
Number of protected poles
3
Rated voltage
400 V
Rated impulse withstand voltage Uimp
6 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25 kA
Frequency
50 ... 60 Hz
Concurrently switching neutral conductor
No
Pollution degree
3
Width in number of modular spacings
3
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
1 ... 16 mm²
Number of poles (total)
3
Rated current
20 A
Rated insulation voltage Ui
500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50 kA
Voltage type
AC/DC
Current limiting class
3
Over voltage category
4
Additional equipment possible
Yes
Built-in depth
44.5 mm
Ambient temperature during operating
-35 ... 70 °C
Connectable conductor cross section solid-core
1 ... 25 mm²
Files to download
PEP_EN_ENVPEP1409009_2.pdf
UK_CA_declaration of conformity_iC60NHL - FD16032918B-UK.pdf
See more >>
