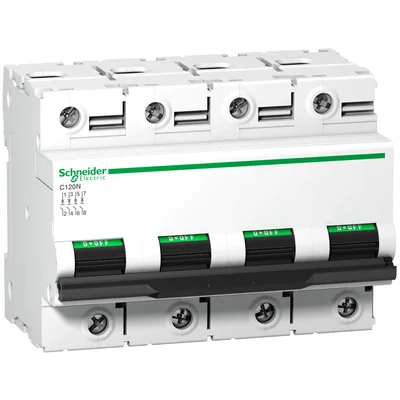

Circuit breaker B 125A 4-pole A9N18355
local index:
ABB098SCHN
Catalog No:
A9N18355
EAN code:
3606480379291
Manufacturer:
SCHNEIDER ELECTRIC
Rated current [A]: 125
Price:
301,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Circuit breaker B 125A 4-pole
Technical data
-
Rated current [A]125
-
PKWIU27.12.22.0
Other technical data
-
Release characteristicB
-
Number of protected poles4
-
Rated voltage400 V
-
Rated impulse withstand voltage Uimp6 kV
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
-
Frequency50 ... 60 Hz
-
Concurrently switching neutral conductorYes
-
Pollution degree3
-
Width in number of modular spacings6
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 35 mm²
-
Number of poles (total)4
-
Rated current125 A
-
Rated insulation voltage Ui500 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20 kA
-
Voltage typeAC
-
Current limiting class3
-
Over voltage category4
-
Additional equipment possibleYes
-
Built-in depth44 mm
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section solid-core1.5 ... 50 mm²
