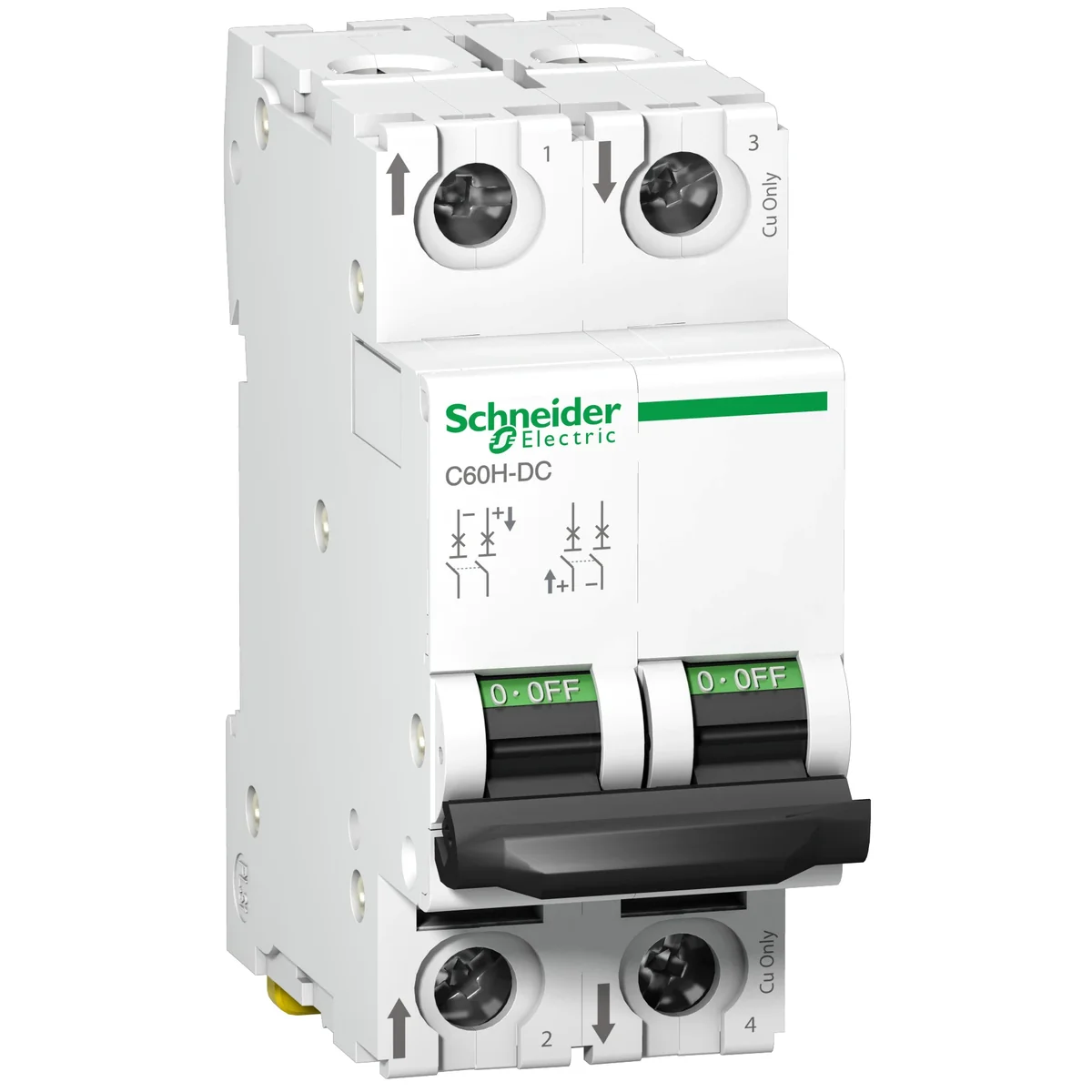

Circuit breaker Acti9 C60H-DC-C40-2 C 40A 2-pole A9N61537

local index:
ABC038SCHN
Catalog No:
A9N61537
EAN code:
3606480424359
Manufacturer: SCHNEIDER ELECTRIC
Characteristic: c
Number of poles: 2
Rated current [A]: 40
Price:
53,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Circuit breaker Acti9 C60H-DC-C40-2 C 40A 2-pole

Technical data

  • Characteristic
    c
  • Rated current [A]
    40
  • Number of poles
    2
  • PKWIU
    27.12.22.0

Other technical data

  • Release characteristic
    C
  • Number of protected poles
    1
  • Rated voltage
    440 V
  • Rated impulse withstand voltage Uimp
    6 kV
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    3
  • Width in number of modular spacings
    4
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Number of poles (total)
    2
  • Rated current
    40 A
  • Rated insulation voltage Ui
    500 V
  • Voltage type
    DC
  • Over voltage category
    4
  • Additional equipment possible
    Yes
  • Built-in depth
    44 mm
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 35 mm²
