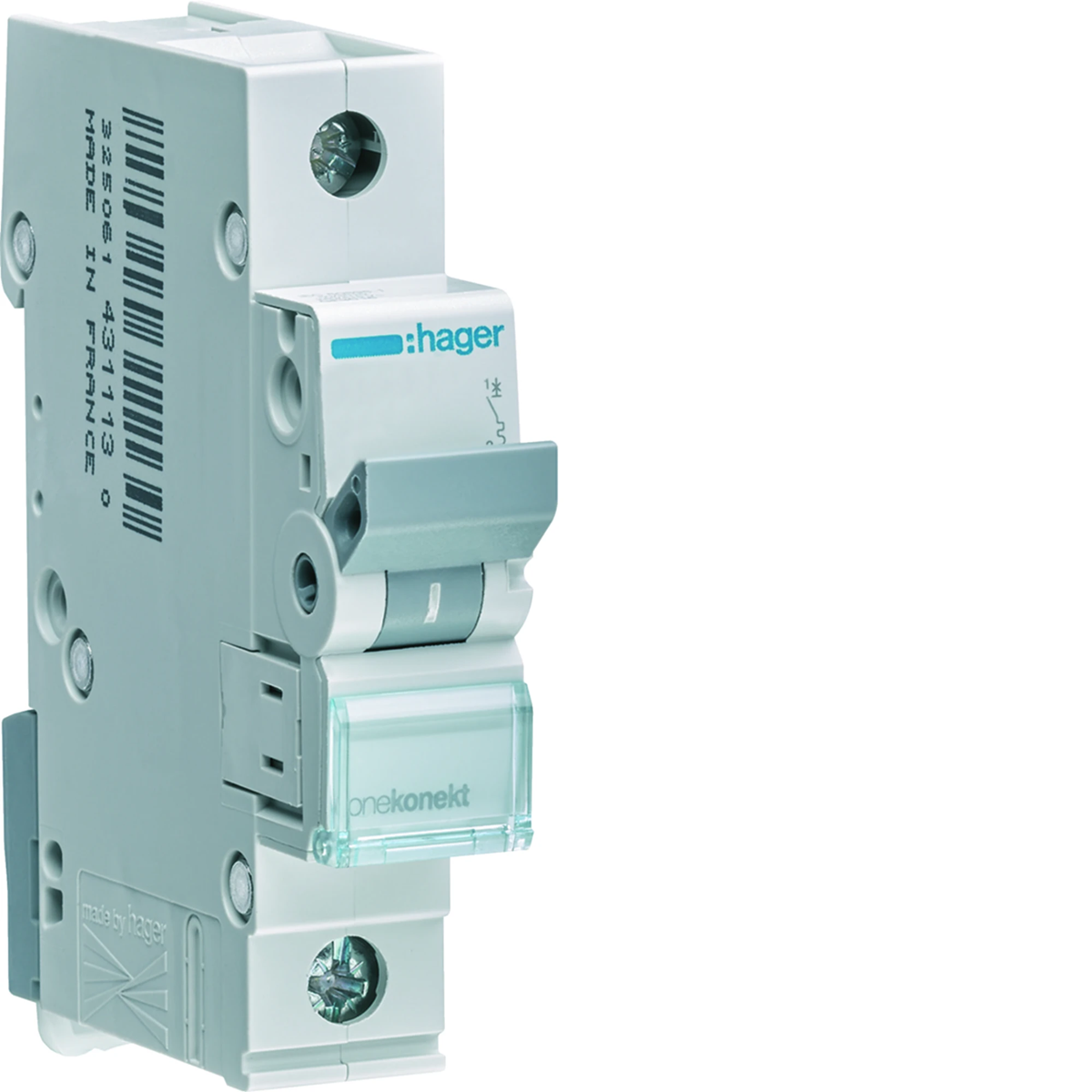

Circuit breaker 6kA C unipolar 1A MCN101E

Name: Circuit breaker 6kA C unipolar 1A
Brand: HAGER
SKU: ABC175HAGE
Price: 16.09 PLN
Availability: InStock

Indeks lokalny:

ABC175HAGE

Nr katalogowy:

MCN101E

Kod EAN:

3250614333651

Kliknij zdjęcie, aby powiększyć

Producent: HAGER

Characteristic: c

Depth [mm]: 68

Number of modules: 1

Zobacz cały opis

Cena:

16,09 €

gross / szt.

(w tym VAT 23%)

Dostępne 25 szt.

Ilość szt.

(wielokrotność:

)

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Miniature circuit breakers 0, 5 - 63 A. Type B and C. Rated short-circuit breaking capacity 6000 A
• rated short-circuit switching capacity: 6000 A, in accordance with PN-EN 60898-1,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 25 mm2, stranded up to 16 mm2,
• description field with a safety flap,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Dane techniczne

Characteristic

c
Number of modules

1
Rated voltage [V]

230
Rated current [A]

1
Height [mm]

83
Number of modules

1

Depth [mm]

68
Number of poles

1
Rated insulation voltage [V]

500
Width [mm]

17.5
Rated short-circuit breaking capacity [kA]

6
PKWIU

27.12.22.0

Pozostałe dane techniczne

Built-in depth

70 mm
Number of poles (total)

1
Rated current

1 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

No
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

C
Number of protected poles

1
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

AC
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Dane producenta

Producent

HAGER POLO Sp. z o. o.
Adres

43-100 Tychy Fabryczna 10
NIP

6460015532

Opakowania zbiorcze

Rodzaj opakowania	Karton	Pakiet	Paleta
Ilość	12 szt.	144 szt.	3456 szt.
Waga (kg)	1,484	18,248	462,952
Szerokość (m)	0,097	0,315	0,800
Długość (m)	0,079	0,242	1,118
Głębokość (m)	0,227	0,370	1,200
