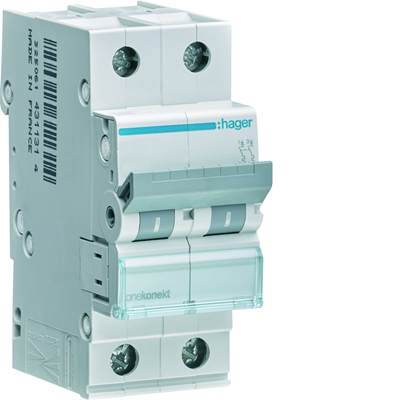

Circuit breaker 6kA C two-speed 0 5A MCN200E

Name: Circuit breaker 6kA C two-speed 0 5A
Brand: HAGER
SKU: ABC224HAGE
Price: 34.59 PLN

local index:

ABC224HAGE

Catalog No:

MCN200E

EAN code:

3250614333699

Click on the photo to enlarge

Manufacturer: HAGER

Characteristic: c

Depth [mm]: 70

Number of modules: 2

See full description

Price:

34,59 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Miniature circuit breakers 0.5 - 63 A. Type B and C. Rated short-circuit breaking capacity 6000 A
• rated short-circuit switching capacity: 6000 A, in accordance with PN-EN 60898-1,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessoriesó
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 25 mm2, strand up to 16 mm2,
• description field with a safety flap,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Technical data

Characteristic

c
Number of modules

2
Rated insulation voltage [V]

500
Width [mm]

35
Rated short-circuit breaking capacity [kA]

6
PKWIU

27.12.22.0

Depth [mm]

70
Number of poles

2
Rated current [A]

0.5
Height [mm]

83
Number of modules

2

Other technical data

Built-in depth

70 mm
Number of poles (total)

2
Rated current

0.5 A
Rated insulation voltage Ui

500 V
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

C
Number of protected poles

2
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	6 pcs.	72 pcs.	1728 pcs.
Weight (kg)	0,241	1,450	17,800	450,200
Width (m)	0,035	0,095	0,315	0,800
Length (m)	0,085	0,080	0,230	1,050
Depth (m)	0,073	0,225	0,355	1,200
