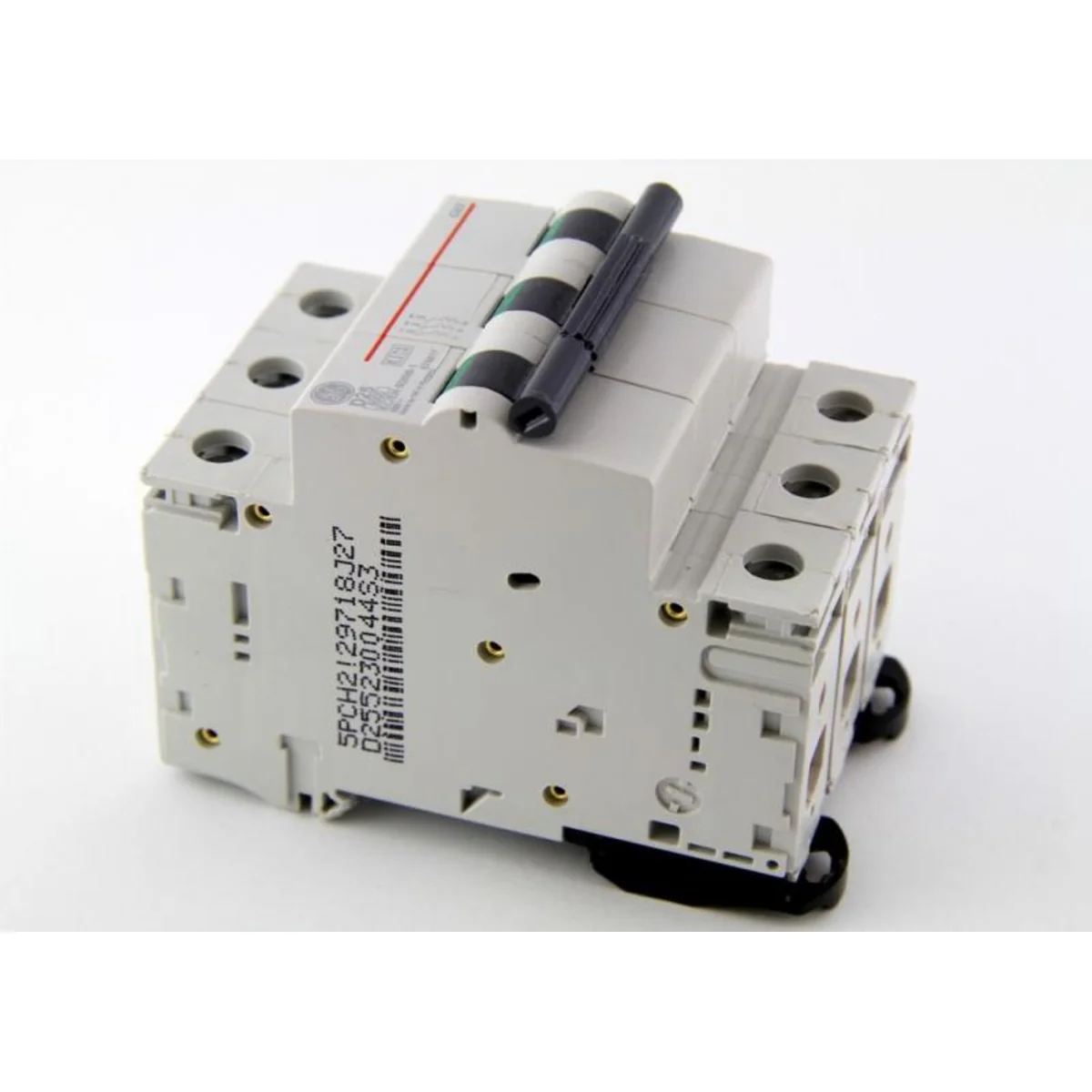

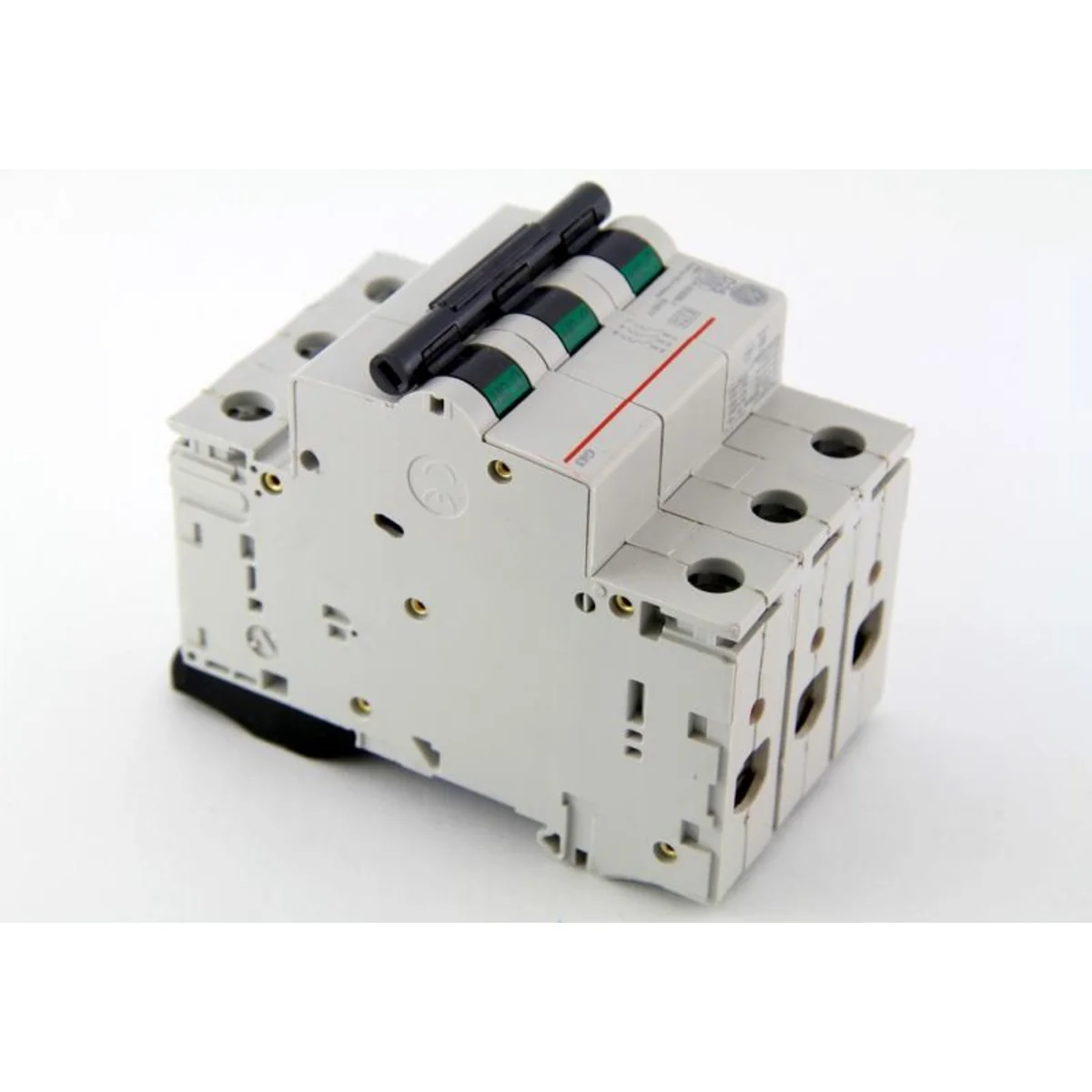

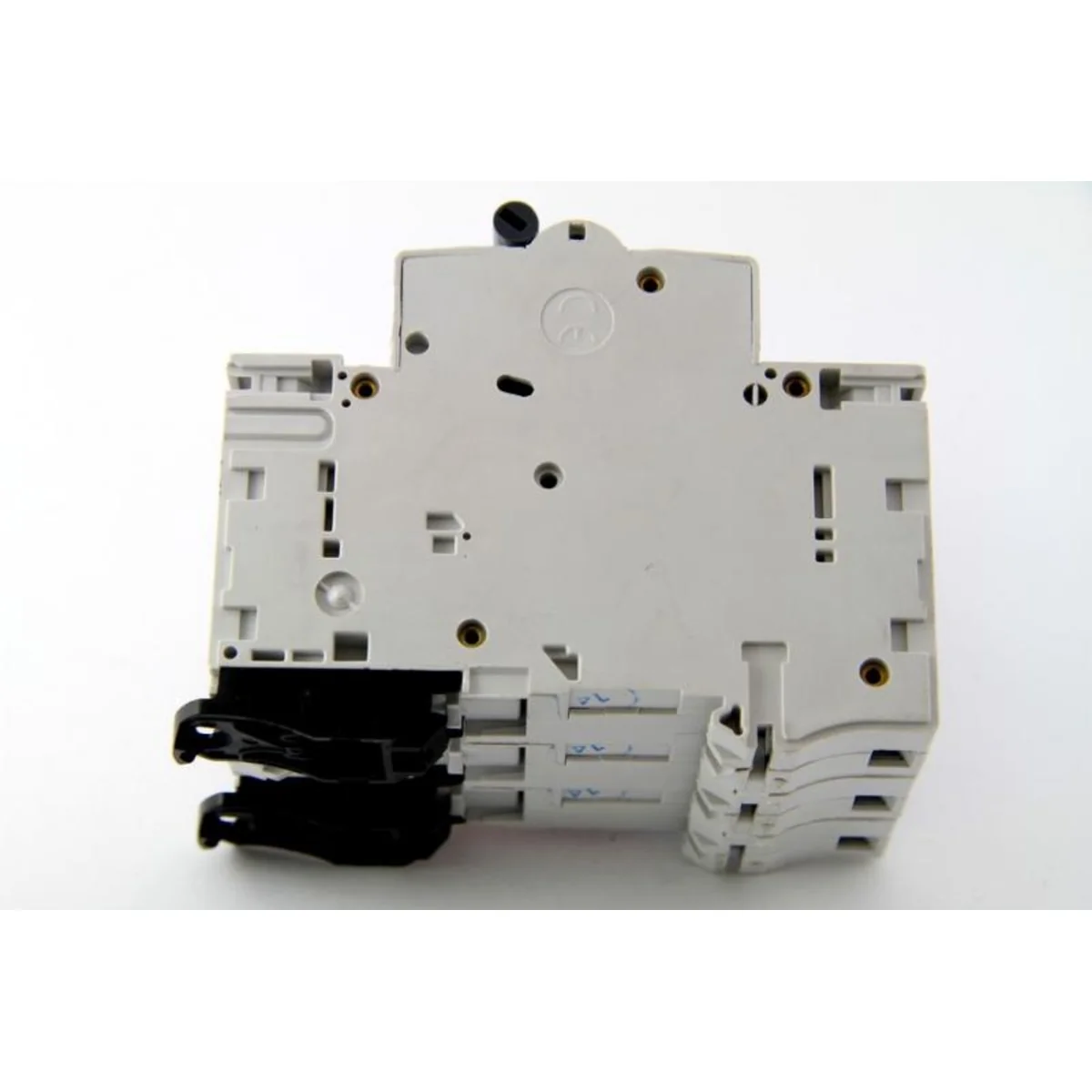

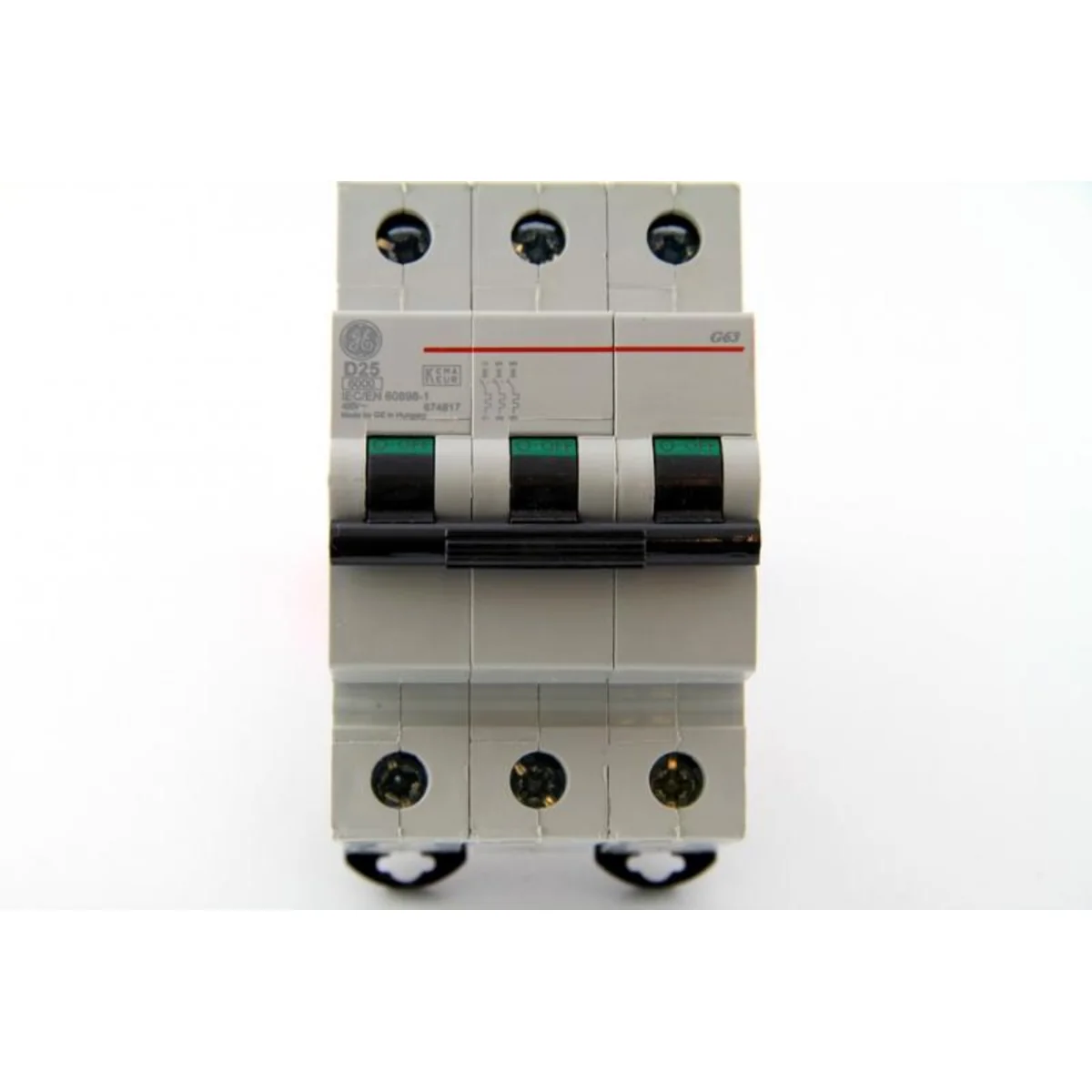

Circuit breaker 3-pole G63 D25 3P 25A 6kA 674817

Name: Circuit breaker 3-pole G63 D25 3P 25A 6kA
Brand: ABB
SKU: ABD021ABBQ
Price: 53.41 PLN
Availability: InStock

Index local:

ABD021ABBQ

Numéro de catalogue:

674817

Code EAN:

5413656748175

Cliquer sur la photo pour l'agrandir

Producteur: ABB

Characteristic: d

Number of poles: 3

Rated voltage [V]: 230

Voir la description complète

Prix:

53,41 zł

gross / pcs.

(y compris la TVA 23%)

445,08 zł gross/kg.

Accessible 9 pcs.

Quantité pcs.

(plusieurs:

1

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant

Description du produit

Circuit breaker 3-pole G63 D25 3P 25A 6kA

Release characteristic

D
Number of protected poles

3
Rated voltage

415 V
Rated impulse withstand voltage Uimp

6 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10 kA
Frequency

50 ... 60 Hz
Do instalacji podtynkowych

No
Over voltage category

3
Additional equipment possible

Yes
Built-in depth

44 mm
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Number of poles (total)

3
Rated current

25 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

20 kA
Voltage type

AC
Current limiting class

3
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

3
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

0.75 ... 25 mm²
