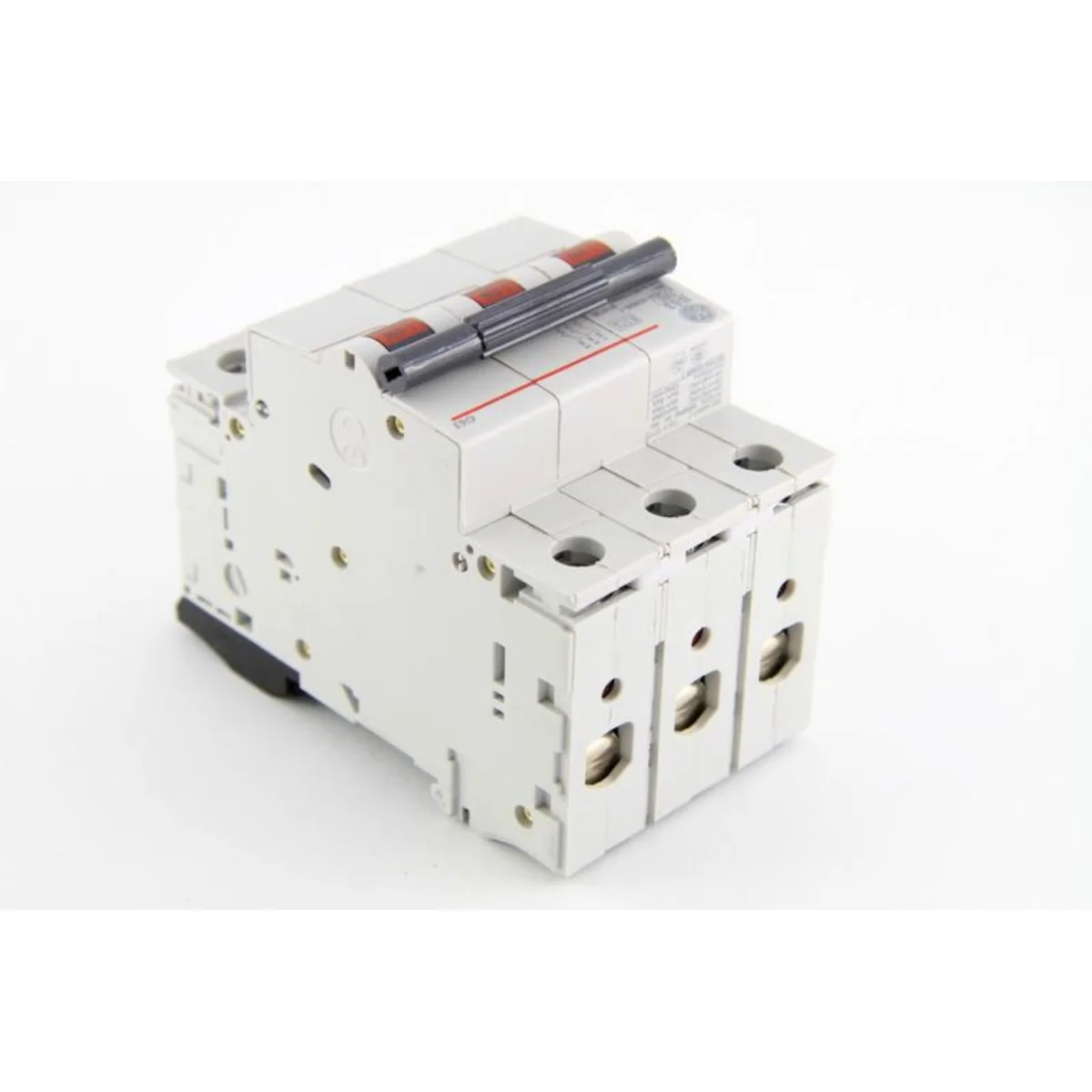

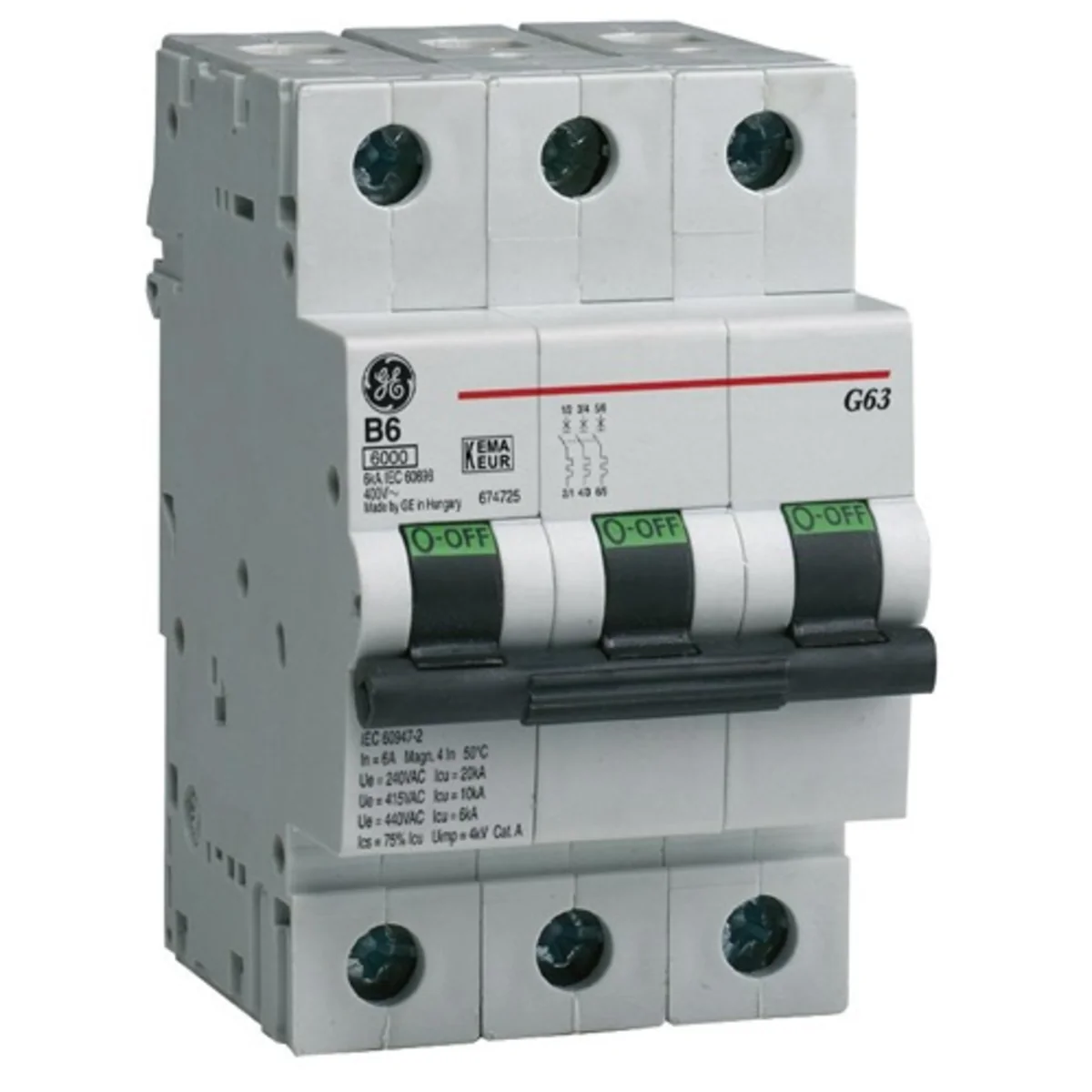

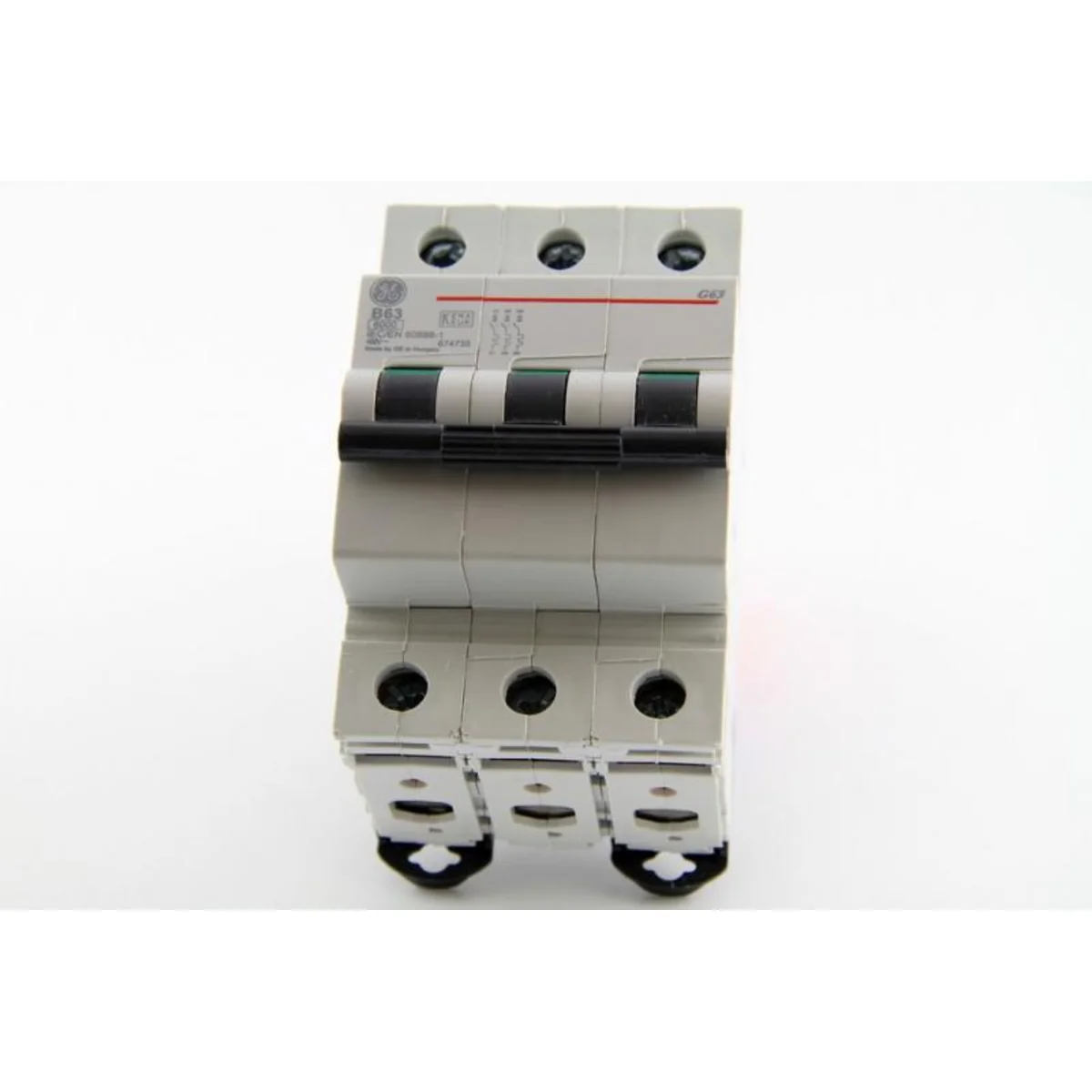

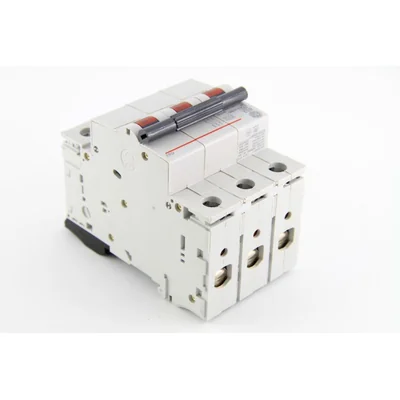

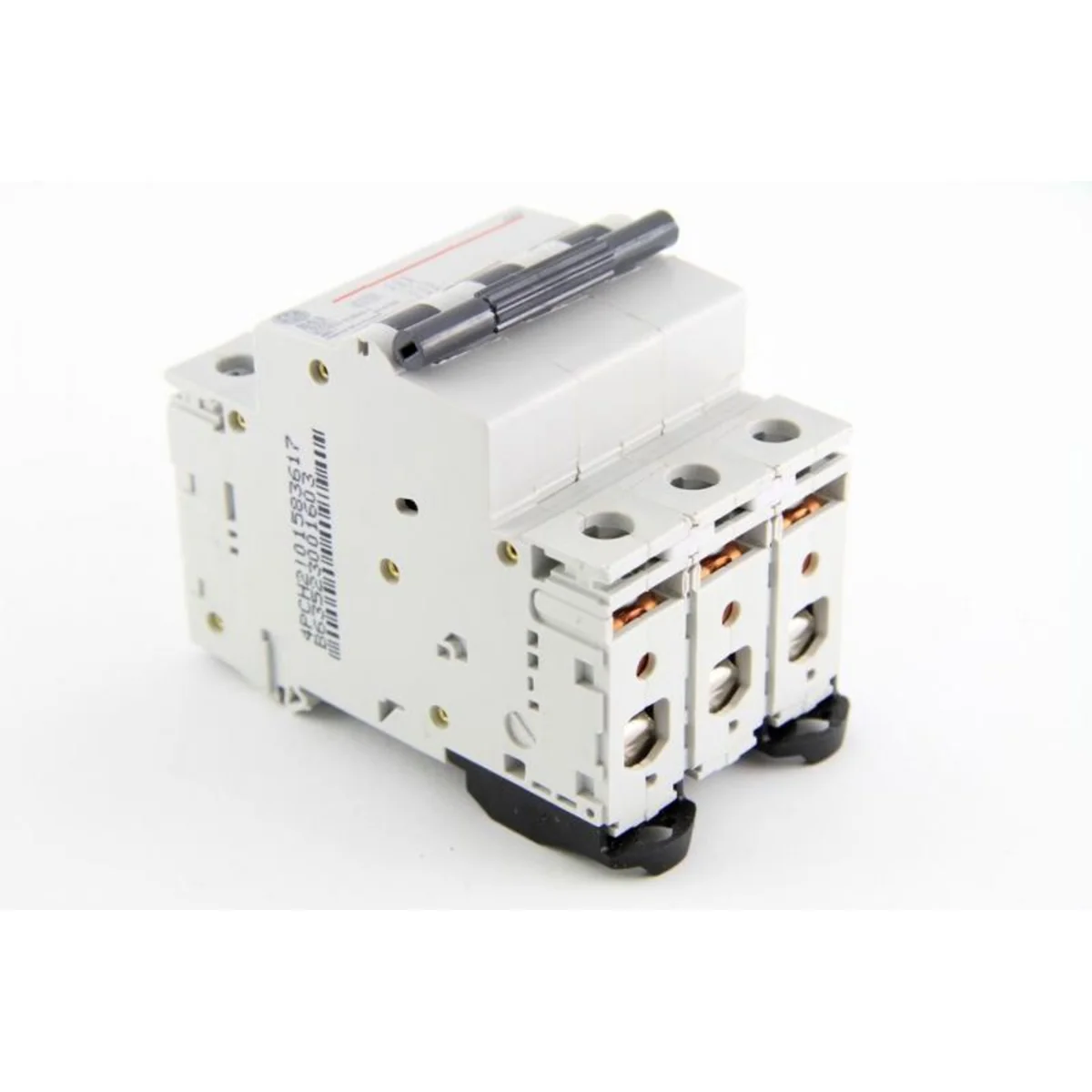

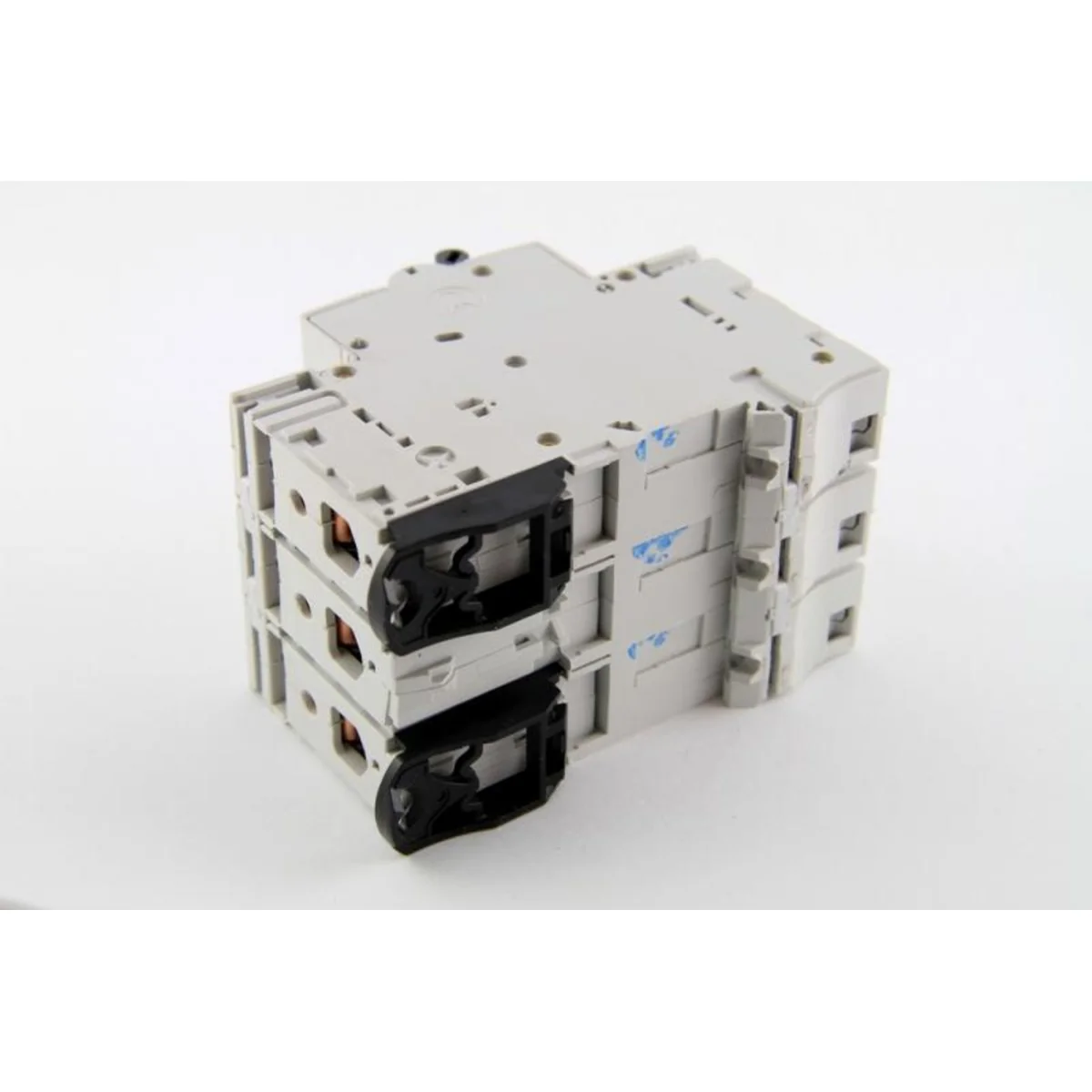

Current circuit breaker G63 B63 GE

Installation circuit breaker power overcurrent.

It is used to protect cables and receivers against overloads and short circuits in installations and devices.

Mounting on a DIN 35 mm rail.

Operating characteristics: B

Maximum current: 63 A

Rated voltage: 400 V

Breakdown current: 6000 A

Protection: IP 20

Handle sealable.

Rated frequency: 50 Hz

Release characteristic

B
Number of protected poles

3
Rated voltage

415 V
Rated impulse withstand voltage Uimp

6 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10 kA
Frequency

50 ... 60 Hz
Do instalacji podtynkowych

No
Over voltage category

3
Additional equipment possible

Yes
Built-in depth

44 mm
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Number of poles (total)

3
Rated current

63 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

20 kA
Voltage type

AC
Current limiting class

3
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

3
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

0.75 ... 25 mm²
