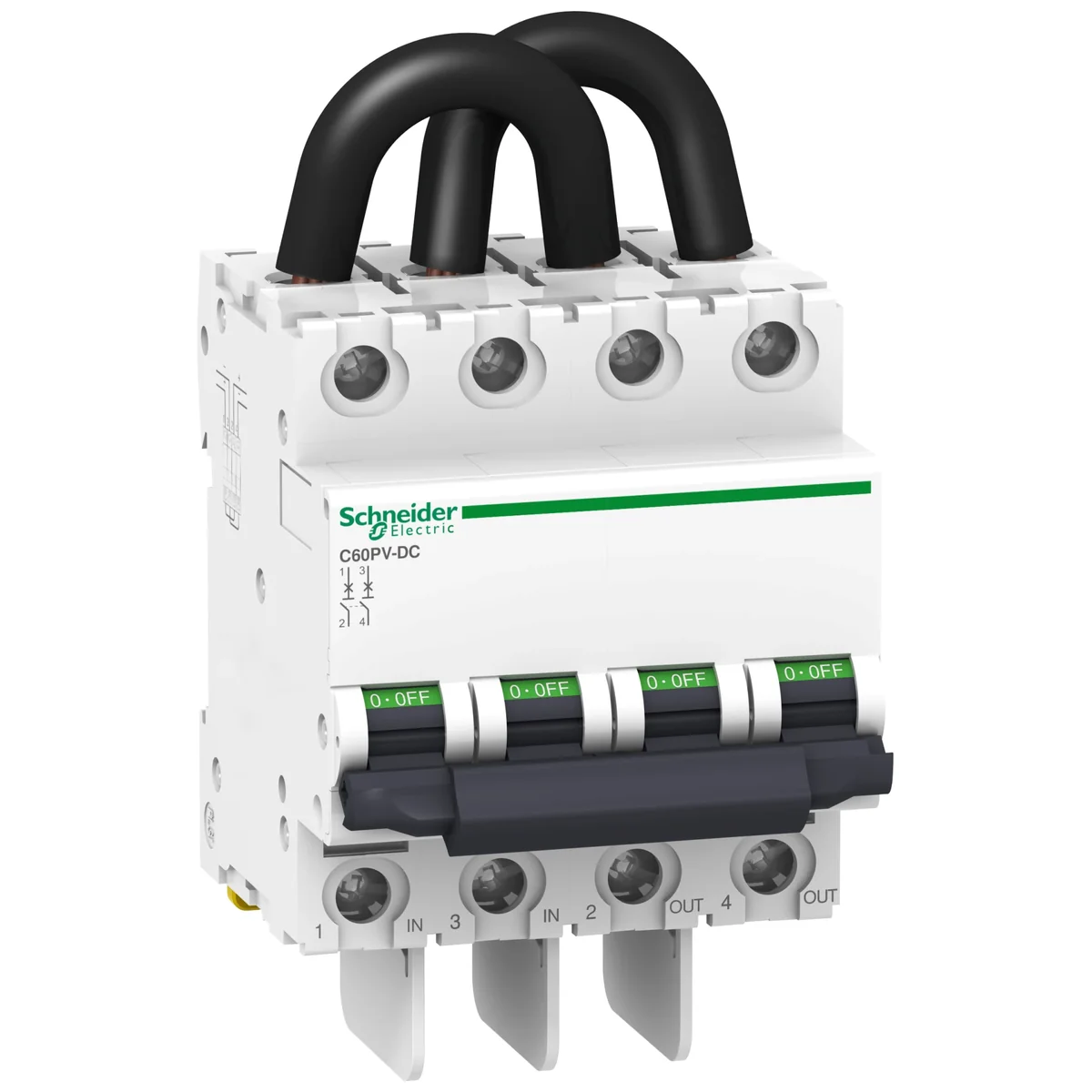

Circuit breaker 15A 2-pole A9N61659
local index:
ABN004SCHN
Catalog No:
A9N61659
EAN code:
3606480504082
Price:
51,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Circuit breaker 15A 2-pole
Technical data
-
Characteristicb
-
PKWIU27.12.22.0
-
Rated current [A]15
Other technical data
-
Release characteristicB
-
Number of protected poles2
-
Rated voltage800 V
-
Rated impulse withstand voltage Uimp6 kV
-
Frequency50 ... 50 Hz
-
Over voltage category4
-
Additional equipment possibleYes
-
Built-in depth44 mm
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section solid-core1 ... 25 mm²
-
Number of poles (total)2
-
Rated current15 A
-
Rated insulation voltage Ui1000 V
-
Voltage typeDC
-
Concurrently switching neutral conductorYes
-
Pollution degree2
-
Width in number of modular spacings4
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 16 mm²
