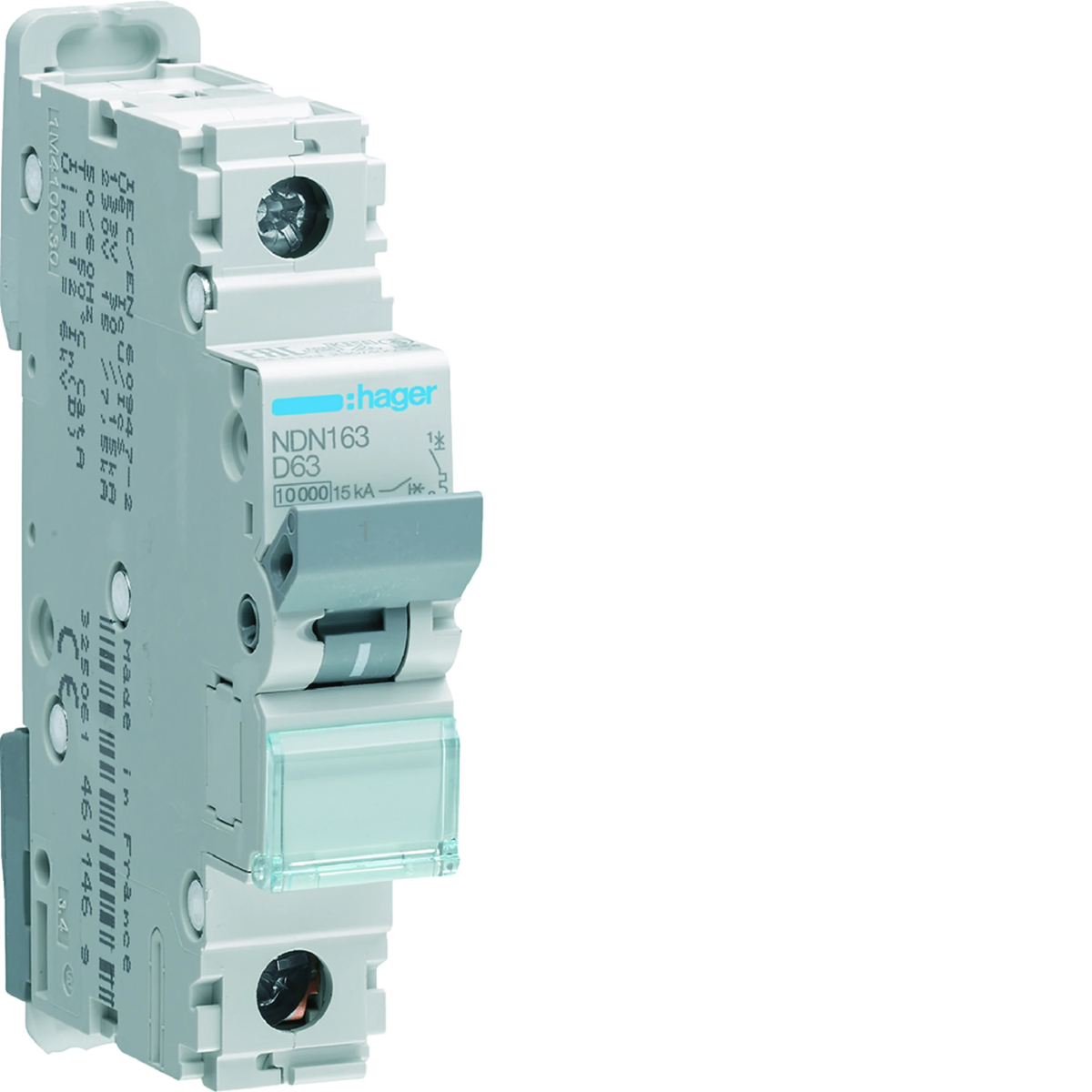

Circuit breaker 10kA D unipolar 63A NDN163

Name: Circuit breaker 10kA D unipolar 63A
Brand: HAGER
SKU: ABD045HAGE
Price: 23.30 PLN

Indice locale:

ABD045HAGE

Numero di catalogo:

NDN163

Codice EAN:

3250614611520

Clicca sulla foto per ingrandire

Produttore: HAGER

Characteristic: d

Depth [mm]: 70

Number of modules: 1

Vedi la descrizione completa

Prezzo:

23,30 €

gross / pezzi

(inclusa IVA 23%)

Consegna in 3 ore

fino a 10 settimane (giorni lavorativi)

Raccolta in 1h

Quantità pezzi

(multiplo:

)

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Imballaggio sfuso

Descrizione del prodotto

Miniature circuit breakers 0.5 - 63 A. Type B, C and D. Rated short-circuit breaking capacity 10000 A
• rated ultimate short-circuit breaking capacity (Icu): 15 kA, in accordance with PN-EN 60947-2,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories, including insulating barriers between poles,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 35 mm2, strand up to 25 mm2,
• description field with a safety flap,
• top and bottom openable mounting clips,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Dati tecnici

Characteristic

d
Number of modules

1
Rated voltage [V]

230
Rated current [A]

63
Width [mm]

17.5
Rated short-circuit breaking capacity [kA]

10
PKWIU

27.12.22.0

Depth [mm]

70
Number of poles

1
Rated insulation voltage [V]

500
Power dissipation [W]

6.1
Height [mm]

83
Number of modules

1

Altri dati tecnici

Built-in depth

70 mm
Number of poles (total)

1
Rated current

63 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Release characteristic

D
Number of protected poles

1
Rated voltage

400 V
Rated impulse withstand voltage Uimp

6 kV
Voltage type

AC
Frequency

50 ... 60 Hz
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Imballaggio sfuso

Una specie di pacchetto		Karton	Pakiet	Paleta
Quantità	1 pezzi	12 pezzi	144 pezzi	3456 pezzi
Peso (kg)	0,116	1,483	18,236	462,664
Larghezza (m)	0,018	0,097	0,318	0,800
Lunghezza (m)	0,087	0,082	0,239	1,106
Profondità (m)	0,074	0,226	0,370	1,200
