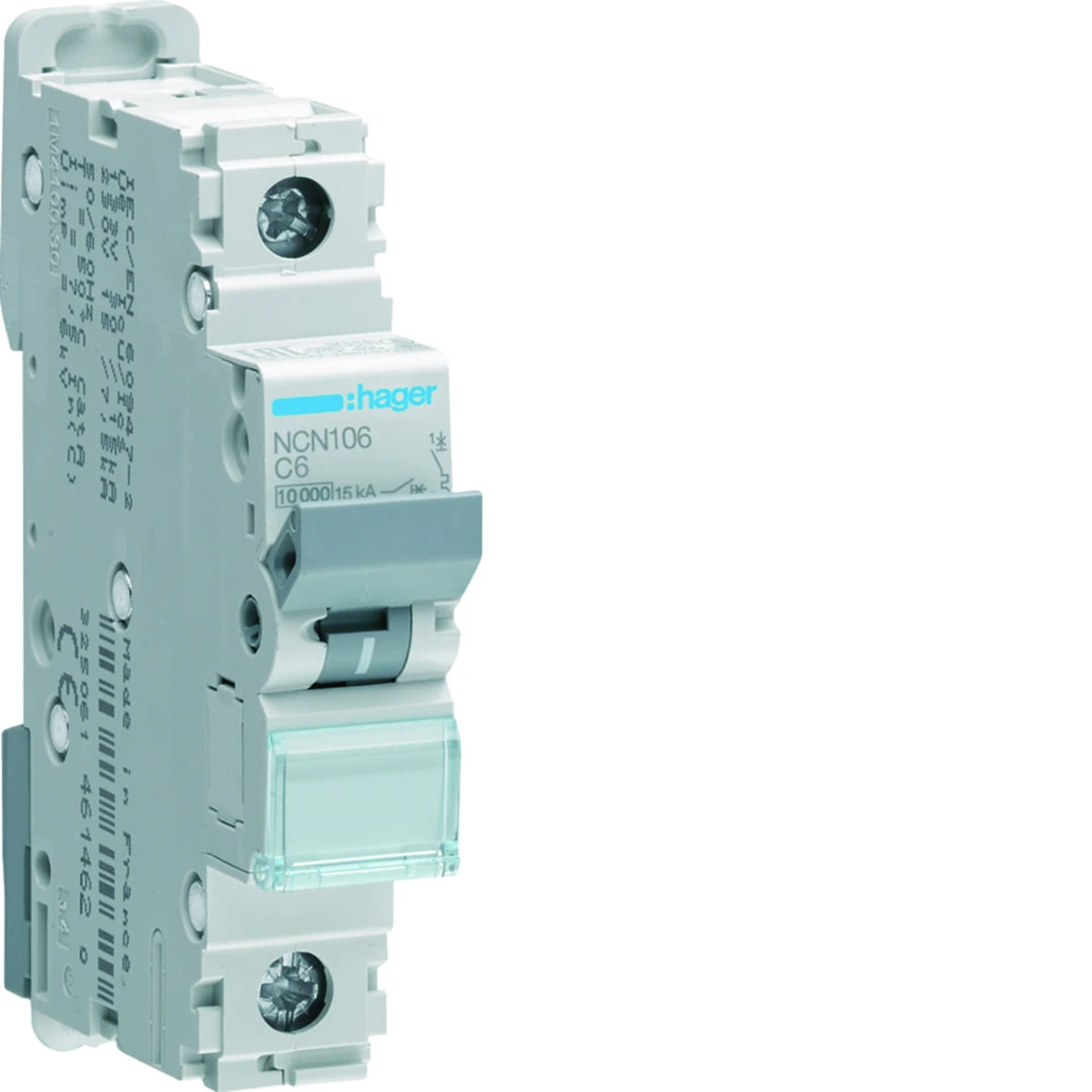

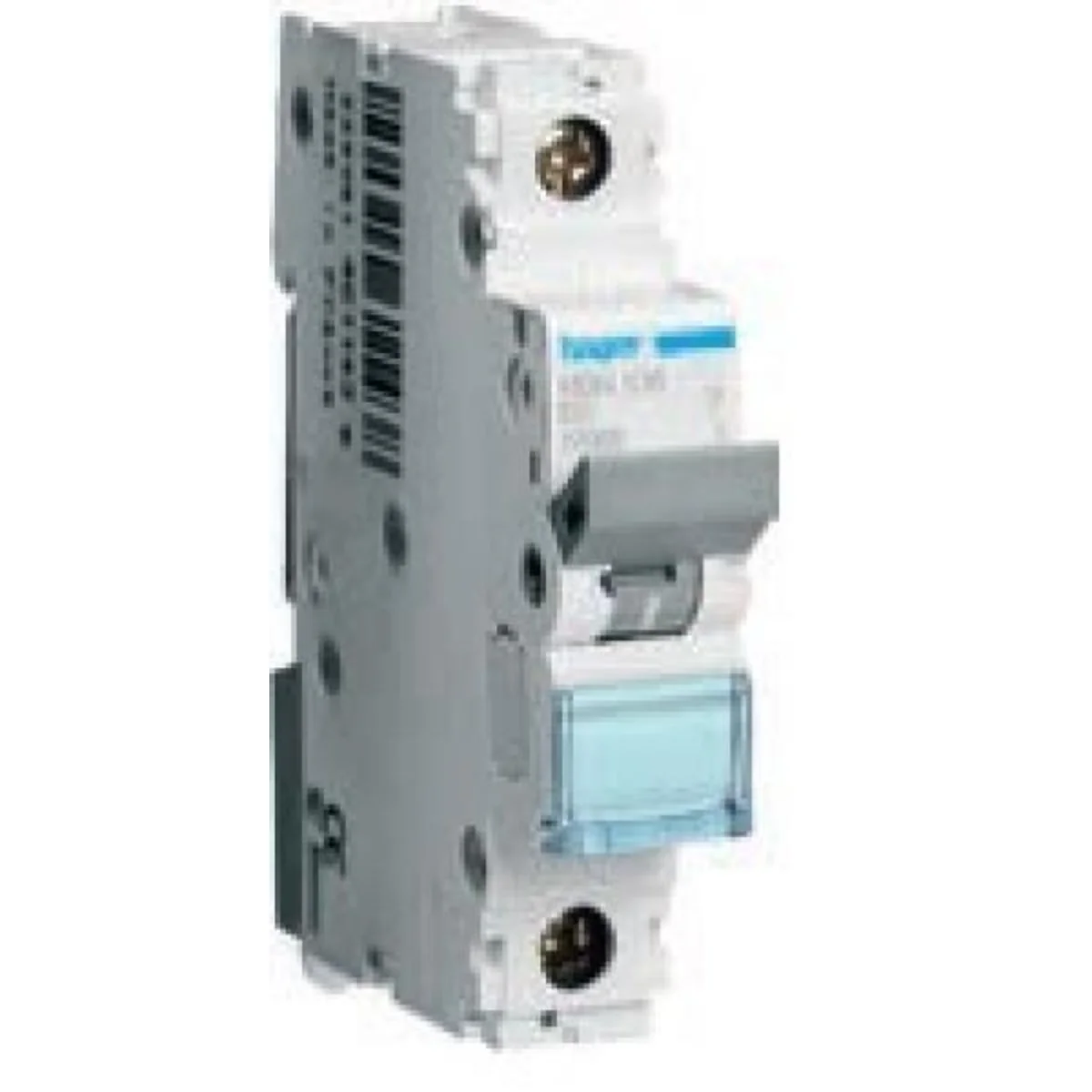

Circuit breaker 10kA C unipolar 6A NCN106

Name: Circuit breaker 10kA C unipolar 6A
Brand: HAGER
SKU: ABC166HAGE
Price: 78.47 PLN

Indeks lokalny:

ABC166HAGE

Nr katalogowy:

NCN106

Kod EAN:

3250614614590

Kliknij zdjęcie, aby powiększyć

Producent: HAGER

Characteristic: c

Depth [mm]: 70

Number of modules: 1

Zobacz cały opis

Cena:

78,47 zł

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 10 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

)

Dodaj do zapytania ofertowego

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Miniature circuit breakers 80 - 100 A. Type B, C and D Rated short-circuit breaking capacity 10000 A
• rated ultimate short-circuit breaking capacity (Icu): 15 kA, in accordance with PN-EN 60947-2,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories, including insulating barriers between poles,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 35 mm2, strand up to 25 mm2,
• description field with a safety flap,
• top and bottom openable mounting clips,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Dane techniczne

Characteristic

c
Number of modules

1
Rated voltage [V]

230
Power dissipation [W]

1.3
Height [mm]

83
Number of modules

1

Depth [mm]

70
Number of poles

1
Rated current [A]

16
Width [mm]

17.5
Rated short-circuit breaking capacity [kA]

10
PKWIU

27.12.22.0

Pozostałe dane techniczne

Built-in depth

70 mm
Number of poles (total)

1
Rated current

6 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

C
Number of protected poles

1
Rated voltage

400 V
Rated impulse withstand voltage Uimp

6 kV
Voltage type

AC
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Dane producenta

Producent

Hager Electro S.A.S.
Adres

FR 67215 Obernai 123 boulevard d’Europe Francja
Email

wsparcie.klienta@hager.com

Opakowania zbiorcze

Rodzaj opakowania	Karton	Pakiet	Paleta
Ilość	12 szt.	144 szt.	3456 szt.
Waga (kg)	1,330	15,980	383,610
Szerokość (m)	0,090	0,310	0,800
Długość (m)	0,080	0,210	1,050
Głębokość (m)	0,220	0,360	1,200
