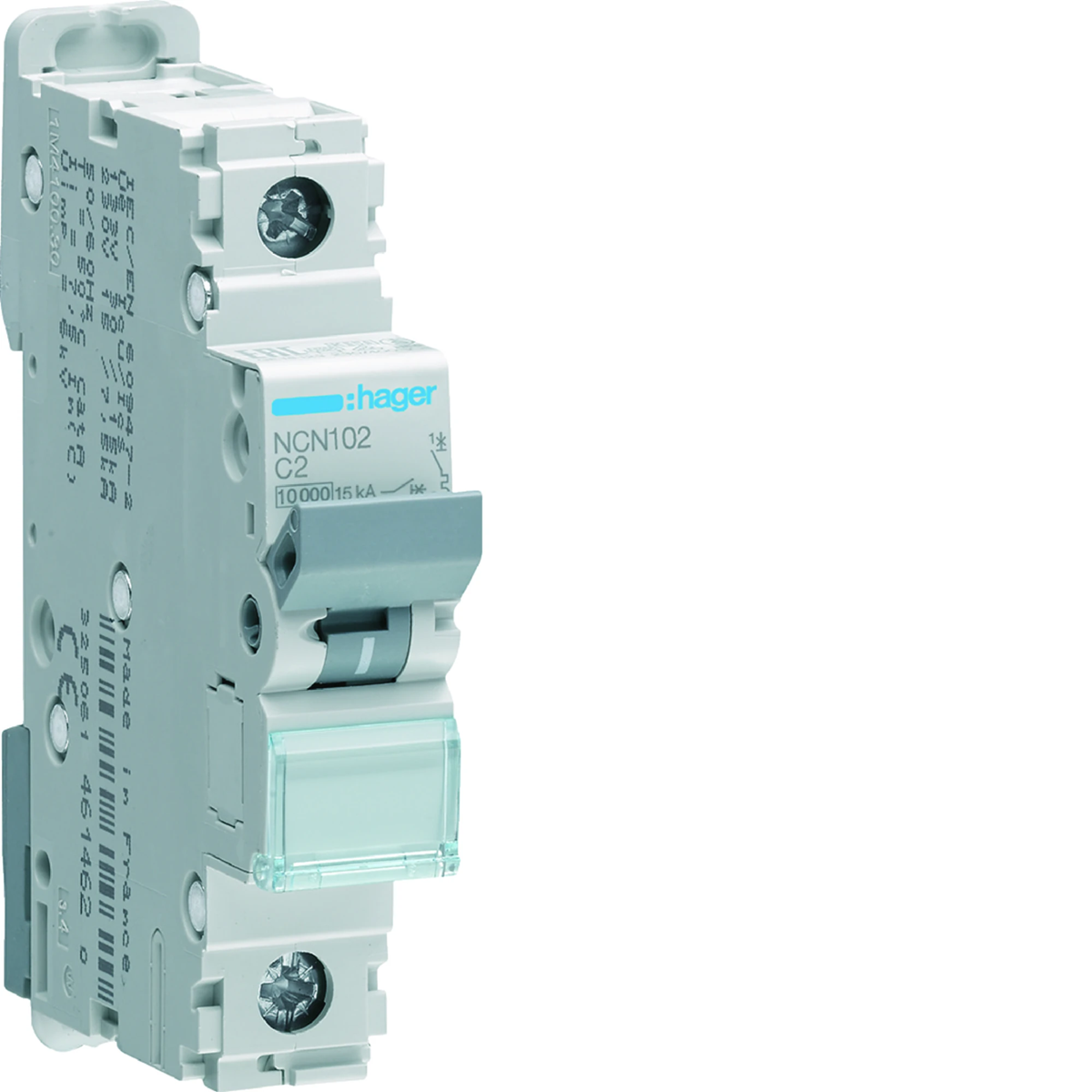

Circuit breaker 10kA C unipolar 2A NCN102
local index:
ABC229HAGE
Catalog No:
NCN102
EAN code:
3250614614569
Price:
36,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Circuit breaker 10kA C unipolar 2A
Technical data
-
Characteristicc
-
Number of modules1
-
Rated voltage [V]230
-
Power dissipation [W]2
-
Height [mm]83
-
Number of modules1
-
Depth [mm]70
-
Number of poles1
-
Rated current [A]2
-
Width [mm]17.5
-
Rated short-circuit breaking capacity [kA]10
-
PKWIU27.12.22.0
Other technical data
-
Built-in depth70 mm
-
Number of poles (total)1
-
Rated current2 A
-
Rated insulation voltage Ui500 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15 kA
-
Current limiting class3
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Release characteristicC
-
Number of protected poles1
-
Rated voltage400 V
-
Rated impulse withstand voltage Uimp6 kV
-
Voltage typeAC
-
Frequency50 ... 60 Hz
-
Concurrently switching neutral conductorNo
-
Pollution degree2
-
Width in number of modular spacings1
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section solid-core1 ... 35 mm²
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 12 pcs. | 144 pcs. | 3456 pcs. |
| Weight (kg) | 0,117 | 1,425 | 17,480 | 452,454 |
| Width (m) | 0,018 | 0,100 | 0,315 | 0,800 |
| Length (m) | 0,085 | 0,085 | 0,210 | 1,050 |
| Depth (m) | 0,071 | 0,230 | 0,360 | 1,200 |
