Descripción del producto

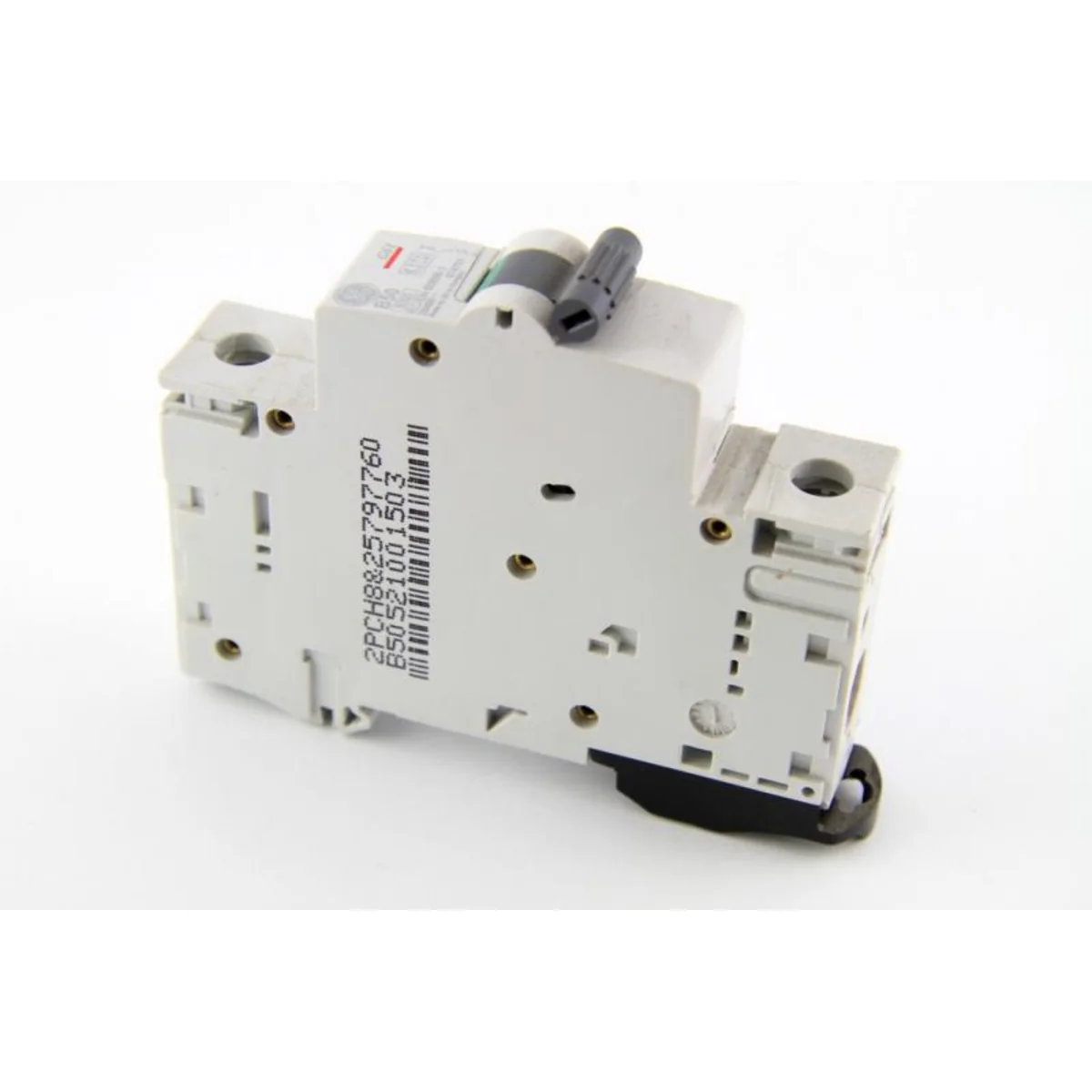

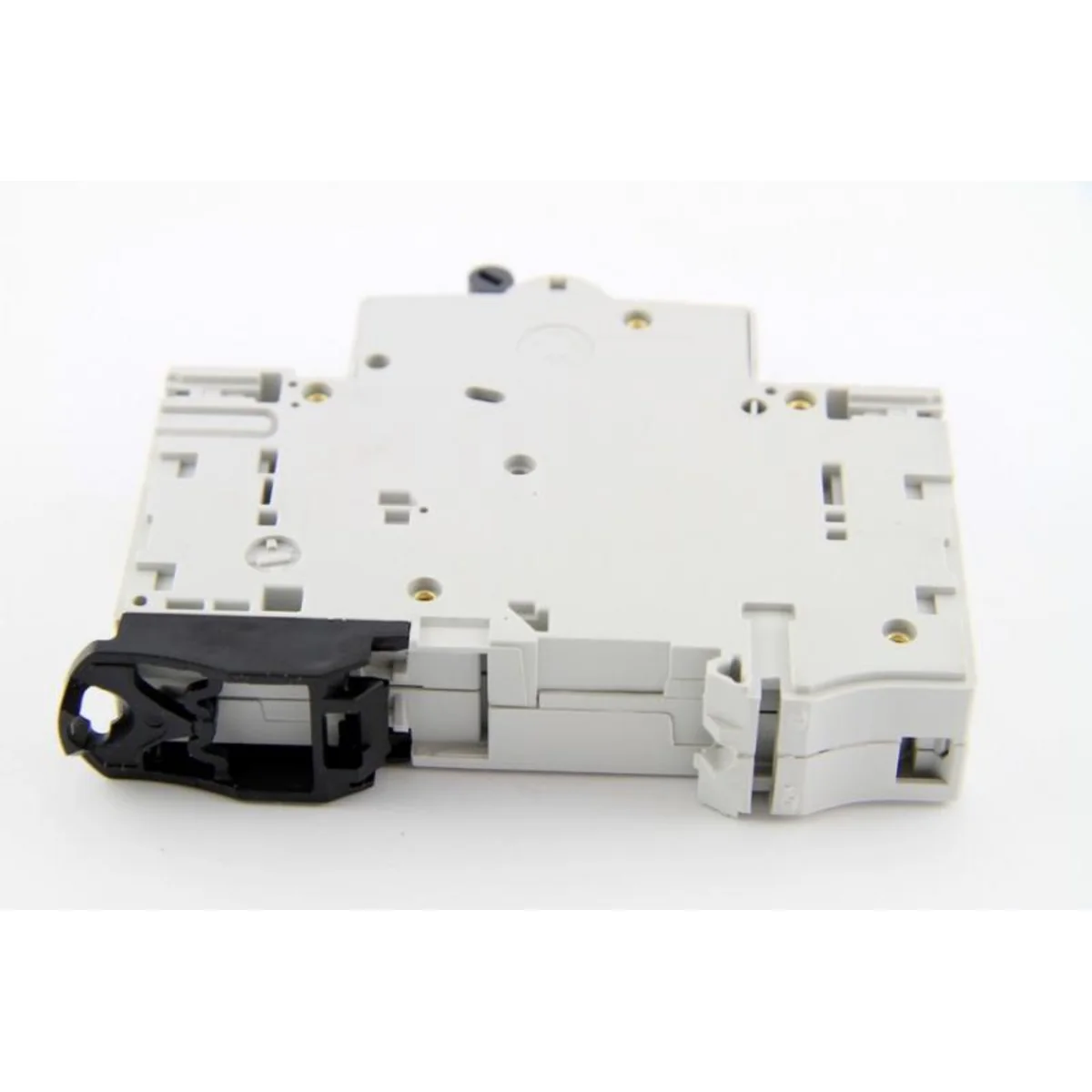

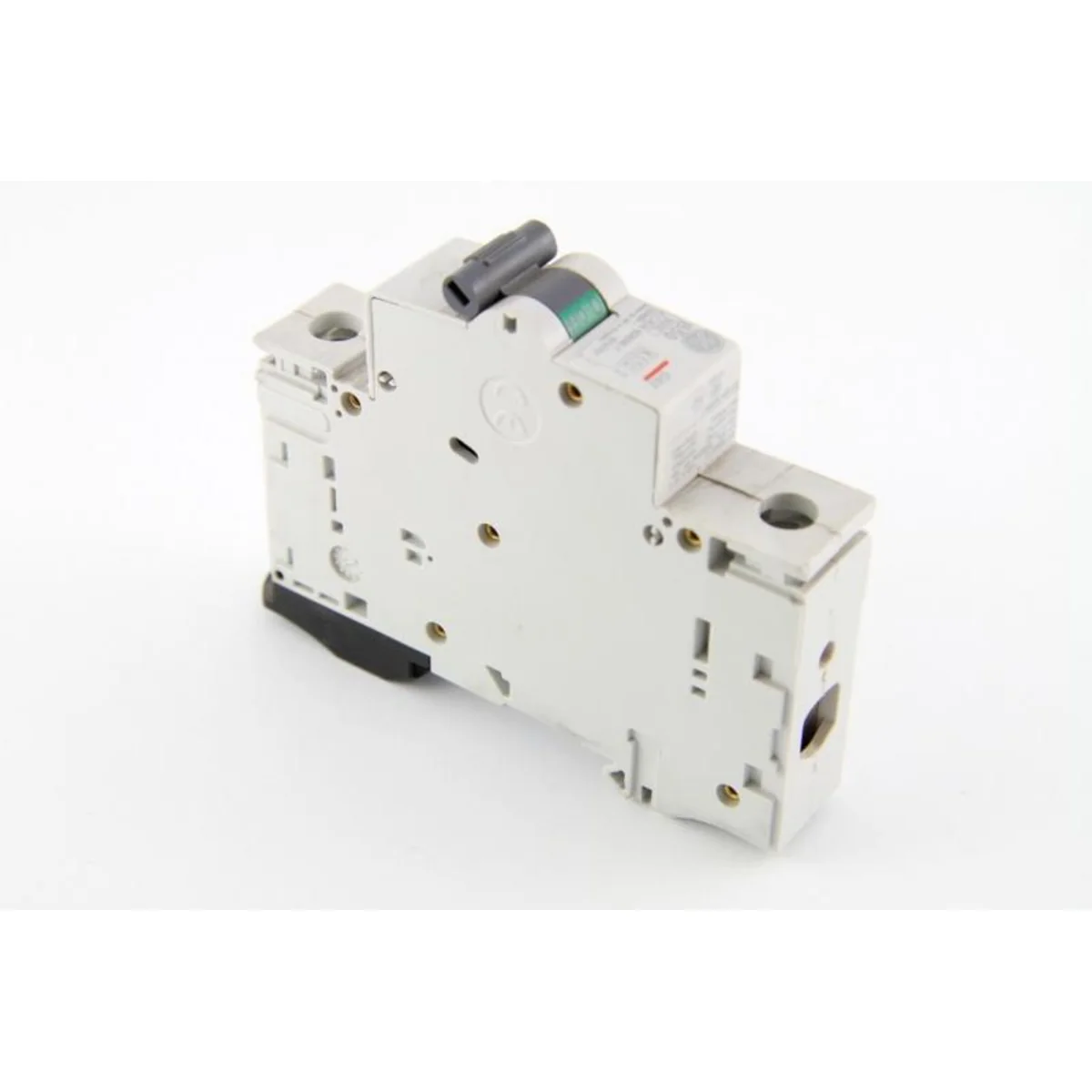

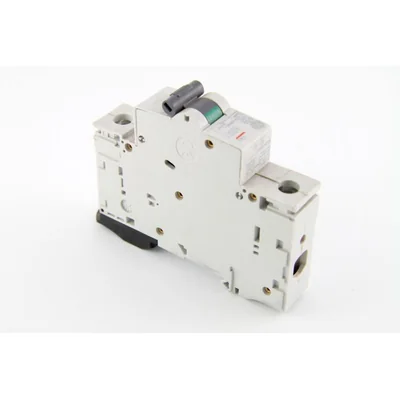

Current circuit breaker G61 B50 GE

Installation circuit breaker overcurrent single phase.

It is used to protect cables and receivers against overloads and short circuits in installations and devices.

Mounting on DIN 35 mm rail.

Operation characteristics: B

Maximum current: 6 A

< font face="Verdana, sans-serif">Rated voltage: 230 V

Breakdown current: 6000 A

Protection: IP 20

Sealable lever.< /font>

Rated frequency: 50Hz

Release characteristic

B
Number of protected poles

1
Rated voltage

415 V
Rated impulse withstand voltage Uimp

6 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

3 kA
Frequency

50 ... 60 Hz
Do instalacji podtynkowych

No
Over voltage category

3
Additional equipment possible

Yes
Built-in depth

44 mm
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Number of poles (total)

1
Rated current

50 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10 kA
Voltage type

AC
Current limiting class

3
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

0.75 ... 25 mm²
