CH14UQ/32A/690 ultra-fast fuse-link 002635015

Name: CH14UQ/32A/690 ultra-fast fuse-link
Brand: ETI POLAM
SKU: ABM726ETIP
Price: 8.01 PLN

local index:

ABM726ETIP

Catalog No:

002635015

EAN code:

3838895362555

Click on the photo to enlarge

Manufacturer: ETI POLAM

Characteristic: aR

Rated current [A]: 32

Weight [g]: 22.5

See full description

Price:

8,01 €

gross / pcs.

(including VAT 23%)

356,00 € gross/kg.

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

System C fuse links are used in VLC, PCF or EFD fuse switch disconnectors and in EFH fuse bases. The rated power losses of the fuse links must not exceed the allowable power loss values for a given disconnector or base.

Technical data

Characteristic

aR
Weight [g]

22.5
Rated short-circuit capacity [kA]

200

Rated current [A]

32
Application

System C fuse links are used in VLC or PCF fuse switch disconnectors.
PKWIU

27.12.21.0

Other technical data

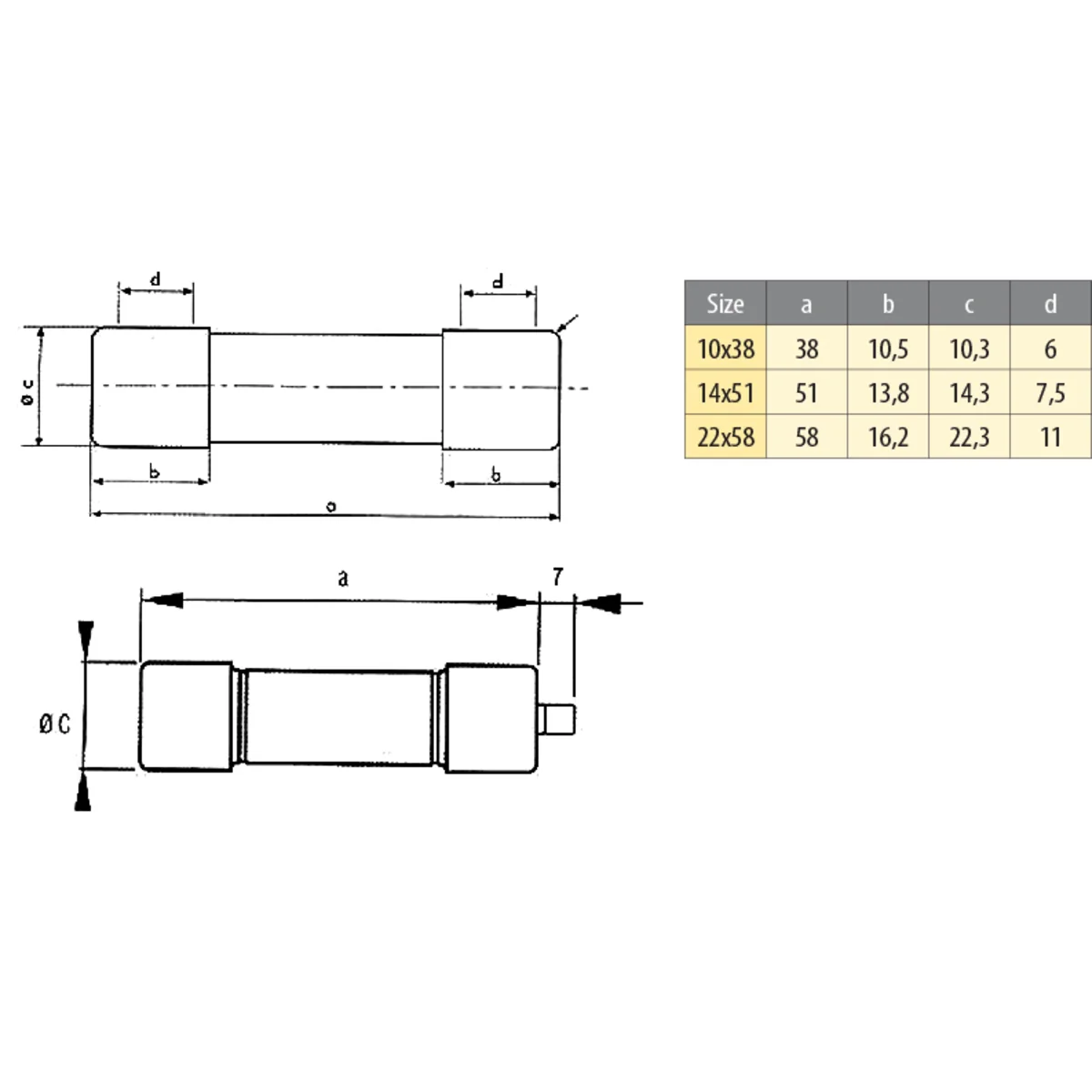

Size

14x51 mm

Bulk packaging

A kind of package	Pudełko	Pudełko
Quantity	1 pcs.	10 pcs.
Weight (kg)	0,095	-
Volume (m3)	0,000	-
Width (m)	0,055	-
Length (m)	0,083	-
Depth (m)	0,016	-
