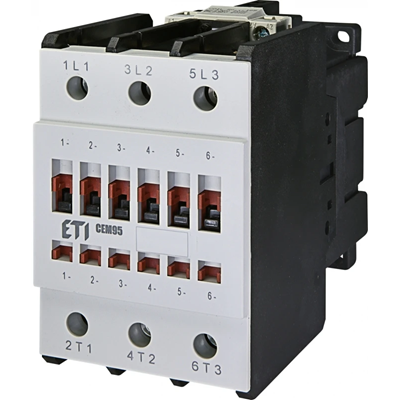

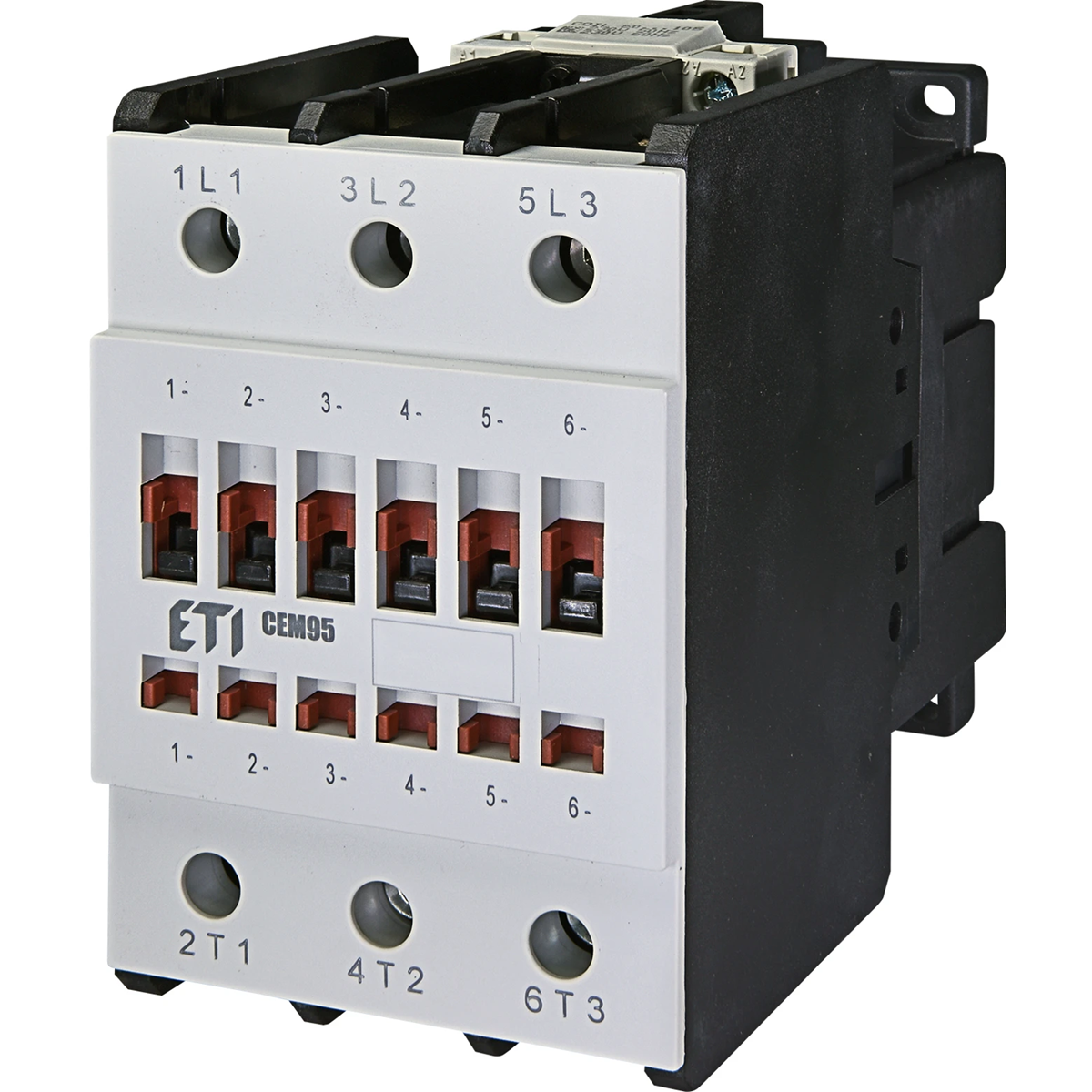

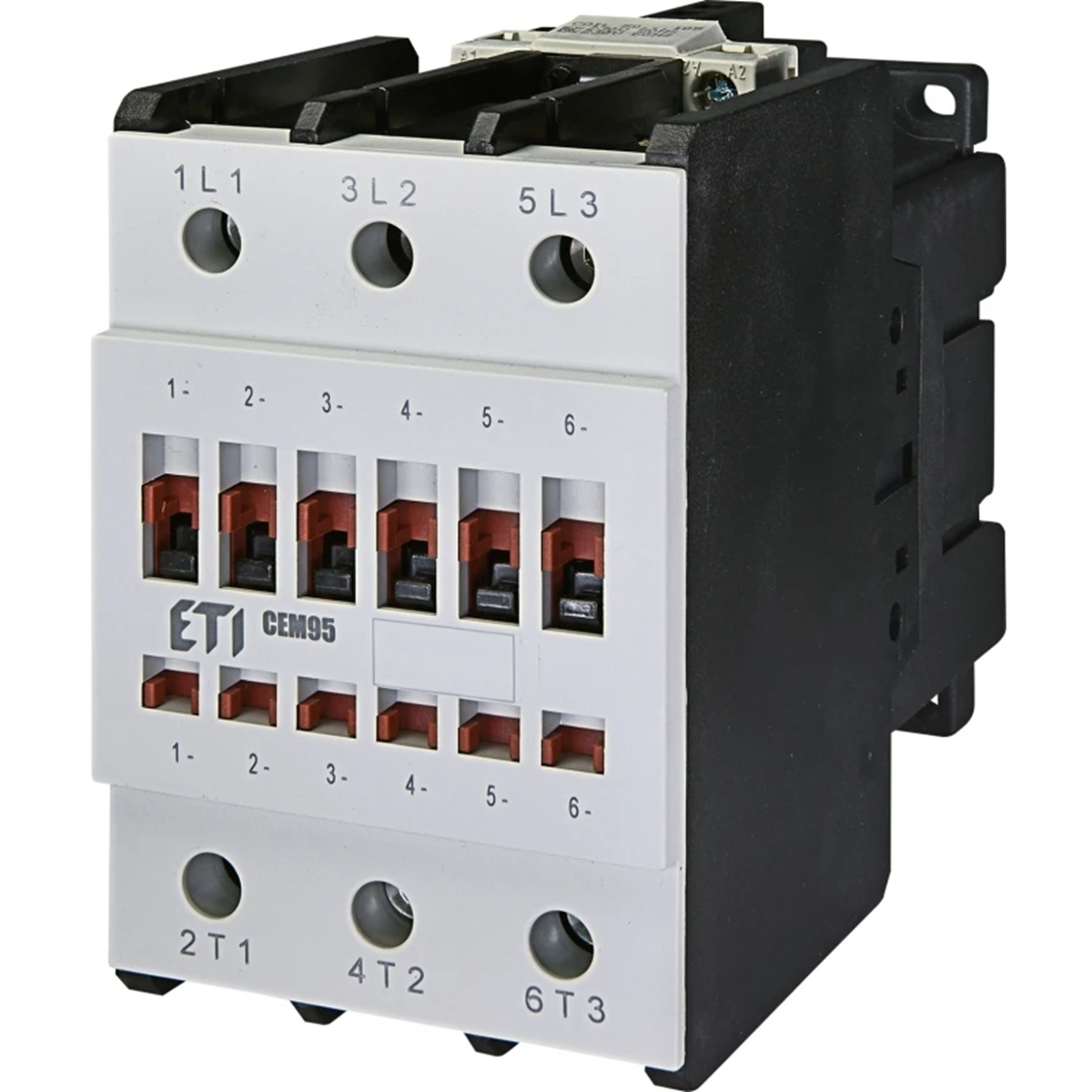

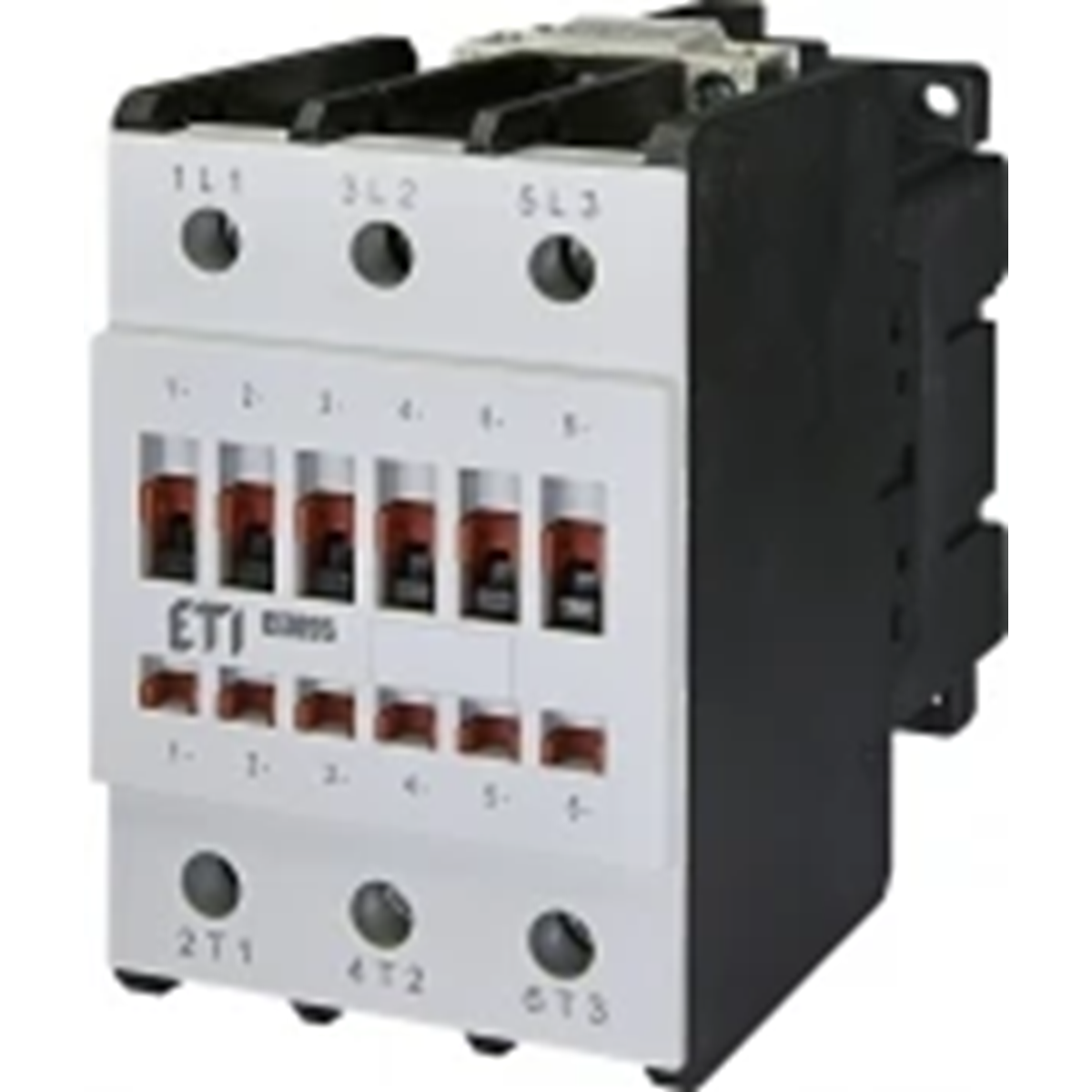

CEM95.00-24V-50/60Hz air contactor 004651100
local index:
ATA042ETIP
Catalog No:
004651100
EAN code:
7890355108932
Price:
173,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
These contactors are used for remote switching on and off of electric motors and other electricity receivers with a power of up to 160 kW (for U=400V cat. AC3).
Advantages:
< ul>Technical data
-
Number of poles3
-
Coil voltage [V]24
-
Power [kW]45
-
PKWIU27.12.23.0
Other technical data
-
Rated control supply voltage AC 50 Hz24 ... 24 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V95 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally open contacts as main contact3
-
Rated control supply voltage AC 60 Hz24 ... 24 V
-
Rated operation current Ie at AC-1, 400 V140 A
-
Rated operation power at AC-3, 400 V45 kW
-
Number of auxiliary contacts as normally open contact0
-
Type of electrical connection of main circuitFrame clamp
Manufacturer details
-
ManufacturerETI-POLAM Sp. z o.o.
-
Address06-100 Pułtusk Jana Pawła II 18
-
E-mail
-
Tax identification number5681370113
-
GLN5909000467408
