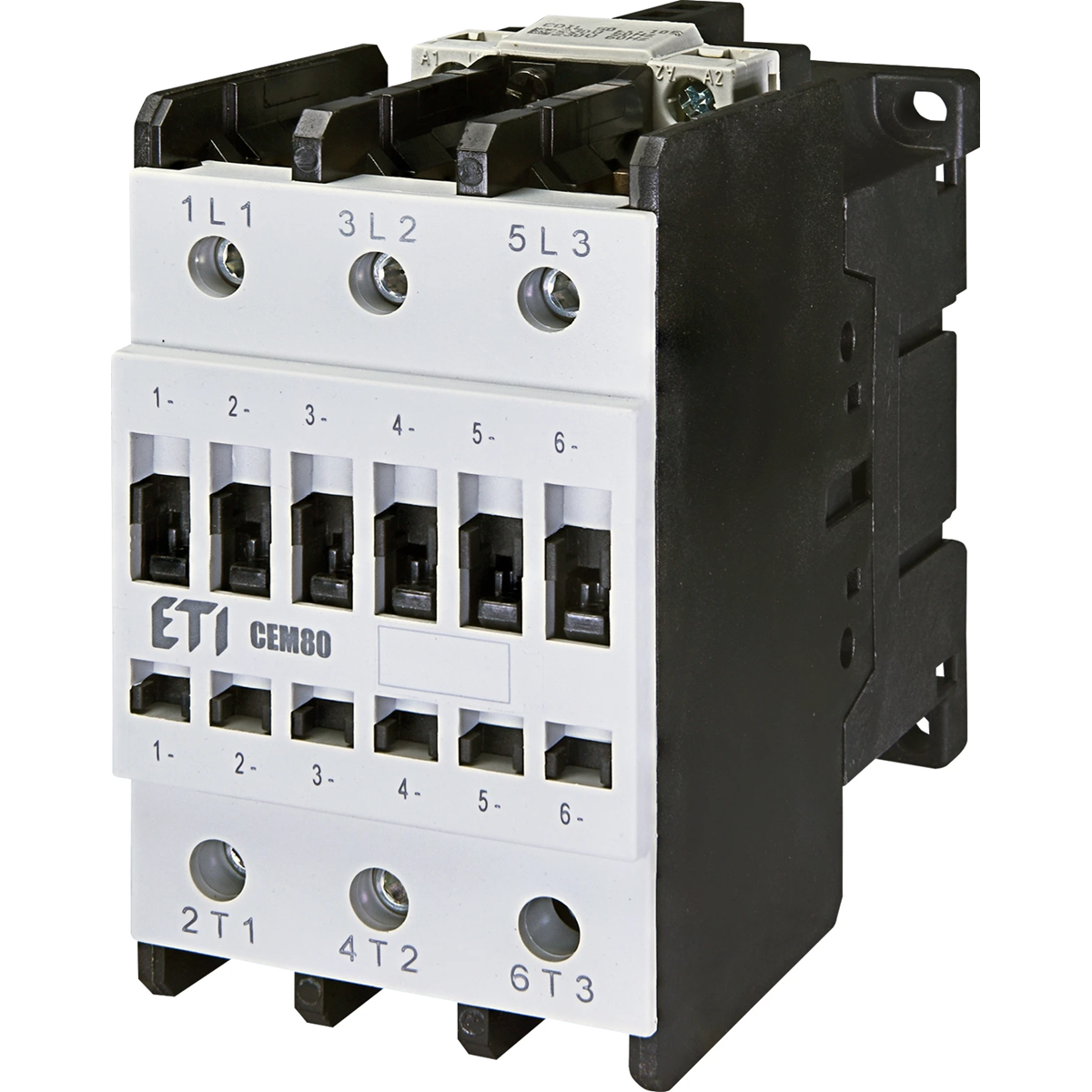

CEM80.00-230-50/60Hz air contactor 004650103

local index:
ATA052ETIP
Catalog No:
004650103
EAN code:
7890355108826
Manufacturer: ETI POLAM
Number of poles: 3
Rated insulation voltage [V]: 1000
Working temperature [°C]: from -25 to +55
Price:
159,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

These contactors are used for remote switching on and off of electric motors and other electric energy receivers up to 160 kW (for U=400V cat. AC3).

Advantages:

< ul>
  •  possibility of attaching auxiliary contacts, mechanical interlock and surge arresters,
  •  mounting on a TH35 rail or with screws,
  •   ;very good switching parameters, high mechanical and electrical durability,
  •  universal auxiliary contacts suitable for all contactors.
  • Technical data

    • Number of poles
      3
    • Working temperature [°C]
      from -25 to +55
    • Compliance with standards
      IEC/EN 60 947, DIN VDE 0660, UL, CSA
    • Rated insulation voltage [V]
      1000
    • Type
      CEM80.00-230-50/60Hz
    • PKWIU
      27.12.23.0

    Other technical data

    • Rated control supply voltage AC 50 Hz
      230 ... 230 V
    • Voltage type for actuating
      AC
    • Rated operation current Ie at AC-3, 400 V
      80 A
    • Modular version
      No
    • Number of auxiliary contacts as normally closed contact
      0
    • Number of normally open contacts as main contact
      3
    • Rated control supply voltage AC 60 Hz
      230 ... 230 V
    • Rated operation current Ie at AC-1, 400 V
      110 A
    • Rated operation power at AC-3, 400 V
      37 kW
    • Number of auxiliary contacts as normally open contact
      0
    • Type of electrical connection of main circuit
      Frame clamp
